Description

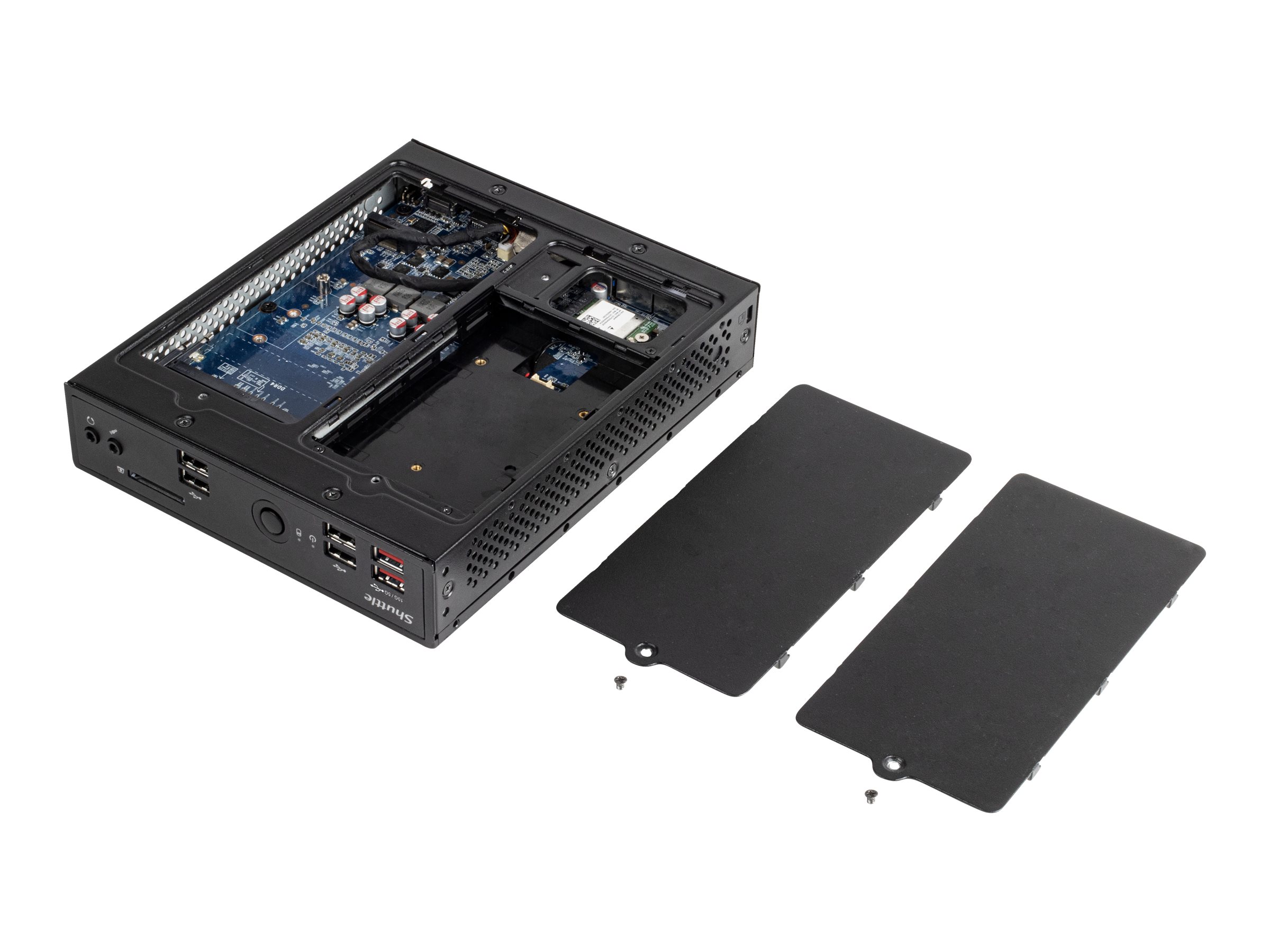

The DS20U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, one 2.5″ drive and an M.2 SSD card. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS20U series is an ideal platform for professional applications.
- Large DDR4 memory
- 1× NVMe, 1× SATA 2.5″, card reader

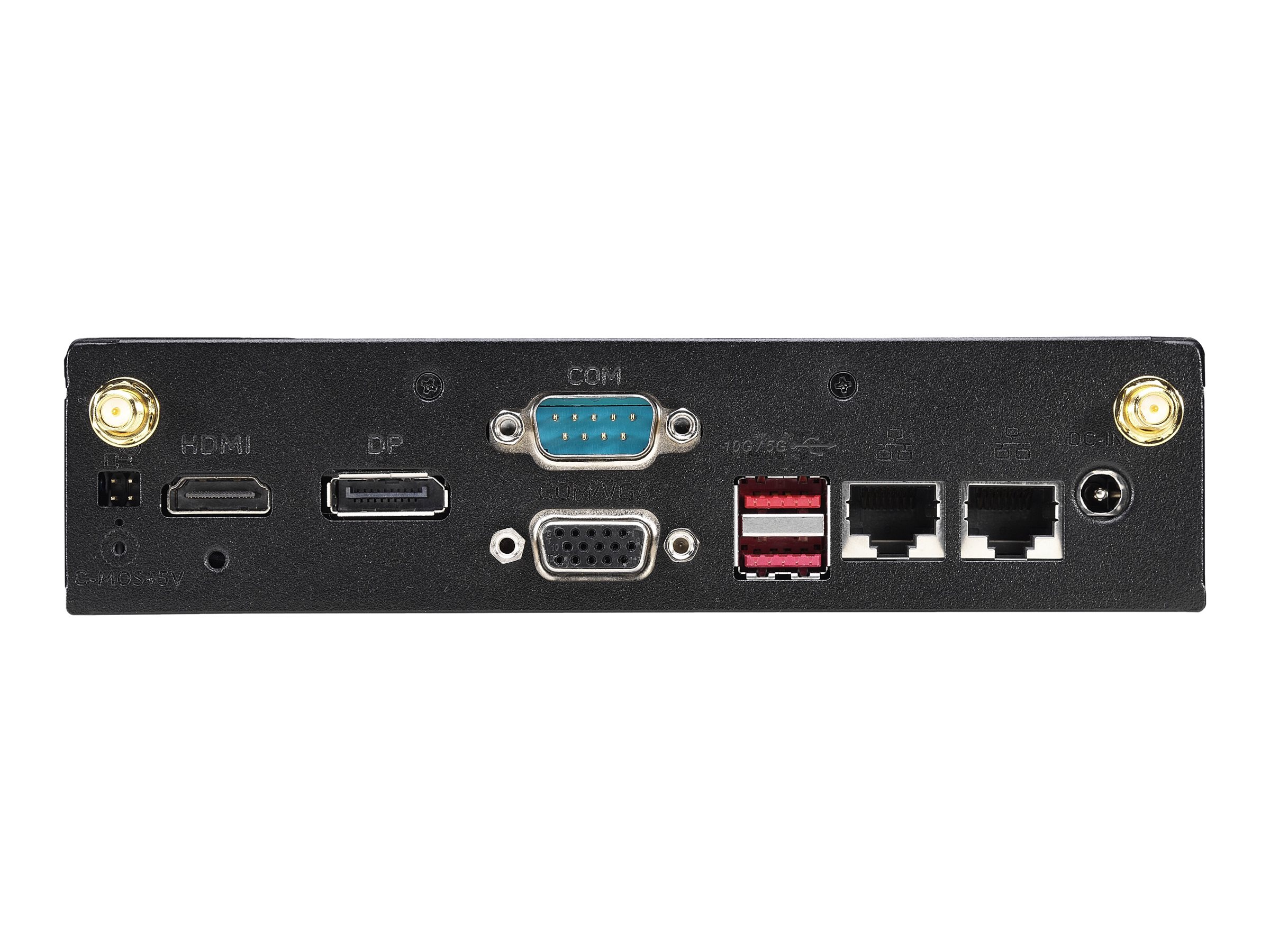

- 1× HDMI, 1× DisplayPort 1.2, 1× VGA
- Two M.2 slots
- 2× Gigabit Ethernet, WLAN-ready, 4G-ready
- 4× USB 3.2 Gen 2 (10 Gbit), 4× USB 2.0, 1× COM
- Remote power-on connector, always-on jumper
Main Specifications
Product Description | Shuttle XPC slim DS20U3 – Slim-PC Core i3 10110U 2.1 GHz – 0 GB – no HDD |
Type | PC barebone – Slim-PC |
Processor | 1 x Intel Core i3 (10th Gen) 10110U / 2.1 GHz (up to 4.1 GHz, ULV (Dual-Core) |
Cache Memory | 4 MB |
Cache Per Processor | 4 MB |
RAM | 0 GB (installed) / 32 GB (max) – DDR4 SDRAM |
Storage Controller | SATA (SATA 6Gb/s) |
Hard Drive | No HDD |
Optical Storage | No optical drive |
Card Reader | Yes |
Graphics Controller | Intel UHD Graphics |
Networking | 1GbE |
Power | (50/60 Hz) |
OS Provided | No operating system |
Software Included | Drivers & Utilities |
Colour | Black |
Dimensions (WxDxH) | 20 cm x 16.5 cm x 3.95 cm |
Weight | 1.5 kg |
Environmental Standards | ENERGY STAR Qualified |
Documents
Extended Specifications
General
Type | PC barebone |
|---|
Product Form Factor | Slim-PC |
|---|
Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
|---|
Colour | Black |
|---|
Processor / Chipset
CPU | Intel Core i3 (10th Gen) 10110U |
|---|
Clock Speed | 2.1 GHz |
|---|
Max Turbo Speed | 4.1 GHz |
|---|
Number of Cores | Dual-Core |
|---|
CPU Qty | 1 |
|---|
Max CPU Qty | 1 |
|---|
Power Efficiency | Ultra Low Voltage (ULV) |
|---|
Cache Memory
Installed Size | 4 MB |
|---|
Cache Per Processor | 4 MB |
|---|
RAM
Installed Size | 0 GB (installed) / 32 GB (max) |
|---|
Technology | DDR4 SDRAM |
|---|
Form Factor | SO-DIMM 260-pin |
|---|
Slots | 2 (Total) / 2 (empty) |
|---|
Features | Unbuffered, dual channel memory architecture |
|---|
Hard Drive
Storage Controller
Type | 1 x SATA |
|---|
Controller Interface Type | SATA 6Gb/s |
|---|
Channel Qty | 1 |
|---|
Optical Storage
Card Reader
Type | Card reader |
|---|
Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
|---|
Monitor
Graphics Controller
Graphics Processor | Intel UHD Graphics |
|---|
Video Interfaces | VGA, HDMI, DisplayPort |
|---|
Max Monitors Supported | 3 |
|---|
Audio Output
Compliant Standards | High Definition Audio |
|---|
Networking
Ethernet Ports | 2 x Gigabit Ethernet |
|---|
Ethernet Controller | Intel i219-LM, I211 |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
|---|
Features | Wake on LAN (WoL), PXE support, Teaming support |
|---|
Expansion / Connectivity
Bays | 1 (total) / 1 (free) x internal 2.5″ |
|---|
Slots | 1 (total) / 1 (free) x M.2 Card – 2242/2260/2280 (Key B-M)
1 (total) / 1 (free) x M.2 Card – 2230 (Key A-E) |
|---|

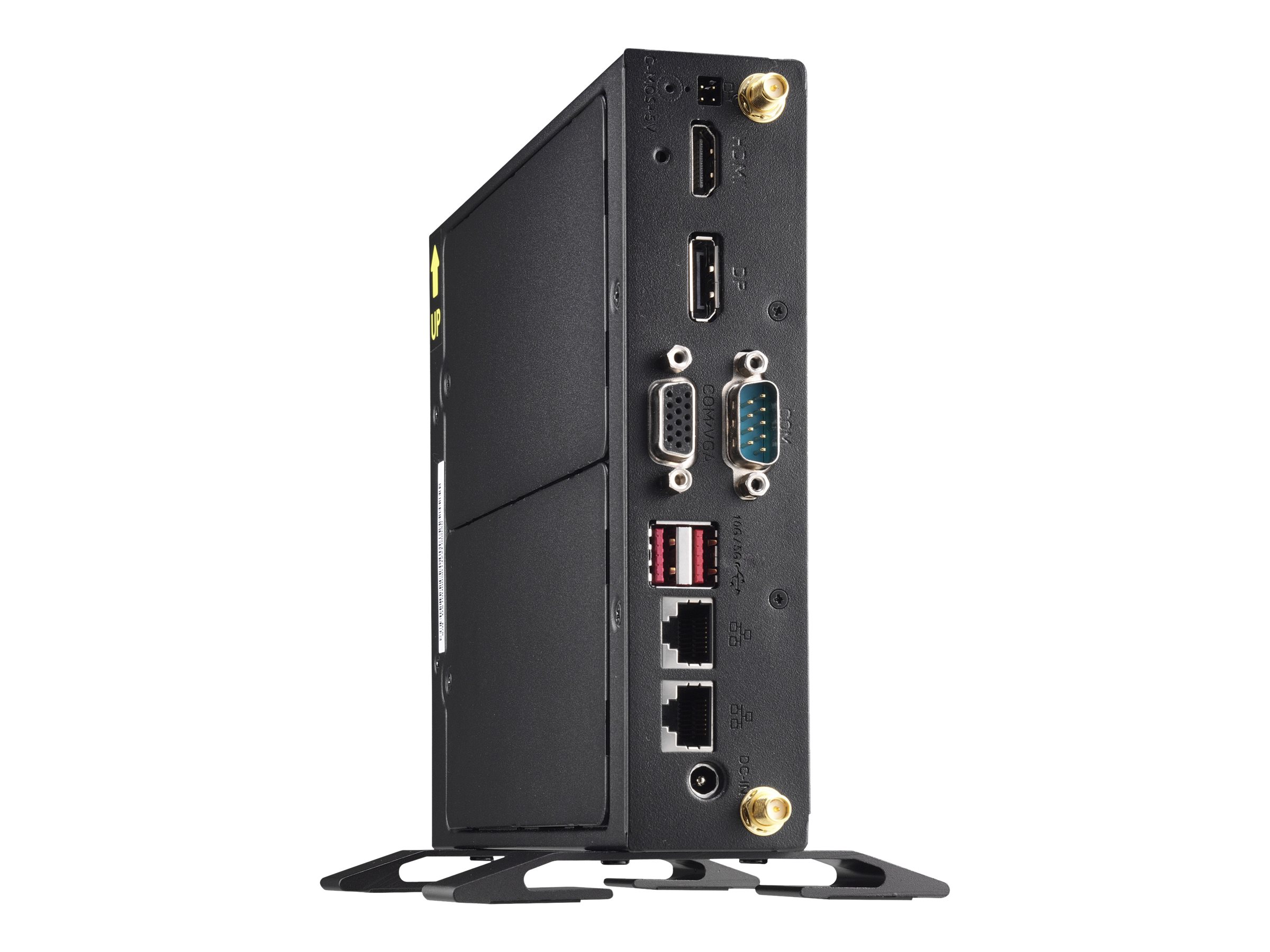

Interfaces | 1 x microphone
1 x audio line-out/headphones
1 x DisplayPort
1 x HDMI
1 x VGA

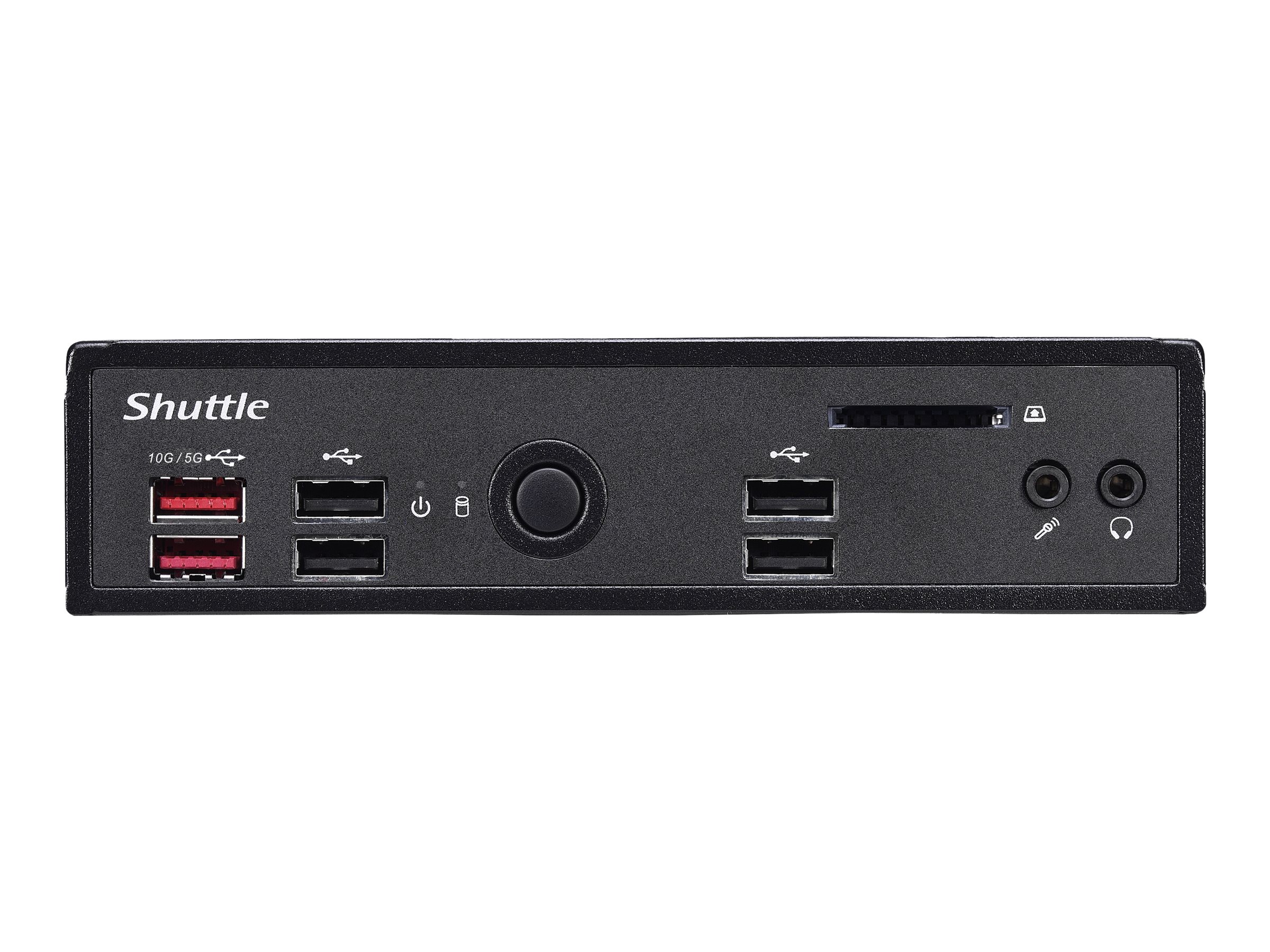

4 x USB 2.0 (4 in front)
4 x USB 3.2 Gen 2 (2 front, 2 rear)
2 x LAN (Gigabit Ethernet)
1 x serial |
|---|
Miscellaneous

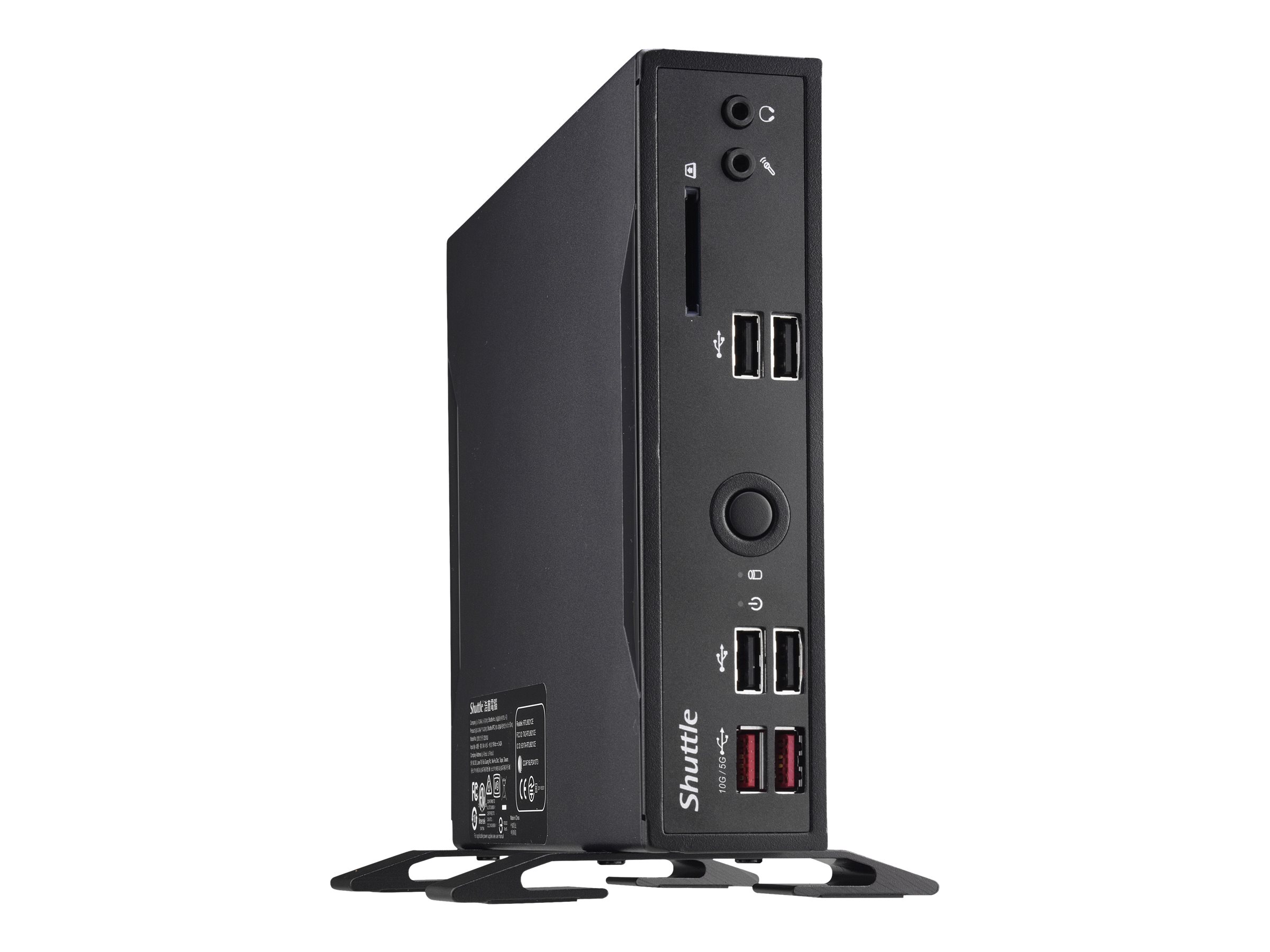

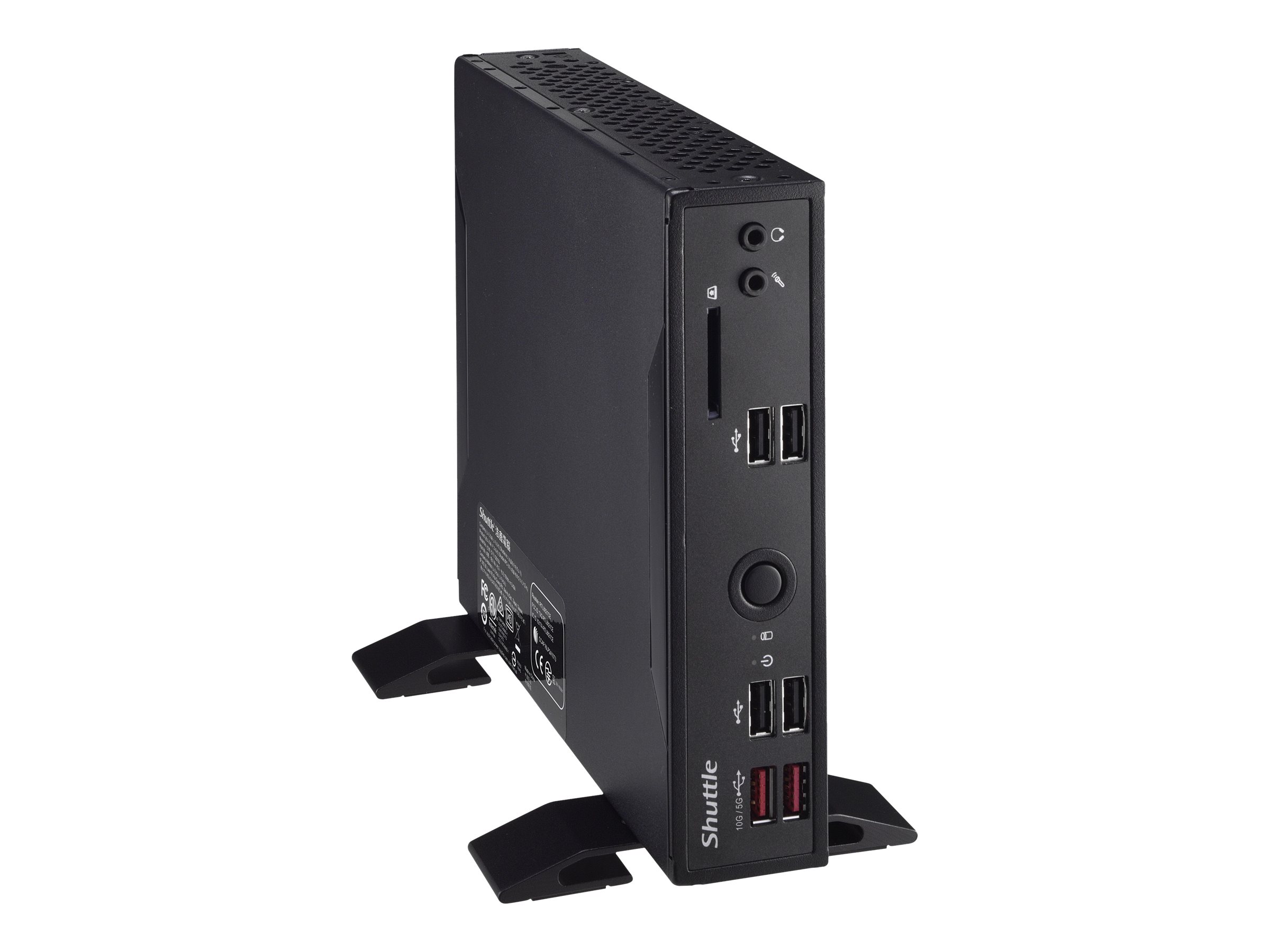

Included Accessories | VESA mounting kit, screw set, vertical stand |
|---|
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
|---|
Security Slot Type | Kensington security slot |
|---|
VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
|---|
Compliant Standards | C-Tick, BSMI, CB, FCC, RoHS, ETL, EMI, ErP 2009/125/EC, EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU |
|---|
Power
Device Type | Power adapter |
|---|
Voltage Required | AC 100-240 V (50/60 Hz) |
|---|
Power Provided | 65 Watt |
|---|
Operating System / Software
OS Provided | No operating system |
|---|
Software | Drivers & Utilities |
|---|
Sustainability Information
Dimensions & Weight
Width | 20 cm |
|---|
Depth | 16.5 cm |
|---|
Height | 3.95 cm |
|---|
Weight | 1.5 kg |
|---|
Dimensions & Weight (Shipping)
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
