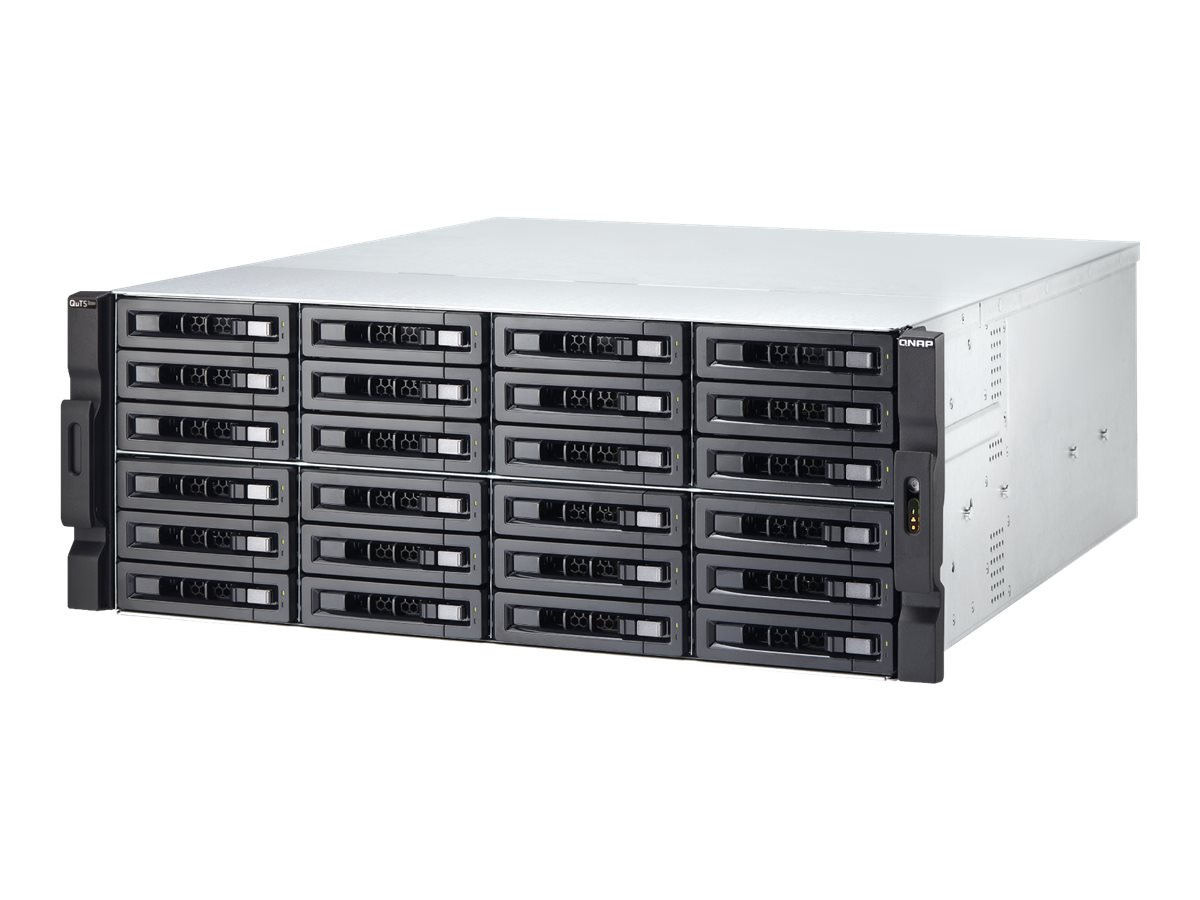

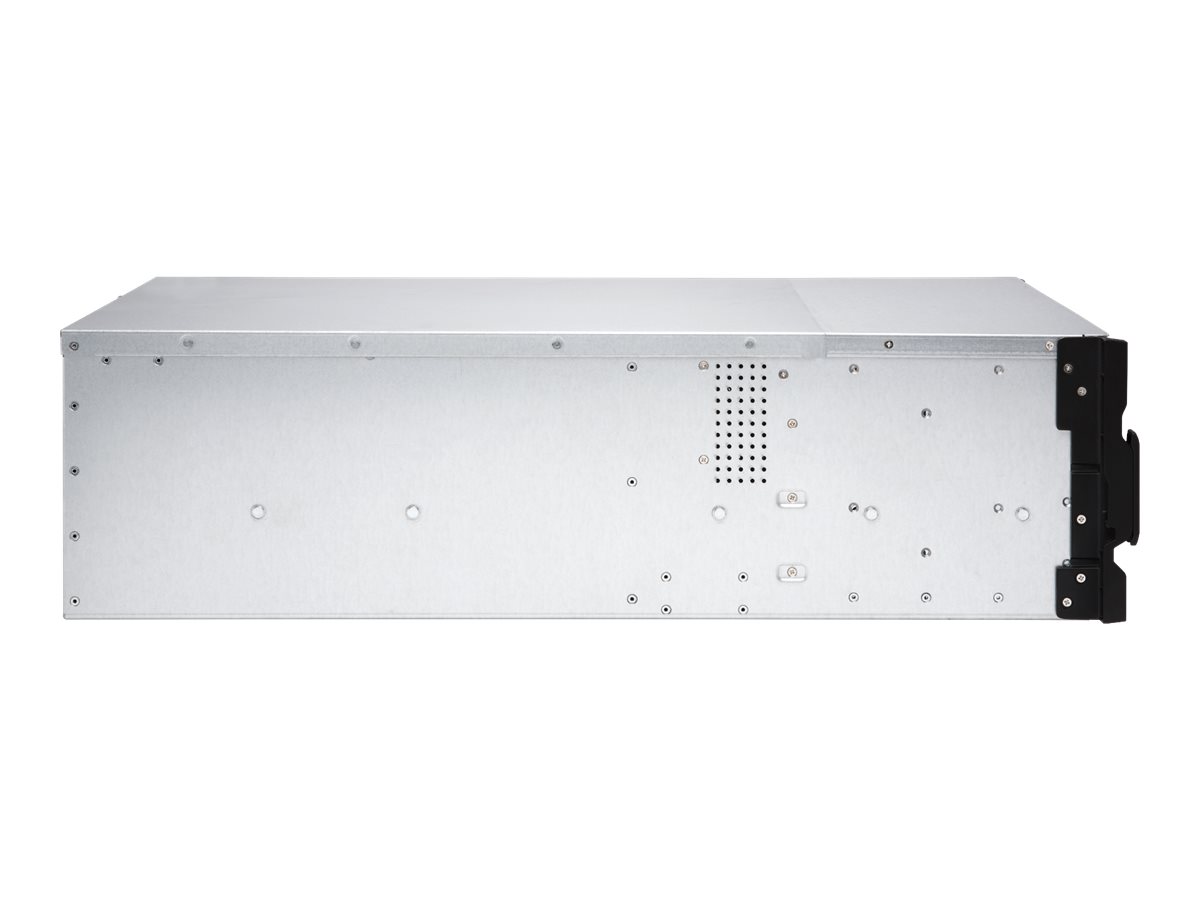

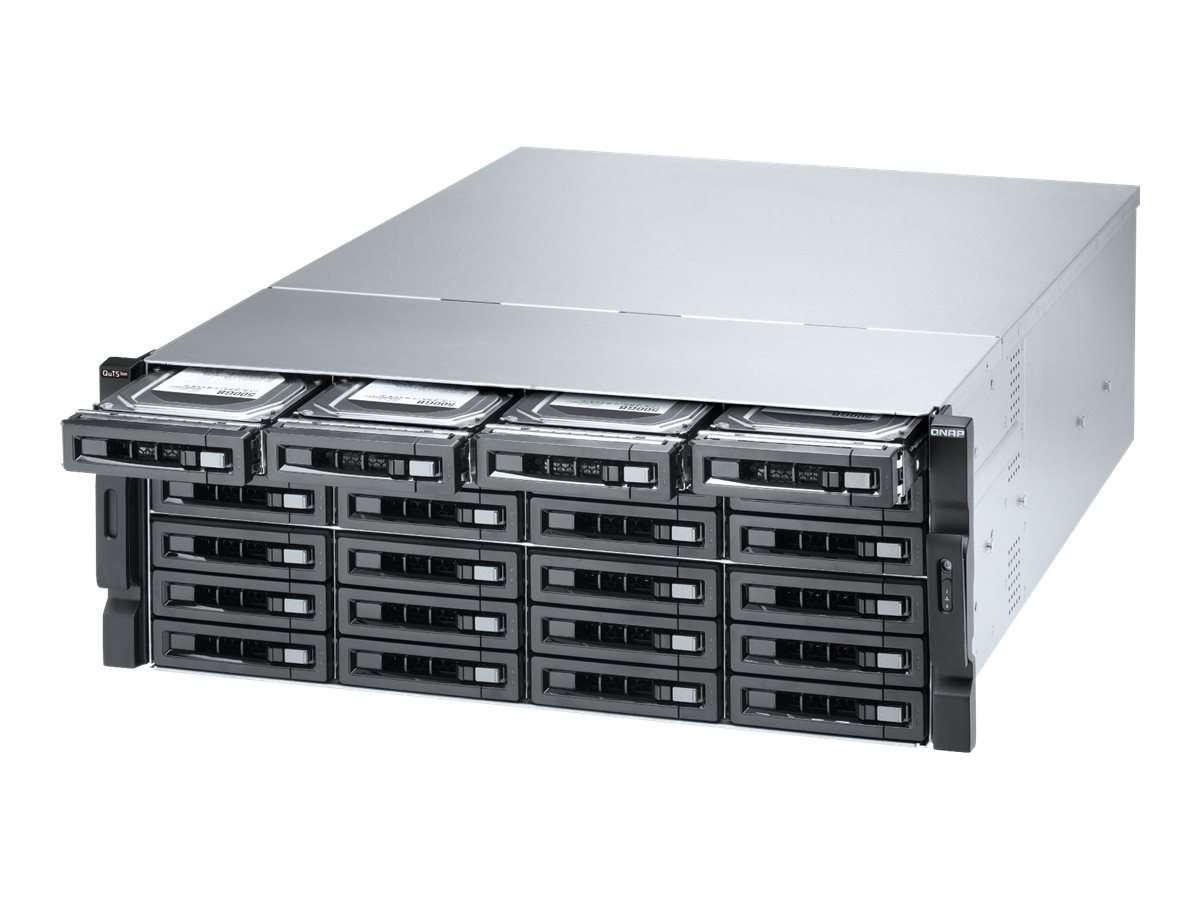

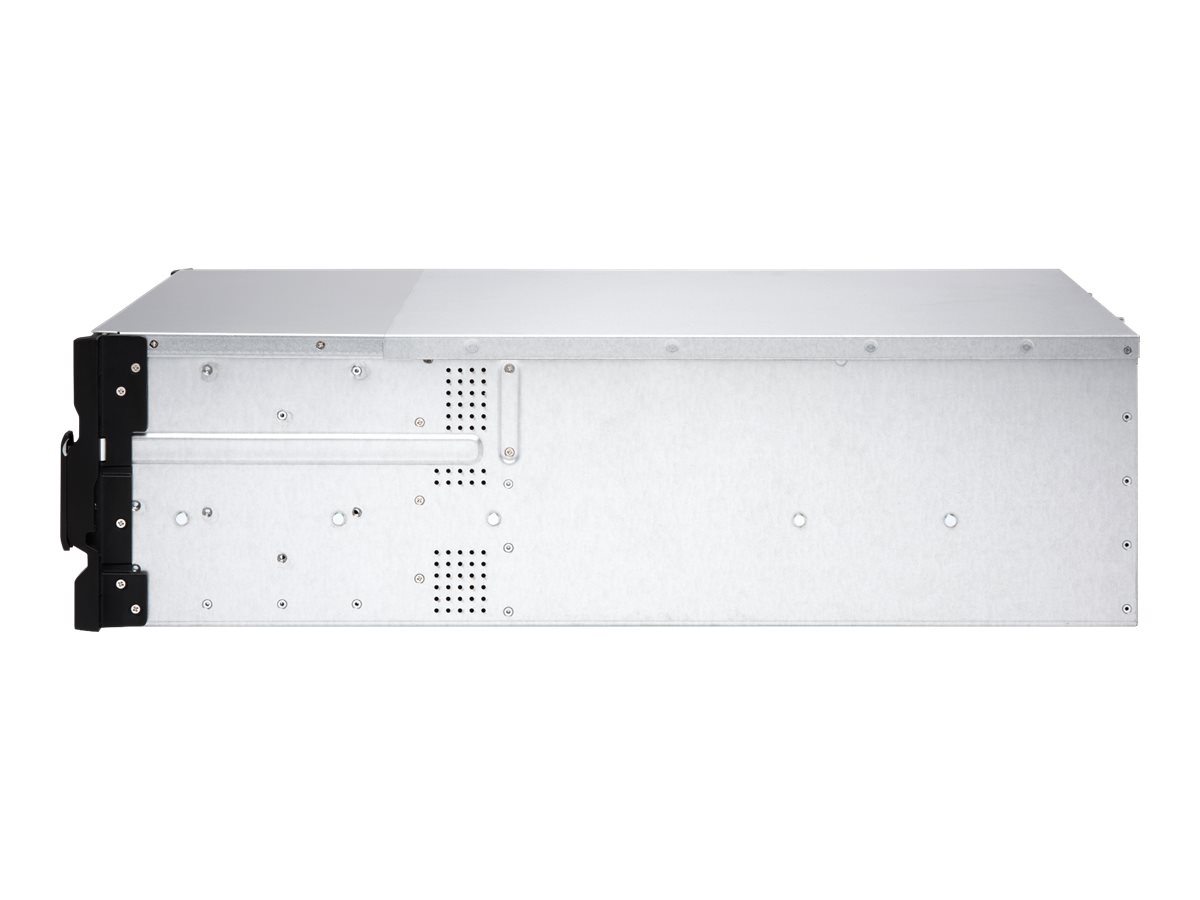

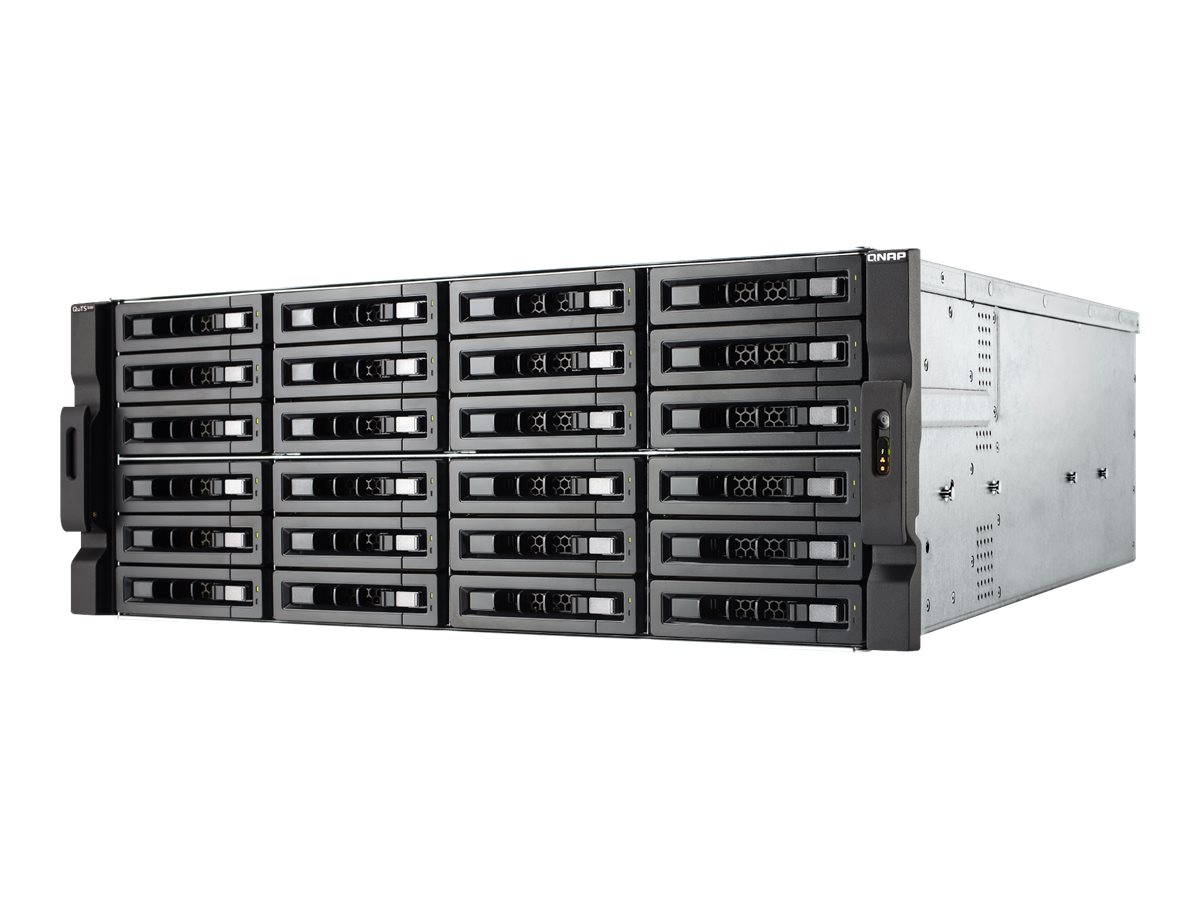

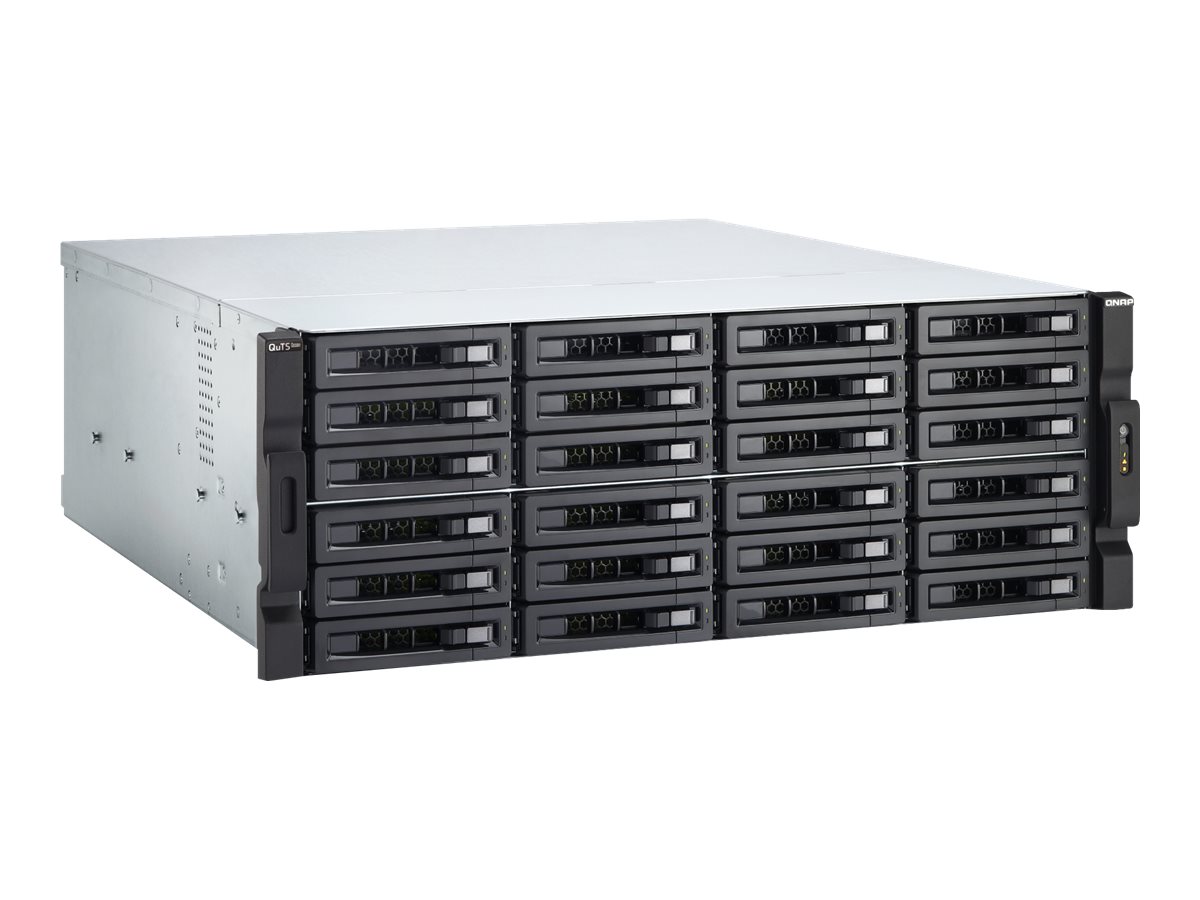

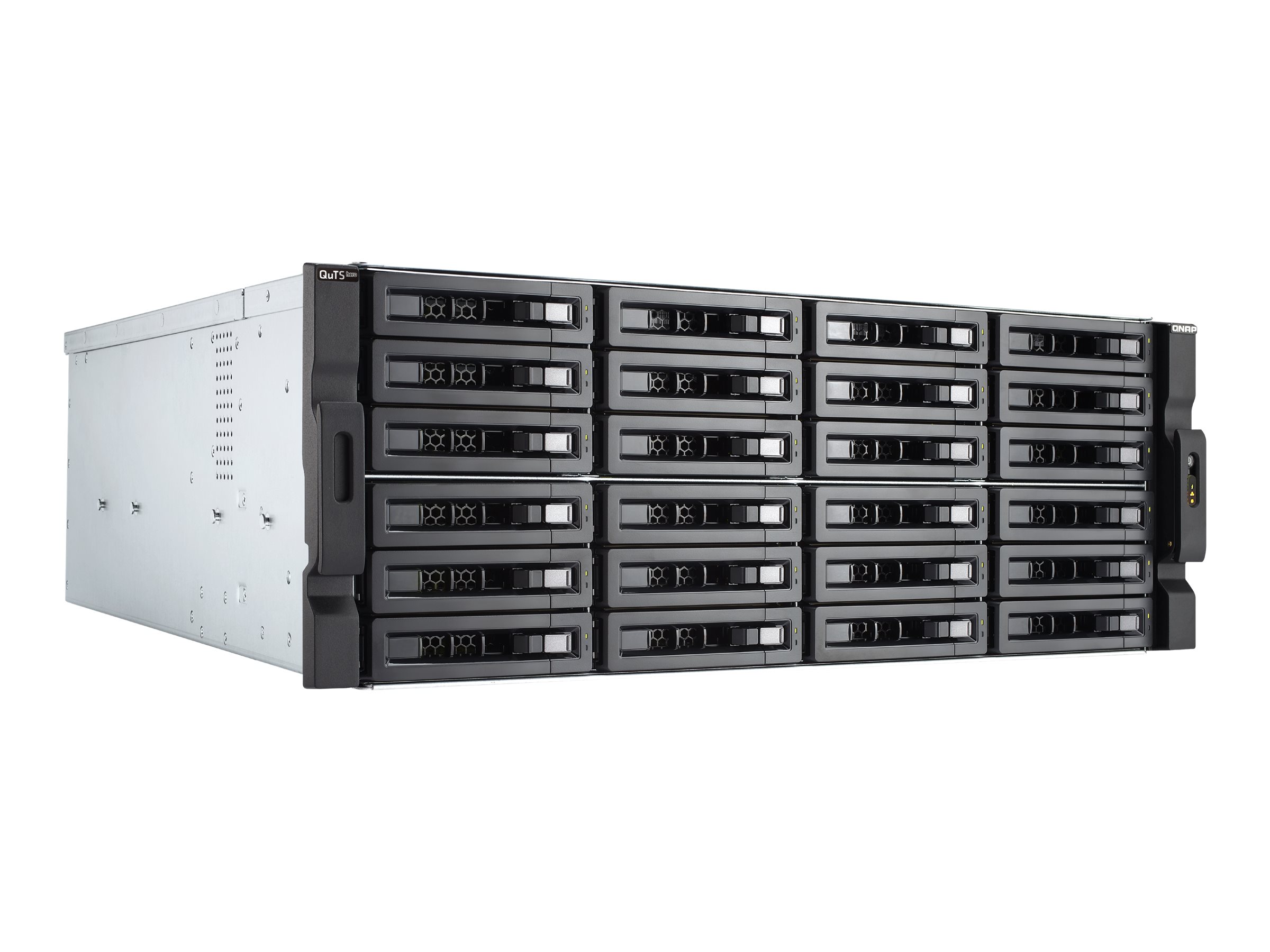

QNAP TS-H2477XU-RP, NAS server, 24 bays, rack-mountable, SATA 6Gb/s, RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 5 hot spare, 6 hot spare, 60, 10 hot spare, RAID TP, RAM 32 GB, Gigabit Ethernet / 10 Gigabit Ethernet / 10Gbps SFP+, iSCSI support, 4U
$10,435.32 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The TS-h2477XU-RP QuTS hero NAS is powered by an AMD Ryzen 7 processor that delivers supreme system and virtual machine performance with up to 8 cores/16 threads and Turbo Core up to 4.4 GHz. Running the ZFS-based QuTS hero operating system, the TS-h2477XU-RP prioritizes data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, SNMP protocol, and Azure AD Domain Services. Used as a mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup/recovery solution, the TS-h2477XU-RP helps your business achieve the outstanding service-level agreement performance.
- Two built-in 10GbE SFP+ ports support iSER and empower bandwidth-demanding applications for virtualization, intensive file access, and large backup/restoration tasks
- PCIe slots allow for installing 5/10/25GbE adapters, QM2 cards, or Fiber Channel cards to increase application potential and performance
- SSD cache acceleration improves random read performance to boost IOPS-demanding applications
- Supports storage for virtualization, and directly hosts virtual machines and containers
- Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud
What’s in the Box
- QNAP TS-H2477XU-RP
- 2 x network cable
- 2 x 10GBase-T cable
- 96 x flat head screws (for 2.5″ HDD), 96 x flat head screws (for 3.5″ HDD)
Main Specifications
Product Description | QNAP TS-H2477XU-RP – NAS server |
Device Type | NAS server |
Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet / 10Gbps SFP+ |
Enclosure Type | Rack-mountable – 4U |
Installed Devices / Modules Qty | 24 (max) |
Dimensions (WxDxH) | 48.104 cm x 67.202 cm x 17.615 cm |
Weight | 22.66 kg () |
Processor | 1 x AMD Ryzen 7 3700X 3.6 GHz (8-core) |
Storage Controller | RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 5 hot spare, 6 hot spare, 60, 10 hot spare, RAID TP |
Networking | 1GbE, 10GbE, 10 GigE optical |
RAM | 32 GB |
Power | AC 100-240 V |
Power Redundancy | Yes |
Storage Operating System | QNAP QuTS hero 4.5.0 |
Extended Specifications
General
Device Type | NAS server |
|---|---|
Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet / 10Gbps SFP+ |
Enclosure Type | Rack-mountable – 4U |
Total Storage Capacity | 0 GB |
Installed Devices / Modules Qty | 24 (max) |
Width | 48.104 cm |
Depth | 67.202 cm |
Height | 17.615 cm |
Weight | 22.66 kg () |
Processor / Memory
Processors Installed | 1 x AMD Ryzen 7 3700X 3.6 GHz |
|---|---|
Number of Cores | 8-core |
Max Supported Qty | 1 |
Max Turbo Speed | 4.4 GHz |
RAM | 32 GB (installed) / 128 GB (supported) – DDR4 |
Flash Memory Installed | 5 GB |
Storage Controller
Type | RAID |
|---|---|
Interface Type | SATA 6Gb/s |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 60, RAID 10 hot spare, RAID TP |
Networking
Data Link Protocol | 1GbE, 10GbE, 10 GigE optical |
|---|---|
Remote Management Protocol | SNMP 2, SNMP 3 |
Network Services Compatibility | Microsoft Active Directory (AD), Apple Bonjour Protocol, File Level Security (ACLs), Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP) |
Features | ALERT notification, LDAP support, VLAN support, wake on LAN (WOL), Syslog support, Access Control List (ACL) support, iTunes server, Jumbo Frames support, DLNA Media Server, Apple Time Machine compatible, VPN Server, Apple AirPlay, anti-virus protection, Link Aggregation, Google Drive support, Chromecast support, port trunking, Microsoft Azure support, Amazon S3 support, Amazon Glacier suport, Qsirch, deduplication (volume and LUN), snapshot (folder and LUN), compression (volume and LUN) |
Encryption Algorithm | AES-NI |
Compliant Standards | UPnP |
Expansion / Connectivity
Expansion Bays | 24 (total) / 24 (free) x hot-swap – 2.5″ / 3.5″ |
|---|---|
Expansion Slots | 1 x PCI Express 3.0 x8 1 x PCI Express 3.0 x4 3 x PCI Express 2.0 x4 |

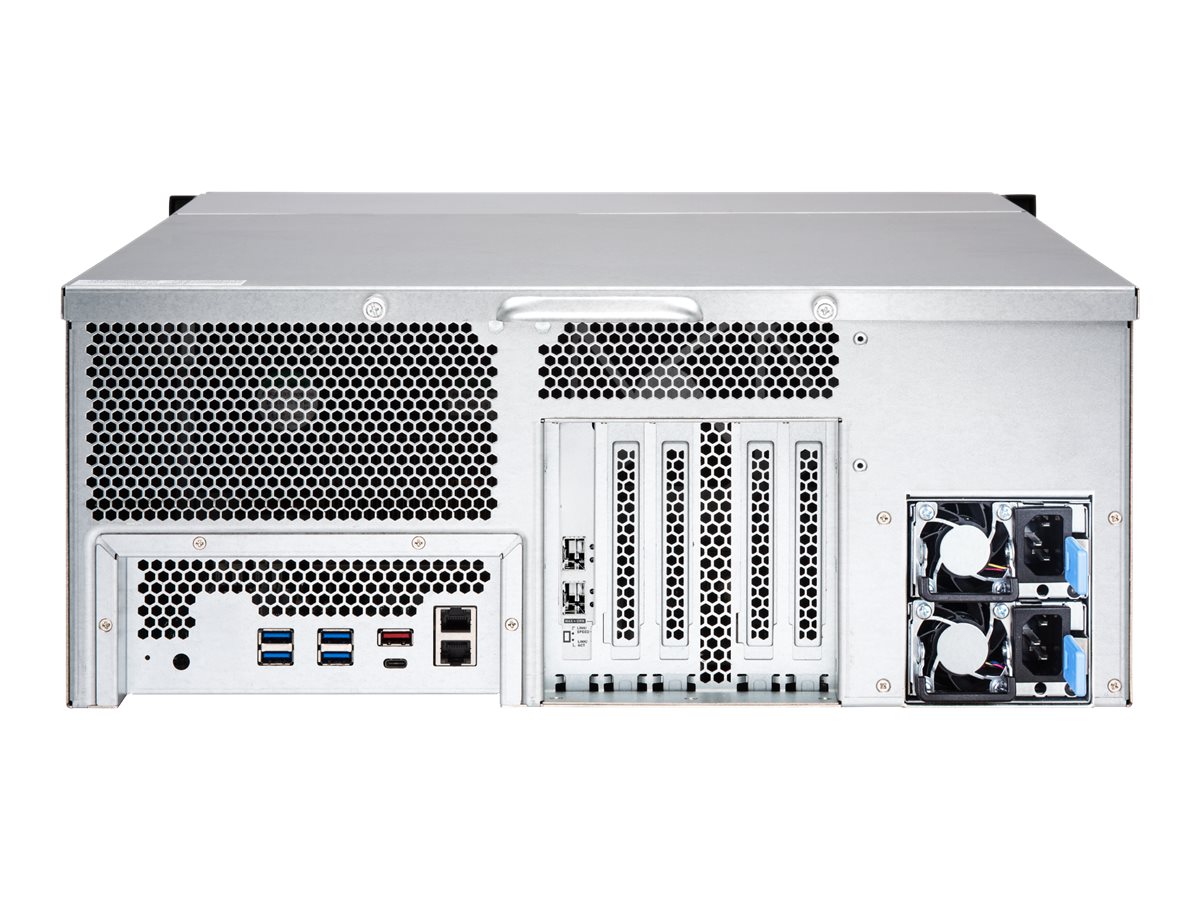

Interfaces | 4 x Ethernet 1000Base-T – RJ-45 4 x USB 3.2 Gen 2 – Type A 2 x USB 3.2 Gen 2 – Type C 2 x Ethernet 10Gb – SFP+ 2 x Ethernet 10Base-T – RJ-45 |
Miscellaneous
Cables Included | 2 x network cable 2 x 10GBase-T cable |
|---|---|
Features | Audible alarm, built-in 3 cooling fans, dual boot |
Included Accessories | 96 x flat head screws (for 2.5″ HDD), 96 x flat head screws (for 3.5″ HDD) |
Power
Power Device | Internal power supply |
|---|---|
Installed Qty | 2 |
Max Supported Qty | 2 |
Power Redundancy | Yes |
Power Redundancy Scheme | 1+1 |
Voltage Required | AC 100-240 V |
Power Consumption Operational | 143.97 Watt |
Power Provided | 800 Watt |
Software / System Requirements
Storage Operating System | QNAP QuTS hero 4.5.0 |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 5 – 95% (non-condensing) |
