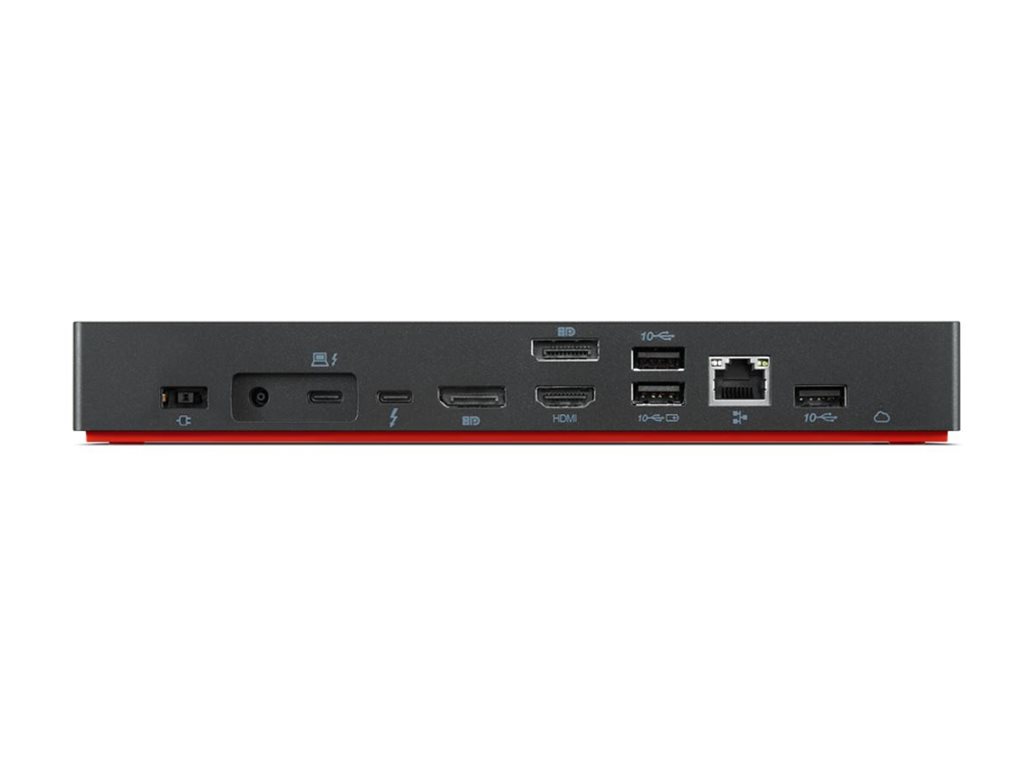

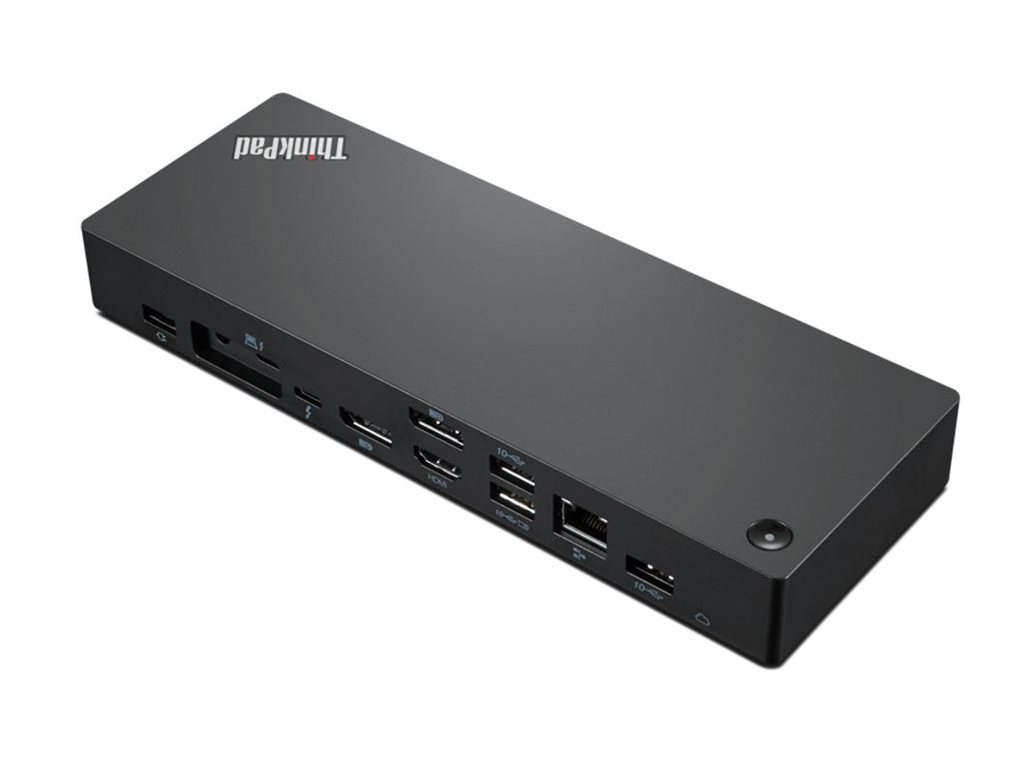

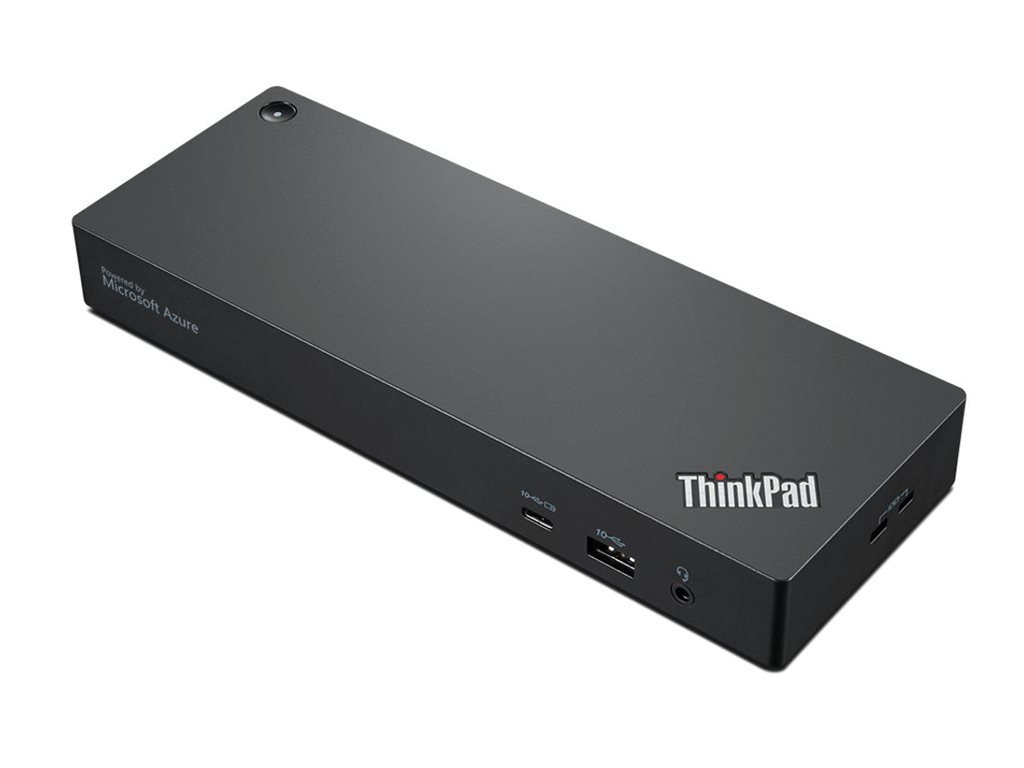

Lenovo ThinkPad Universal Thunderbolt 4 Smart Dock – Docking station – Thunderbolt 4 – HDMI, 2 x DP, Thunderbolt – GigE – 135 Watt – Australia – for ThinkCentre M75t Gen 2; ThinkPad P16s Gen 1; T15p Gen 2; T16 Gen 1; X1 Nano Gen 2
Manufacturer:Lenovo
Part Number:40B10135AU
Warranty:3 Years
PPID:AB15500
$528.73 inc GST
15 in stock (can be backordered)
Ships from Auckland
- Allow 1-2 days for delivery to the North Island
- Allow 2-3 days for delivery to the South Island
- add 1-2 days if you are rural
- Collection can be arranged
Description
The robust way to maximize productivity and the workspace, the Lenovo ThinkPad Universal Thunderbolt 4 Smart Dock is the leader in the series of docks offering a smarter way to work. Capable of driving 8k displays and 40Gbps data speeds, the dock ushers in the next generation of Intel Thunderbolt 4 connectivity for commercial users and a cloud-based management paradigm for IT managers.- One cable for all your needs
- The ThinkPad Universal Thunderbolt 4 Smart Dock adds 11+ productivity-enhancing ports to your PC
- Universal dock compatibility
- Get more longevity from your dock with the forward-thinking universal design of the ThinkPad Universal Thunderbolt 4 Smart Dock
- Innovative remote management
Main Specifications
| Product Description | Lenovo ThinkPad Universal Thunderbolt 4 Smart Dock – docking station – Thunderbolt 4 – HDMI, 2 x DP, Thunderbolt – GigE |
| Product Type | Docking station |
| Docking Interface | Thunderbolt 4 |
| Video Interfaces | HDMI, 2 x DP, Thunderbolt |
| Dimensions (WxDxH) | 22 cm x 8 cm x 3 cm |
| Weight | 460 g |
| Colour | Black / red |
| Networking | Gigabit Ethernet |
| Power | Power adapter 135 Watt Power Provided |
| Manufacturer Warranty | 3-year warranty |
| Designed For | ThinkCentre M75t Gen 2 11W5; ThinkPad P16s Gen 1 21BU; T14 Gen 2 20W0, 20W1; T14s Gen 2 20WM, 20WN; T15p Gen 2 21A7, 21A8; T16 Gen 1 21CH; X1 Carbon Gen 9 20XW, 20XX; X1 Extreme Gen 4 20Y5, 20Y6; X1 Nano Gen 1 20UN, 20UQ; X1 Nano Gen 2 21E9; X1 Yoga Gen 6 20XY, 20Y0; X13 Gen 2 20WK, 20WL |
Extended Specifications
General
| Product Type | Docking station |
|---|---|
| Width | 22 cm |
| Depth | 8 cm |
| Height | 3 cm |
| Weight | 460 g |
| Enclosure Colour | Black / red |
Video
| Max Resolution Details | 8K – 30 Hz (Single Display) 4K – 60 Hz (Quad Display (2 x DisplayPort 1.4 + HDMI + Thundebolt 4)) |
|---|
Networking
| Data Link Protocol | Gigabit Ethernet |
|---|
Expansion / Connectivity
| Interfaces | 3 x USB 3.1 Gen 2 1 x USB 3.1 Gen 2 with Always-on charging 1 x USB-C 3.1 Gen 2 1 x network – 10Base-T/100Base-TX/1000Base-T – RJ-45 1 x Thunderbolt 4 upstream 1 x Thunderbolt 4 downstream 2 x audio / video – DisplayPort 1 x audio / video – HDMI 1 x audio – headphones/microphone – mini-phone 3.5 mm 4-pole |
|---|
Miscellaneous
| Cables Included | 1 x Thunderbolt 4 cable – external – 0.7 m |
|---|---|
| Features | Security lock slot (cable lock sold separately), 100W charging |
| Security Slot Type | Kensington NanoSaver security slot / Kensington MicroSaver security slot |
| Compliant Standards | NOM, FCC, ICES, cULus |
Power
| Power Device | Power adapter |
|---|---|
| Power Provided | 135 Watt |
System Requirements
| OS Required | Windows 10 64-bit Edition |
|---|
Manufacturer Warranty
| Service & Support | Limited warranty – 3 years |
|---|
Dimensions & Weight (Shipping)
| Shipping Width | 27 cm |
|---|---|
| Shipping Depth | 19.5 cm |
| Shipping Height | 8.5 cm |
| Shipping Weight | 1.23 kg |
Environmental Parameters
| Min Operating Temperature | 0 °C |
|---|---|
| Max Operating Temperature | 40 °C |
Compatibility Information
| Designed For | Lenovo ThinkCentre M75t Gen 2 11W5 Lenovo ThinkPad P16s Gen 1 21BU Lenovo ThinkPad T14 Gen 2 20W0, 20W1 Lenovo ThinkPad T14s Gen 2 20WM, 20WN Lenovo ThinkPad T15p Gen 2 21A7, 21A8 Lenovo ThinkPad T16 Gen 1 21CH Lenovo ThinkPad X1 Carbon Gen 9 20XW, 20XX Lenovo ThinkPad X1 Extreme Gen 4 20Y5, 20Y6 Lenovo ThinkPad X1 Nano Gen 1 20UN, 20UQ Lenovo ThinkPad X1 Nano Gen 2 21E9 Lenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0 Lenovo ThinkPad X13 Gen 2 20WK, 20WL |
|---|
