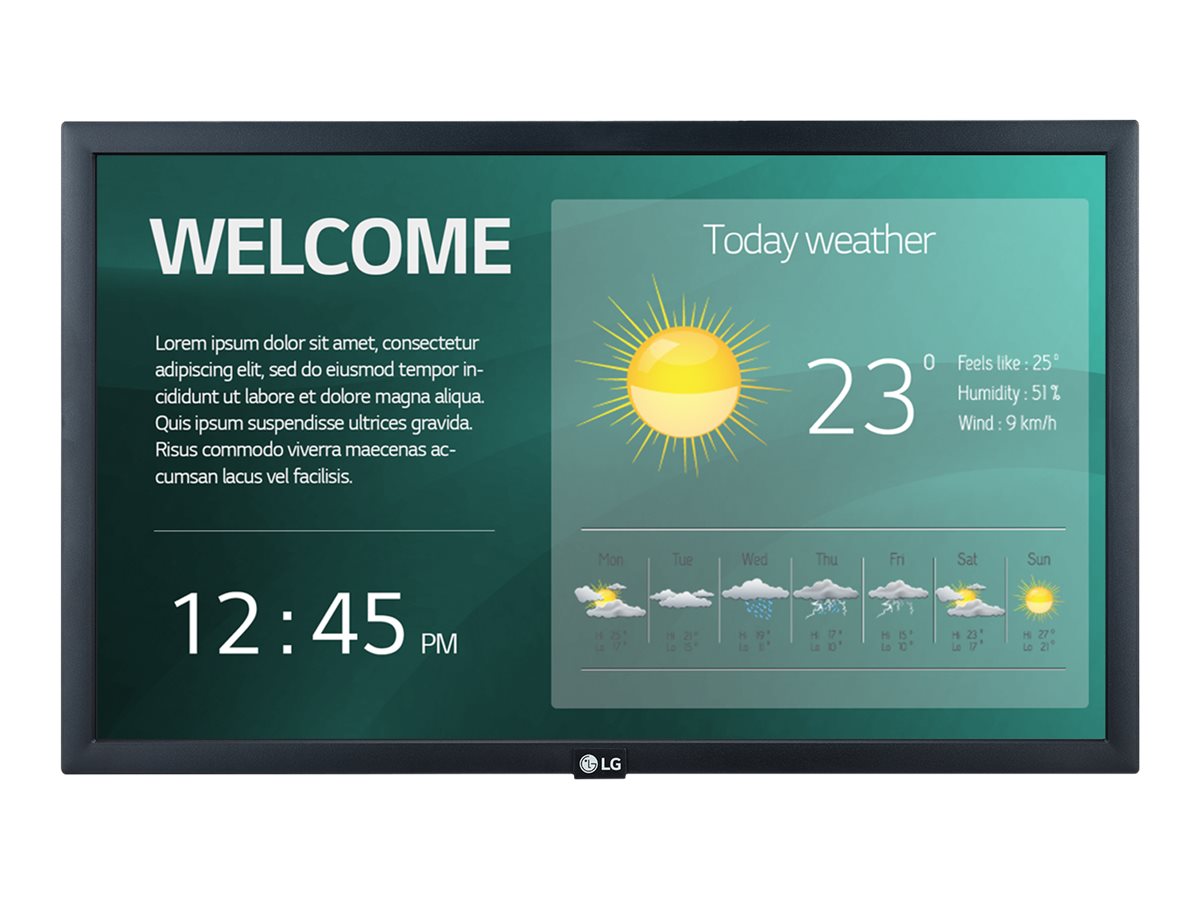

LG 22SM3G-B, 22" Diagonal Class (21.5" viewable) LED-backlit LCD display, digital signage with Integrated Pro:Idiom, 1080p 1920 x 1080, black
$637.92 inc GST
✓ In Stock - 9 available
✓ Free NZ Delivery
9 in stock
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded platform.
- High-performance SoC
- A wide range of interfaces
- USB playback
- Content sharing
- Real-time promotion
- Wireless solution
- High-performance SoC
Built-in SoC can execute several tasks at once while providing smooth content playback without the need for a media player. - A wide range of interfaces
Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs. - USB playback
With the LG 22SM3G users can easily set content playback using a USB. - Content sharing
Content mirroring among devices is more convenient on a Wi-Fi network. - Real-time promotion
With beacon and Bluetooth low energy, shop managers can provide coupons and information in real time. - Wireless solution
22SM3G operates as a virtual router which can be a wireless access point for mobile devices.
What’s in the Box
- LG 22SM3G-B
- Remote control
- HDMI cable
- Serial adapter
Main Specifications
Product Description | LG 22SM3G-B 22″ Class (21.5″ viewable) with Integrated Pro:Idiom LED-backlit LCD display – Full HD – for digital signage |
Product Type | LED-backlit LCD flat panel display with Integrated Pro:Idiom |
Diagonal Class | 22″ |
Diagonal Size | 21.5″ |
Commercial Use | Yes – digital signage |
Colour | Black |
Resolution | 1920 x 1080 |
Display Format | 1080p |
Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
Video Interface | HDMI |
HDMI Ports Qty | 2 ports |
Connectivity | Wi-Fi, LAN, Bluetooth |
Technology | IPS |
LCD Backlight Technology | LED backlight |
Image Aspect Ratio | 16:9 |
TV Tuner | No tuner |
Commercial Features | SMART Signage Platform, SNMP support, No Signal image, Crestron Connected Certified, Integrated Contents Management System (CMS), SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign Control compatible, Real Time Communication (webRTC), Local Key Operation, FailOver |
Settings Cloning Capability | Yes |
Speaker System | 2 speakers |
Storage Capacity | 8 GB |
USB | Yes |
Included Accessories | Remote control |
Voltage | AC 100-240 V (50/60 Hz) |
Power Consumption Operational | 30 watt |
Dimensions (WxDxH) – without stand | 51.03 cm x 5.38 cm x 30.21 cm |
Weight | 3.34 kg |
Documents
Extended Specifications
General
Product Type | LED-backlit LCD flat panel display with Integrated Pro:Idiom |
|---|---|
Power Consumption (Max) | 33 watt |
Power Consumption Operational | 30 watt |
Diagonal Class | 22″ |
Diagonal Size | 21.5″ |
Commercial Use | Yes – digital signage |
Operating System | webOS |
TV Tuner | No tuner |
TV Tuner Presence | No |
Sensors | Temperature sensor |
Video Interface | HDMI |
HDMI Ports Qty | 2 ports |
Modes | Portrait mode, landscape mode |
Dimensions | Without stand |
Width | 51.03 cm |
Depth | 5.38 cm |
Height | 30.21 cm |
Weight | 3.34 kg |
Enclosure Colour | Black |
Display
LCD Display Technology | IPS |
|---|---|
Resolution | 1920 x 1080 |
Display Format | 1080p |
Image Aspect Ratio | 16:9 |
Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
LCD Backlight Technology | LED backlight |
Coating | 25% haze |
Image Contrast Ratio | 1000:1 |
Brightness | 250 cd/m² |
Viewing Angle | 178 degrees |
Viewing Angle (Vertical) | 178 degrees |
Response Time | 14 ms |
Backlight Life | 30,000 hour(s) |
Commercial Features | SMART Signage Platform, SNMP support, No Signal image, Crestron Connected Certified, Integrated Contents Management System (CMS), SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign Control compatible, Real Time Communication (webRTC), Local Key Operation, FailOver |
Settings Cloning Capability | Yes |
Operation Hours / Days | 16 / 7 |
Features | Image Sticking Minimization (ISM), BEACON technology, picture in picture (no tuner), picture by picture (no tuner) |
Stands & Mounts
Flat Panel Mount Interface | 100 x 100 mm |
|---|---|
VESA Compatibility | Yes |
Media Player
USB Port | Yes |
|---|---|
USB Ports Qty | 1 |
Configuration | Quad-Core 8 GB |
Remote Control
Type | Remote control |
|---|
Audio System
Speaker System | 2 speakers |
|---|---|
Output Power / Total | 2 watt |
Speakers | 2 x speaker – 1 watt |
Network & Internet Multimedia
Connectivity | Wi-Fi, LAN, Bluetooth |
|---|---|
Connect & Share | Screen Share, Content Mirroring |
Connections
Connector Type | RS-232C input Audio line-in Infrared input Network 2 x HDMI input USB 2.0 |
|---|
Miscellaneous
Cables Included | HDMI cable Serial adapter |
|---|---|
Compliant Standards | Plug and Play, CB, EMC, RCM, HDCP 2.2, CISPR 32 |
Power
Power Device | Power supply |
|---|---|
Input Voltage | AC 100-240 V (50/60 Hz) |
Features | Smart energy saving, WOL (Wake on LAN) |
Dimensions & Weight (Shipping)
Width (Shipping) | 56.5 cm |
|---|---|
Depth (Shipping) | 10.3 cm |
Height (Shipping) | 35.7 cm |
Weight (Shipping) | 4.74 kg |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 – 80% |
