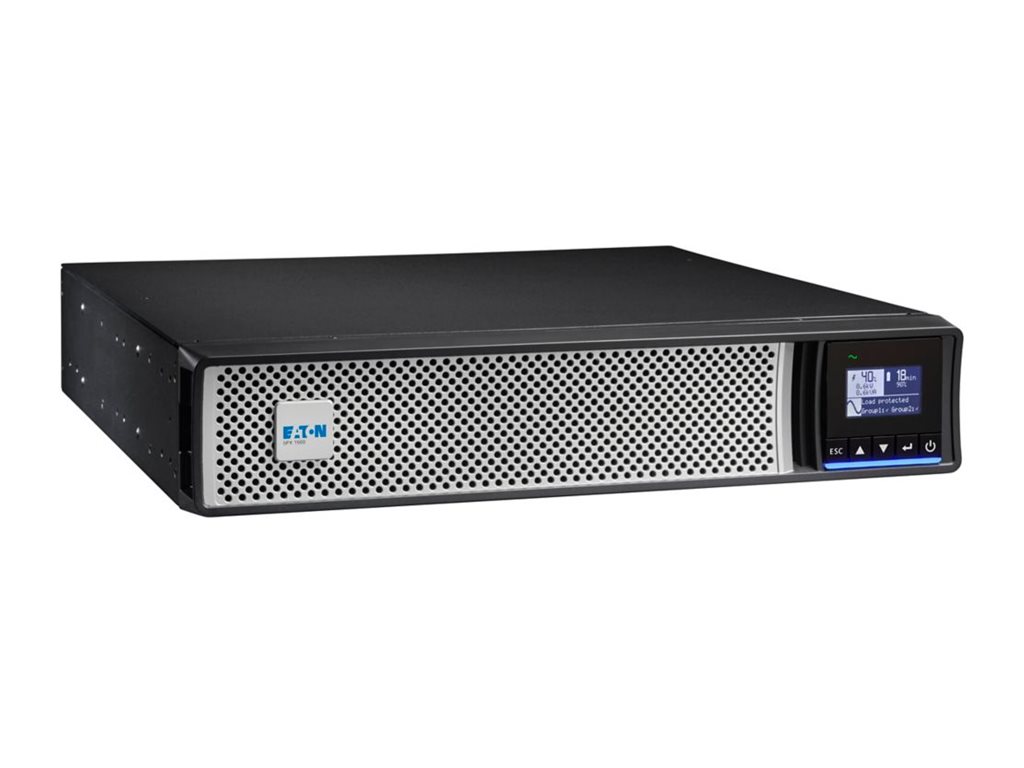

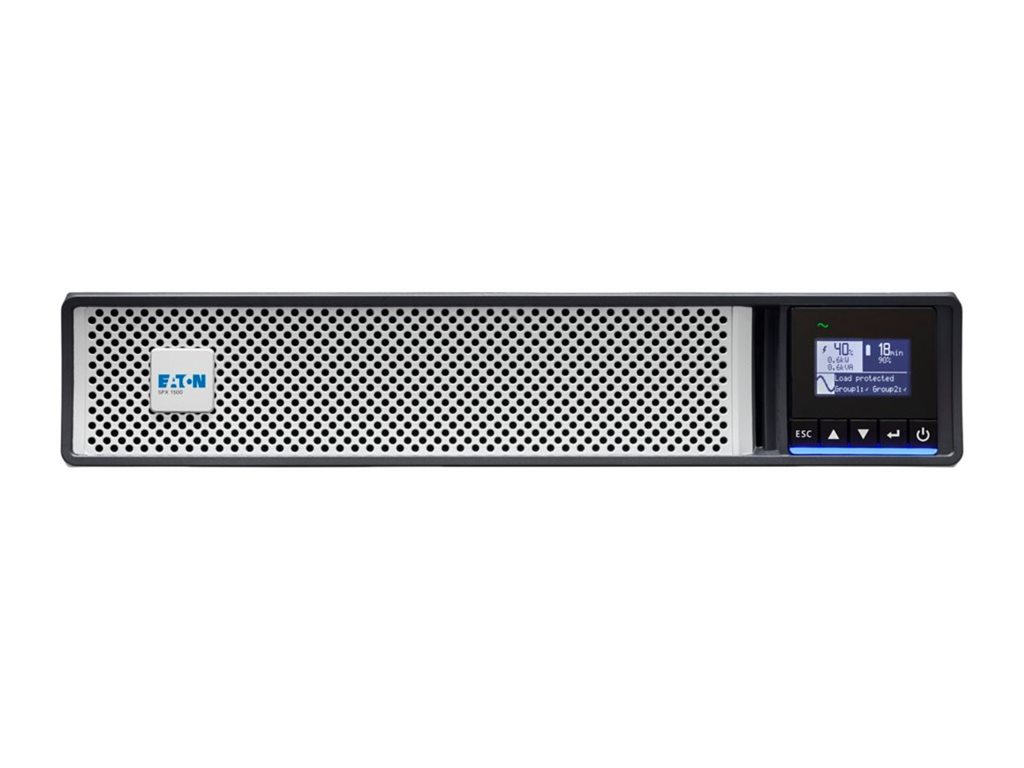

Eaton 5PX G2 - UPS - 1500 Watt - 1500 VA
$2,235.61 inc GST
Eaton 5PX G2 – UPS (rack-mountable / external) – 1500 Watt – 1500 VA – RS-232, USB – output connectors: 8 – 2U – Australia, New Zealand
Manufacturer:Eaton
Part Number:5PX1500IRT2UAUG2
Warranty:3 Years
PPID:AB13001
$2,235.61 inc GST
10 in stock (can be backordered)
Ships from Auckland
- Allow 1-2 days for delivery to the North Island
- Allow 2-3 days for delivery to the South Island
- add 1-2 days if you are rural
- Collection can be arranged
SKU: AB13001
Categories: Components & Accessories, Hardware, Power Protection Devices, Rack-Mountable UPS
Description
The Eaton 5PX UPS provides line-interactive, backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. Designed with multiple managed outlet segments, you can monitor energy consumption and view it on the new LCD screen. It was also designed to provide more available power, has an efficiency rating of up to 99% and offers additional runtime with extended battery modules.Main Specifications
Product Description | Eaton 5PX G2 – UPS – 1500 Watt – 1500 VA |
Device Type | UPS – rack-mountable / external |
Rack Size | 2U |
Weight | 22.4 kg |
Output Voltage | AC 200/208/220/230/240 V + 6% / – 10% |
Power Capacity | 1500 Watt / 1500 VA |
Input Connectors | 1 x power IEC 60320 C14 |
Output connectors | 8 x power IEC 60320 C13 10 A |
Battery | Expandable |
Run Time (Up To) | 5 min at full load |
Networking | RS-232, USB |
Included Accessories | Tower stand |
Dimensions (WxDxH) | 43.8 cm x 44.8 cm x 8.55 cm |
Environmental Standards | ENERGY STAR |
Manufacturer Warranty | 3-year warranty |
Extended Specifications
General
Device Type | UPS – rack-mountable / external |
---|---|
Height (Rack Units) | 2U |
Power Device
UPS Technology | Line interactive |
---|---|
Input Voltage Range | AC 160 – 294 V |
Input Voltage Range (Adjustable) | AC 150 – 294 V |
Frequency Provided | 50/60 Hz ± 0.1Hz |
Frequency Required | 40 – 70 Hz |
Input Connectors | 1 x power IEC 60320 C14 |
Power Output Connectors Details | 8 x power IEC 60320 C13 10 A |
Output Voltage | AC 200/208/220/230/240 V + 6% / – 10% – 50/60 Hz |
Power Capacity | 1500 Watt / 1500 VA |
Output Waveform | Sinewave |
Battery
Type | Expandable |
---|---|
Run Time (Up To) | 5 min at full load 14 min at half load |
Networking
Remote Management Interface | RS-232, USB |
---|
Expansion / Connectivity
Interfaces | 1 x management (RS-232) 1 x management (USB) 1 x remote power (on/off) – mini terminal block |
---|---|
Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
Miscellaneous
Included Accessories | Tower stand |
---|---|
Rack Mounting Kit | Included |
Features | Advance Battery Management (ABM), LCD display, deep discharge protection, automatic self-test, remote outlet switching |
Compliant Standards | FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cTUVus, CSA 22.2, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1, CM, UKCA, UKR |
Environmental Standards
ENERGY STAR | Yes |
---|
Manufacturer Warranty
Service & Support | Limited warranty – 3 years |
---|
Environmental Parameters
Min Operating Temperature | 0 °C |
---|---|
Max Operating Temperature | 40 °C |
Sound Emission | 40 dB |
Dimensions & Weight
Width | 43.8 cm |
---|---|
Depth | 44.8 cm |
Height | 8.55 cm |
Weight | 22.4 kg |
Additional information
Manufacturer |
---|
