Description

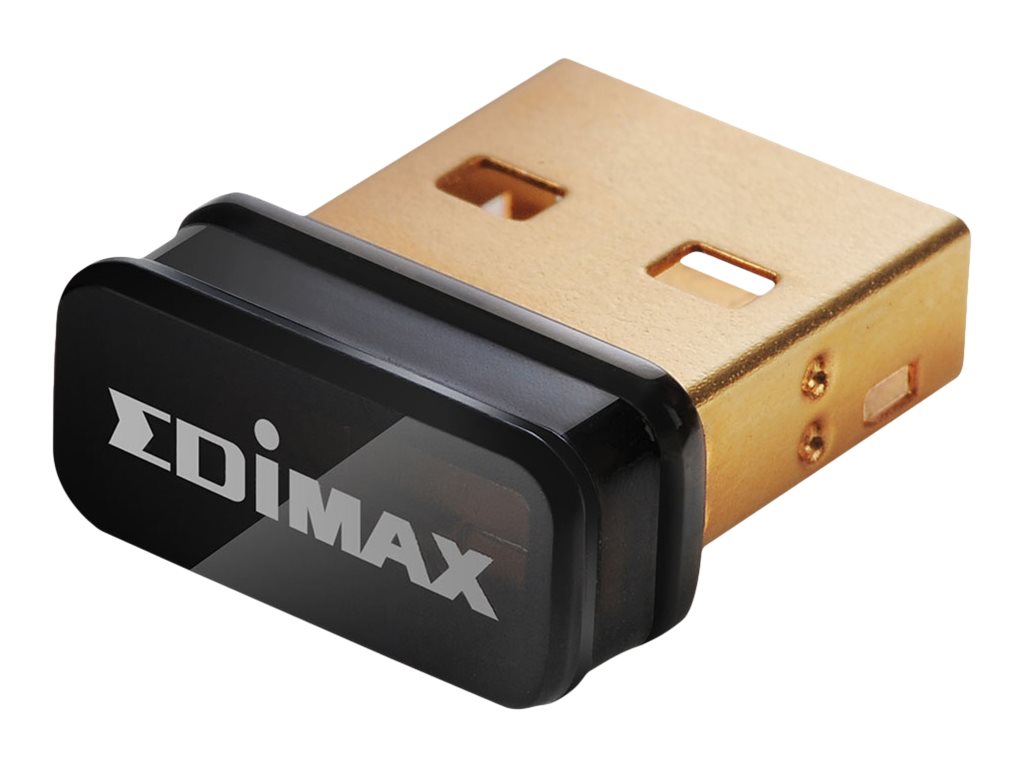

EW-7811Un V2 is a nano USB wireless adapter that supports maximum range and speed. Despite the size, this tiny USB adapter supports higher data rate of up to 150Mbps when connecting with wireless 802.11n device which is 3 times faster than your normally 11g connection. You can just plug it into computer’s USB port and enjoy incredible high-speed wireless network access.
- Wireless 802.11n standard
- Green WLAN
- Supports WPS
- Tiny and stylish design for laptops
- Embedded wireless adapter solution for Industrial IoT (IIoT)
- Wireless 802.11n standard
EW-7811Un V2 complies with wireless IEEE802.11b/g/n standards. Built with the latest wireless technology, the EW-7811Un V2 can increase your wireless coverage up to 3 times as much and greatly help reduce “dead spots” compared to your old 11g adapter. Transmission data rate can go up to 150Mbps when connected to a 802.11n device. It also extends its wireless signal distance, and provides more reliable wireless connections than standard IEEE 802.11g wireless networks. - Green WLAN
The EW-7811Un V2 has adapted a clever protocol. This wireless USB adapter smartly adjusts its power output according to the transmission distance and CPU offload. It drastically reduces power consumption when the connection is in idle. Designed with green WLAN technology, the EW-7811Un V2 power consumption can be reduced with an average of 20% to 50%. - Supports WPS
Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of wireless networks. This wireless USB adapter supports software WPS-compatible configuration. With a few clicks, your wireless network and router are immediately secured. - Tiny and stylish design for laptops

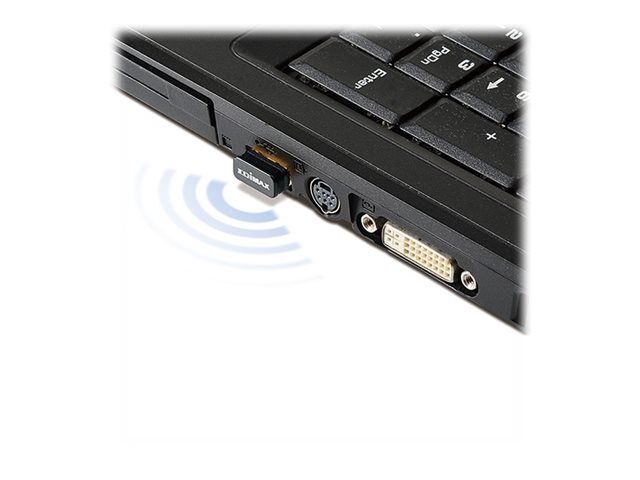

Can be easily plugged into any laptop without sacrificing portability and looks. Furthermore, it is designed with details in mind, such as not blocking other ports or be in the way of other USB devices/cables. - Embedded wireless adapter solution for Industrial IoT (IIoT)
Looking to add wireless connectivity to your product, device, or machine? Embedded with Edimax wireless USB adapters, supports various Wi-Fi and Bluetooth standards, delivers a completely connected, always-on experience for your customers.
Main Specifications
Product Description | Edimax EW-7811Un V2 – network adapter – USB 2.0 |
Device Type | Network adapter |
Form Factor | External |
Interface (Bus) Type | USB 2.0 |
Dimensions (WxDxH) | 1.49 cm x 1.75 cm x 0.71 cm |
Weight | 2 g |
Data Link Protocol | 802.11b/g/n |
Data Transfer Rate | 150 Mbps |
Frequency Band | 2.4 GHz |
Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, Wi-Fi CERTIFIED, USB 1.1, USB 2.0, IEEE 802.11n, Wi-Fi Protected Setup |
System Requirements | Microsoft Windows 7 / 8 / 8.1 / 10, Apple macOS 10.13.1 or later, Linux |
Extended Specifications
General
Device Type | Network adapter |
|---|
Form Factor | External |
|---|
Interface (Bus) Type | USB 2.0 |
|---|
Networking
Connectivity Technology | Wireless |
|---|
Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
|---|
Data Transfer Rate | 150 Mbps |
|---|
Frequency Band | 2.4 GHz |
|---|
Status Indicators | Link OK, link/activity |
|---|
Features | WMM support, QoS, WPS, Green WLAN |
|---|
Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, Wi-Fi CERTIFIED, USB 1.1, USB 2.0, IEEE 802.11n, Wi-Fi Protected Setup |
|---|
Aerial
Miscellaneous
Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA, WPA2 |
|---|
Compliant Standards | FCC, RoHS |
|---|
Software / System Requirements
Software Included | Drivers & Utilities, EZmax Setup Wizard |
|---|
OS Required | Microsoft Windows 7 / 8 / 8.1 / 10, Apple macOS 10.13.1 or later, Linux |
|---|
Dimensions & Weight
Width | 1.49 cm |
|---|
Depth | 1.75 cm |
|---|
Height | 0.71 cm |
|---|
Weight | 2 g |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 10 – 90% |
|---|
