Description
The DNR-4020-16P is a standalone wired Network Video Recorder (NVR) which supports multi-channel network cameras with H.265 and H.264 recording and two SATA hard disks for backup. Thanks to a powerful embedded system, the NVR can record video from network cameras located in local or remote sites into a dedicated HDD storage without having to turn on a PC. The DNR-4020-16P NVR supports real-time monitoring and playback from everywhere via browser, HDMI or VGA port. The triplex function enables the device to continue recording while allowing the user to watch the live view and search for playback videos.
- Automated surveillance
- Extensive monitoring and recording features
- Smooth streaming from anywhere
- Automated surveillance
Users are provided with a variety of options for viewing live streams and camera footage on-screen as well as automatically recording events as they happen, with or without an operator on-site. Event-based recording is available for cameras with motion detection and Alarm In connections are supported for triggers such as door and window sensors for automated recording during unusual events. User-defined scheduled recording and continuous recording with automatic overwriting options help to ensure the surveillance system is running reliably, even when no one is around. - Extensive monitoring and recording features
The DNR-4020-16P’s intuitive interface allows for easy configuration of many functions, including compression, resolution, and frame rate. Support for multiple encoding formats provides administrators the flexibility to prioritize storage space and video quality. Featuring live viewing of multiple channels, users can simply drag and drop selected cameras to the viewing area. - Smooth streaming from anywhere
The DNR-4020-16P also enables users to remotely view and manage the NVR from anywhere via a web browser. The Gigabit Ethernet port provides superior bandwidth for viewing 16 camera streams simultaneously, so critical moments can be monitored and captured at all times. Rounding out the features is the JustConnect+ mobile app that lets administrators easily and remotely access and monitor the DNR-4020-16P on a mobile device – making the JustConnect H.265 PoE Network Video Recorder a complete, easy-to-use enterprise surveillance solution.
What’s in the Box
- D-Link DNR-4020-16P
- External power adapter, software
- Network cable
- Software: Drivers & Utilities
Main Specifications
Product Description | D-Link DNR-4020-16P – standalone NVR – 16 channels |
Device Type | NVR – 16 channels – networked |
Compression Format | MJPEG, MPEG-4, H.264, G.711, G.726, H.265 |
Image Resolution | 1920×1080, 3840×2160 |
Hard Drive(s) Supported | Quantity: 2 |
Voltage | 100 – 240 V |
Dimensions (WxDxH) | 37.2 cm x 31 cm x 4.65 cm |
Weight | 2.8 kg |
Extended Specifications
General
Device Type | NVR |
|---|
Video Channels | 16 |
|---|
Image Resolution | 1920×1080, 3840×2160 |
|---|
Compression Format | MJPEG, MPEG-4, H.264, G.711, G.726, H.265 |
|---|
Package Content | External power adapter, software |
|---|
Cables Included | Network cable – 1 pcs. |
|---|
Software Included (Y) | Drivers & Utilities |
|---|
Compliant Standards | FCC, RoHS, IEEE 802.3, IEEE 802.3af |
|---|
Security DVR
Record Events | Continuous, event, manual, motion detection, scheduled |
|---|
Networked | Yes |
|---|
Features | Motion detection, RAID 0 support, RAID 1 support, Pan/Tilt/Zoom support, RAID JBOD support |
|---|
Hard Drive
Quantity Supported | 2 |
|---|
Interface | Serial ATA |
|---|
Networking
Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
|---|
Supported Protocols | IPv4, ARP, TCP/IP, UDP/IP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, HTTP, FTP, RTP, RTSP, RTCP, UPnP, CoS, QOS, DSCP, HTTPS, Samba, Bonjour, SNMP 1, SNMP 2c, SNMP 3, PPPoE |
|---|
Features | ONVIF support, auto-uplink (auto MDI/MDI-X), 1 fan, LANDAP support |
|---|

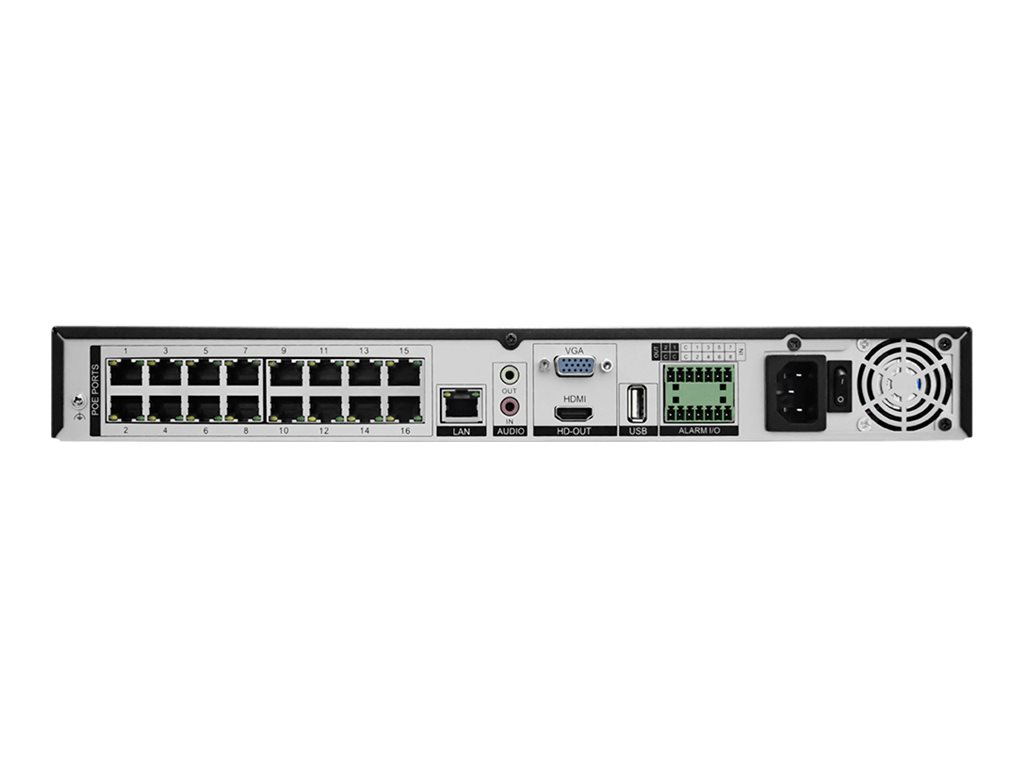

Connections
Video Input Ports | RJ-45 x 1 |
|---|
Video Output Ports | VGA x 1, HDMI x 1 |
|---|
Audio Input Ports | Mini-phone 3.5 mm x 1 |
|---|
Audio Output Ports | Mini-phone 3.5 mm x 1 |
|---|
Alarm Ports | Alarm input x 4, alarm output x 1 |
|---|
Network Port | 10/100/1000Base-T |
|---|
Other Ports | USB 2.0 x 3 |
|---|
Power
Voltage | 100 – 240 V |
|---|
Frequency | 50/60 Hz |
|---|
Dimensions & Weight
Width | 37.2 cm |
|---|
Depth | 31 cm |
|---|
Height | 4.65 cm |
|---|
Weight | 2.8 kg |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 90% (non-condensing) |
|---|
