Description

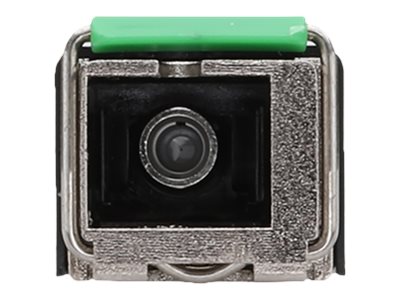

The Ubiquiti UF-Instant is designed for reliable networking solutions, featuring a miniature SFP transceiver module suitable for various applications. This plug-in module provides wired connectivity and operates seamlessly with a data transfer rate of 2.488 Gbps, ensuring robust performance for diverse network demands. With its Gigabit Passive Optical Network (GPON) capabilities and support for layer 2/3 management, the UF-Instant enables efficient traffic management across your network infrastructure.
This transceiver module operates in a wide range of environmental conditions, with a temperature tolerance of -10°C to 45°C and a humidity operating range of 10 to 90% (non-condensing). It also features a maximum transfer distance of up to 20 km, suitable for extensive network installations. The device consumes minimal power at 2 watts, contributing to energy efficiency in network deployments.
- High-performance GPON CPE
- Up to 2.4Gbps downstream and 1.2Gbps upstream GPON structure
- Supports up to 20km GPON links
- Powerful layer 2/3 management features
- Reliable connectivity
The UF-Instant features a SC/APC connector type for efficient wired networking, ensuring solid connections and minimal signal loss. - Environmental adaptability
Designed to withstand temperatures ranging from -10°C to 45°C, this device operates effectively in various environmental conditions, making it versatile for different applications. - Efficient power use
With an operational power consumption of only 2 watts, this transceiver module maintains low energy usage while delivering high performance. - Enhanced data management
Incorporating layer 2/3 management features, the UF-Instant allows for improved network traffic management, ensuring streamlined data operations. - High-speed performance
The device achieves a data transfer rate of 2.488 Gbps, providing fast and reliable communication across network systems.
Main Specifications
Product Description | Ubiquiti UF-Instant – SFP (mini-GBIC) transceiver module – GPON |
Device Type | SFP (mini-GBIC) transceiver module – SC/APC |
Form Factor | Plug-in module |
Data Transfer Rate | 2.488 Gbps |
Data Link Protocol | GPON |
Max Transfer Distance | 20 km |
Dimensions (WxDxH) | 6.946 cm x 1.37 cm x 1.13 cm |
Weight | 30 g |
Extended Specifications
Networking
Max Transfer Distance | 20 km |
|---|
Features | Gigabit Passive Optical Network (GPON), layer 2/3 management, MIPS 100 MHz processor, 32 MB DDR |
|---|
Expansion / Connectivity
Interfaces | 1 x network – SC/APC |
|---|
Power
Power Consumption Operational | 2 Watt |
|---|
Dimensions & Weight
Width | 6.946 cm |
|---|
Depth | 1.37 cm |
|---|
Height | 1.13 cm |
|---|
Weight | 30 g |
|---|
Environmental Parameters
Min Operating Temperature | -10 °C |
|---|
Max Operating Temperature | 45 °C |
|---|
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
General
Device Type | SFP (mini-GBIC) transceiver module |
|---|
Form Factor | Plug-in module |
|---|
Networking
Connectivity Technology | Wired |
|---|
Data Link Protocol | GPON |
|---|
Data Transfer Rate | 2.488 Gbps |
|---|
