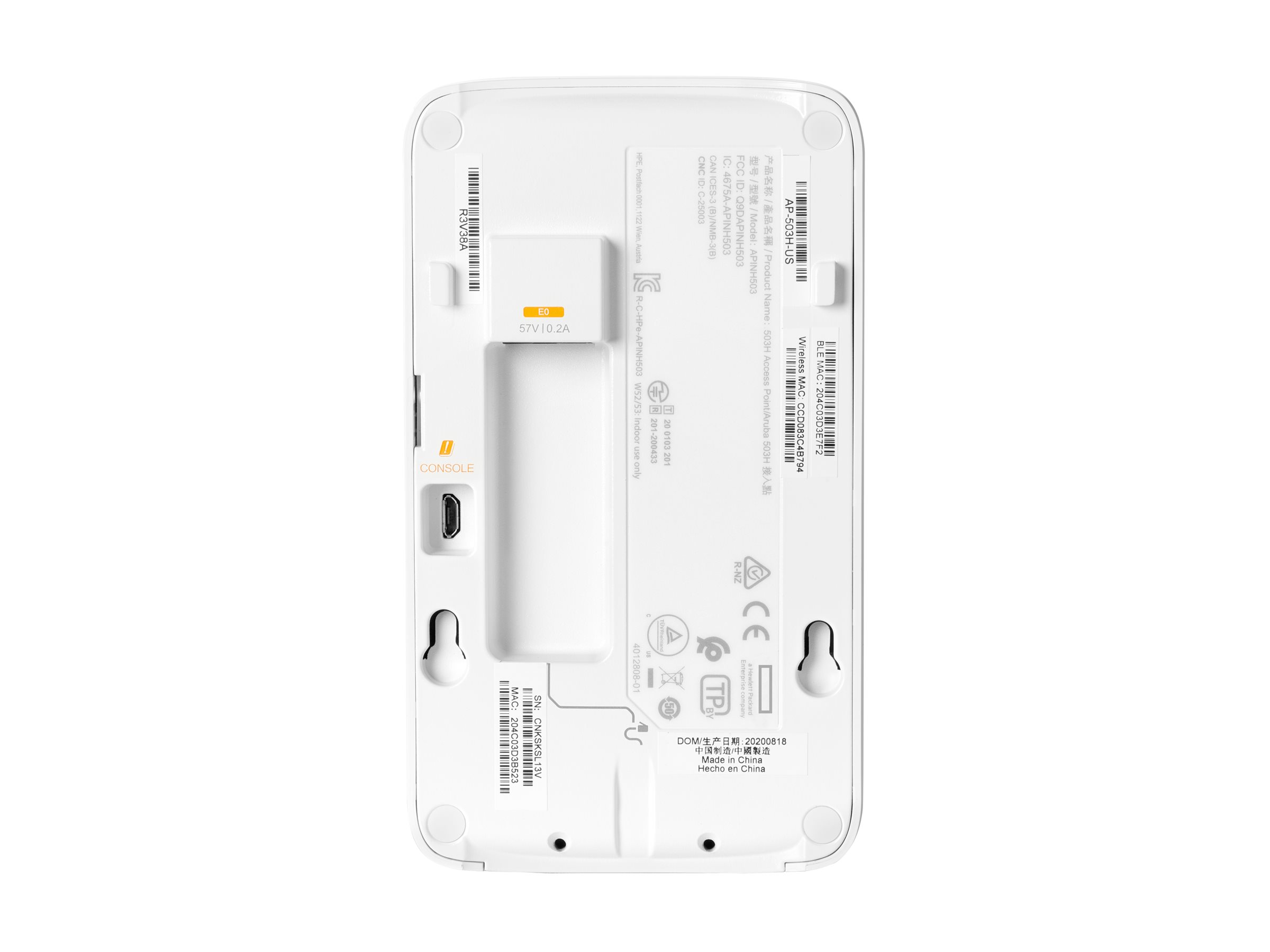

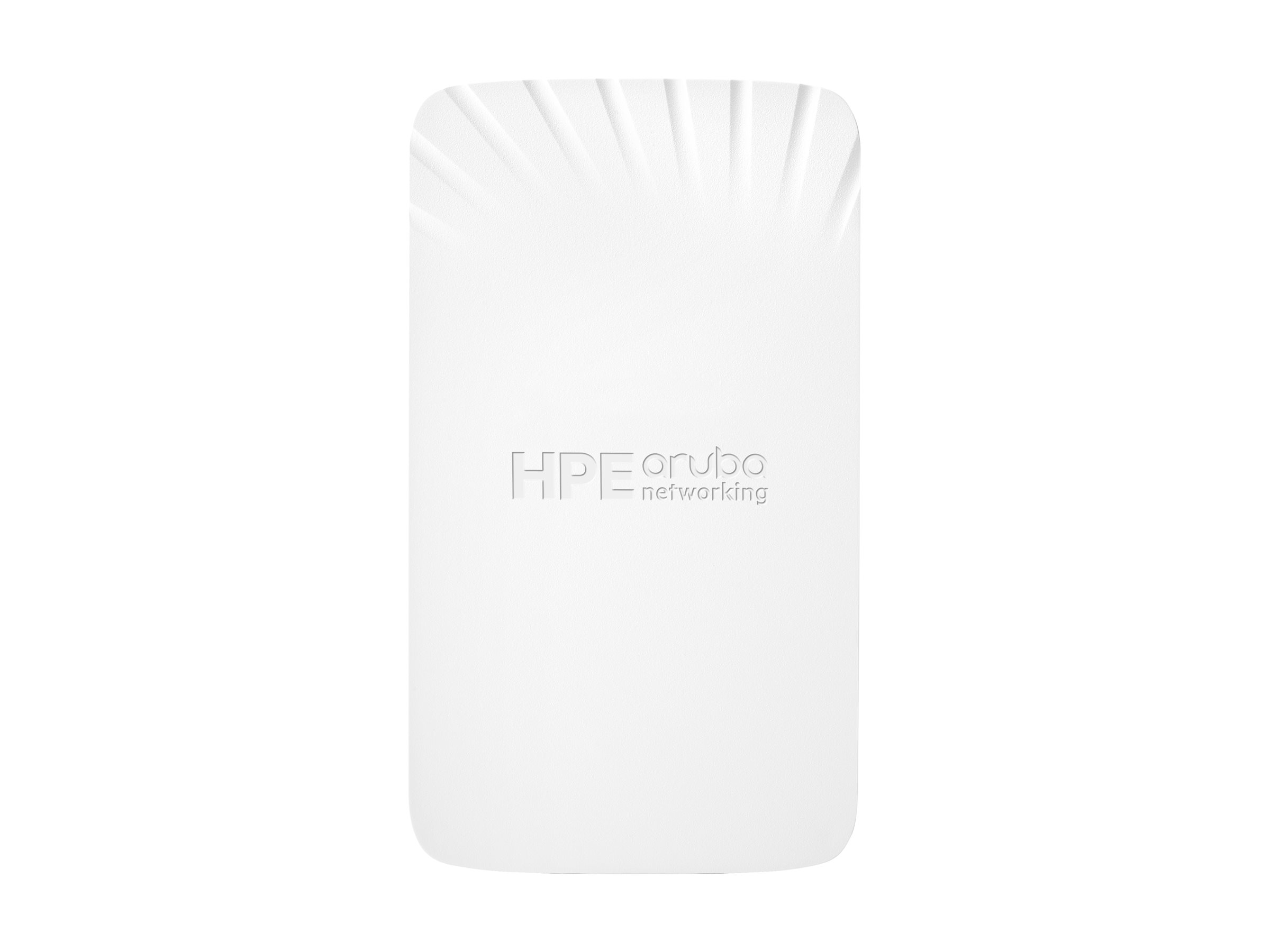

HPE Aruba AP-503H (RW) Unified Hospitality, Radio access point, Wi-Fi 6, 2.4 GHz, 5 GHz, BTO

Description

HPE Aruba Networking 500H Series Unified Hospitality Access Points delivers cost-effective Wi-Fi 6 coverage in a compact form factor that is ideal for hotels, residence halls, and remote offices. With 1.5 Gbps maximum combined speed, Zero Touch Provisioning, and wired ports, the 500H Series is ready to improve wireless experiences for guests, employees, students, and teleworkers. The 500H Series is Wi-Fi CERTIFIED and supports 802.11ax features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 500H Series includes a limited lifetime warranty.

• HPE Aruba Networking 500H Series Unified Hospitality Access Points deliver a maximum combined data rate of 1.5 Gbps with 2 spatial streams to meet the needs of low and medium density environments.
• The HPE Aruba Networking 500H Series Unified Hospitality Access Points can be installed on a wall for hotel or residence hall environments or installed with optional desktop stand for tabletop deployment.
• The HPE Aruba Networking 500H Series Unified Hospitality Access Points support Bluetooth 5 and Zigbee® wireless protocols through an integrated IoT radio. The AP-505H model also has an integrated USB port to support a range of IoT devices.
• The HPE Aruba Networking 500H Series Unified Hospitality Access Points offer enhanced security with Dynamic Segmentation to remove time-consuming and error-prone task of managing complex and static VLANs, ACLs and subnets by dynamically assigning policies and keeping traffic protected and separated.

• Wi-Fi 6 Performance for Hotels, Dorms, and Remote Offices
  HPE Aruba Networking 500H Series Unified Hospitality Access Points deliver a maximum combined data rate of 1.5 Gbps with 2 spatial streams to meet the needs of low and medium density environments.
  The AP provides Wi-Fi CERTIFIED with support for Wi-Fi 6 features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) to drive improved efficiency. It handles multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type.
  Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives the best radio signal.
• Flexible Deployment and Unified Management
  The HPE Aruba Networking 500H Series Unified Hospitality Access Points can be installed on a wall for hotel or residence hall environments or installed with optional desktop stand for tabletop deployment.
  The AP manages with HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of campus, branch, remote, data center, and IoT networks from one dashboard.
  The AP-503H model has three 1 Gbps Ethernet ports (1 x 1 Gbps uplink, 2 x 1 Gbps downlink). The AP-505H model has five Ethernet ports (1 x 2.5 Gbps uplink, 4 x 1 Gbps downlink), supports PoE out on two ports, and includes a USB port.
  Product bundles for remote desktop use include access point, desk mount, power adapter, and power cord (US and EU only).
  Zero Touch Provisioning provides ease of implementation in branch offices and remote sites, without on-site technical expertise.
• Ready for IoT
  The HPE Aruba Networking 500H Series Unified Hospitality Access Points support Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio. The AP-505H model also has an integrated USB port to support a range of IoT devices.
  The AP simplifies deploying and managing IoT location services, asset-tracking services, security solutions, and IoT sensors.
  HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
• Simple and Secure Access
  The HPE Aruba Networking 500H Series Unified Hospitality Access Points offer enhanced security with Dynamic Segmentation to remove time-consuming and error-prone task of managing complex and static VLANs, ACLs and subnets by dynamically assigning policies and keeping traffic protected and separated.
  It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
  WPA3 and Enhanced Open security increases enterprise-level security by providing stronger guest access protections without increasing complexity.
  Trusted Platform Module (TPM) secures credentials, keys, and boot code.
