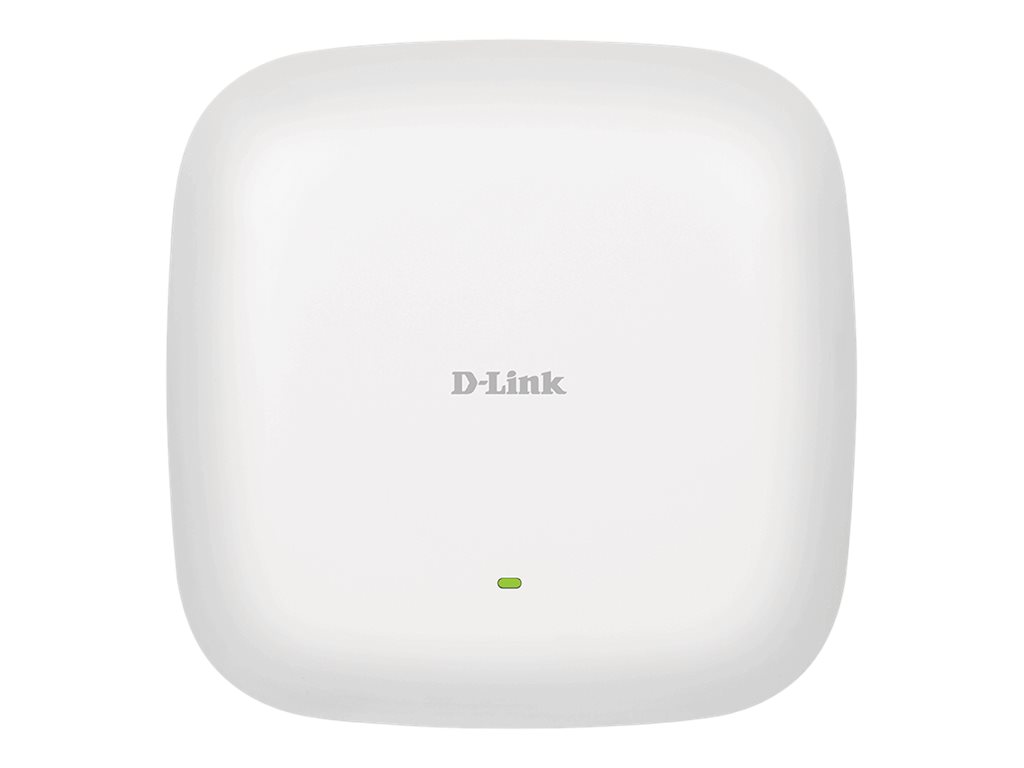

D-Link Nuclias Connect DAP-2720, Radio access point, Wi-Fi 5, 2.4 GHz, 5 GHz, wall / ceiling mountable

Description

The DAP-2720 is built to handle bandwidth-intensive applications involving numerous clients. It delivers a high-speed wireless AC Wave 2 connection reliably with maximum wireless signal rates of up to 2200 Mbps. Performance is further optimized via the Nuclias Connect platform which adjusts the DAP-2720’s channel selection, transmission power, and maximum number of client connections.

• Easy to manage with D-Link’s free management software-based solution, Nuclias Connect
• Superior throughput with tri-band transfer speeds up to 400 Mbps in the 2.4 GHz band and 866 Mbps in the 5 GHz bands
• Gigabit LAN port for high-capacity backhaul to the wired network
• Supports Power over Ethernet (802.3at) for simpler installation with less cable clutter
• Supports WPA2 – Wi-Fi security for more protection
• Supports multiple VLANs for enhanced network management and up to 16 SSID setups
• Quality of Service (QoS) prioritizes time-sensitive traffic for a smoother Wi-Fi experience
• Supports multiple AP modes to ensure optimization based on your network’s needs

• Multi-mode makes the most of your network capabilities
  In order to achieve optimal network performance, the DAP-2720 has several operational modes tailored to best fit the individual needs of your network. Access Point, Wireless Client, WDS (Wireless Distribution System), and WDS with Access Point modes allow for flexible, customizable deployment whatever your requirements.
• Take a load off and let your AP do the hard work
  The DAP-2720’s Load Balancing feature spreads the work load between two or more Access Points to get optimal resource utilization, throughput and response time, while Airtime Fairness helps distribute equal amounts of air time to each connected client. Band Steering auto-connects devices such as smart phones and tablets to the higher-capacity 5 GHz band while allowing devices 2.4 GHz-ready to remain. The result is a steady, consistent connection for each user – the perfect balancing act.
• AP discovery and provisioning
  Nuclias Connect provides direct AP discovery and provisioning when it shares the same Layer-2/Layer-3 network with a given AP, allowing users to find APs and import profiles with minimum effort, which can be applied as needed to groups or individual APs for even more effective configuration.
• Peak performance and discreet deployment with Power over Ethernet
  The DAP-2720’s Power over Ethernet (PoE) function allows for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.
• Make every second count with advanced Quality of Service (QoS)
  The DAP-2720 not only delivers reliable wireless performance with maximum wireless signal rates of up to 400 Mbps in the 2.4 GHz band and 866 Mbps in the 5 GHz bands but, Quality of Service (QoS) support also enhances your network’s efficiency. QoS cleverly prioritizes network traffic so that time-sensitive data, such as VoIP or high-quality video streaming, are unaffected even during bursts of high data traffic. This allows for an all-round smoother, uninterrupted Wi-Fi experience.

Main Specifications

Extended Specifications

General

Networking

Aerial

Expansion / Connectivity

Miscellaneous

Power

Environmental Parameters
