Description

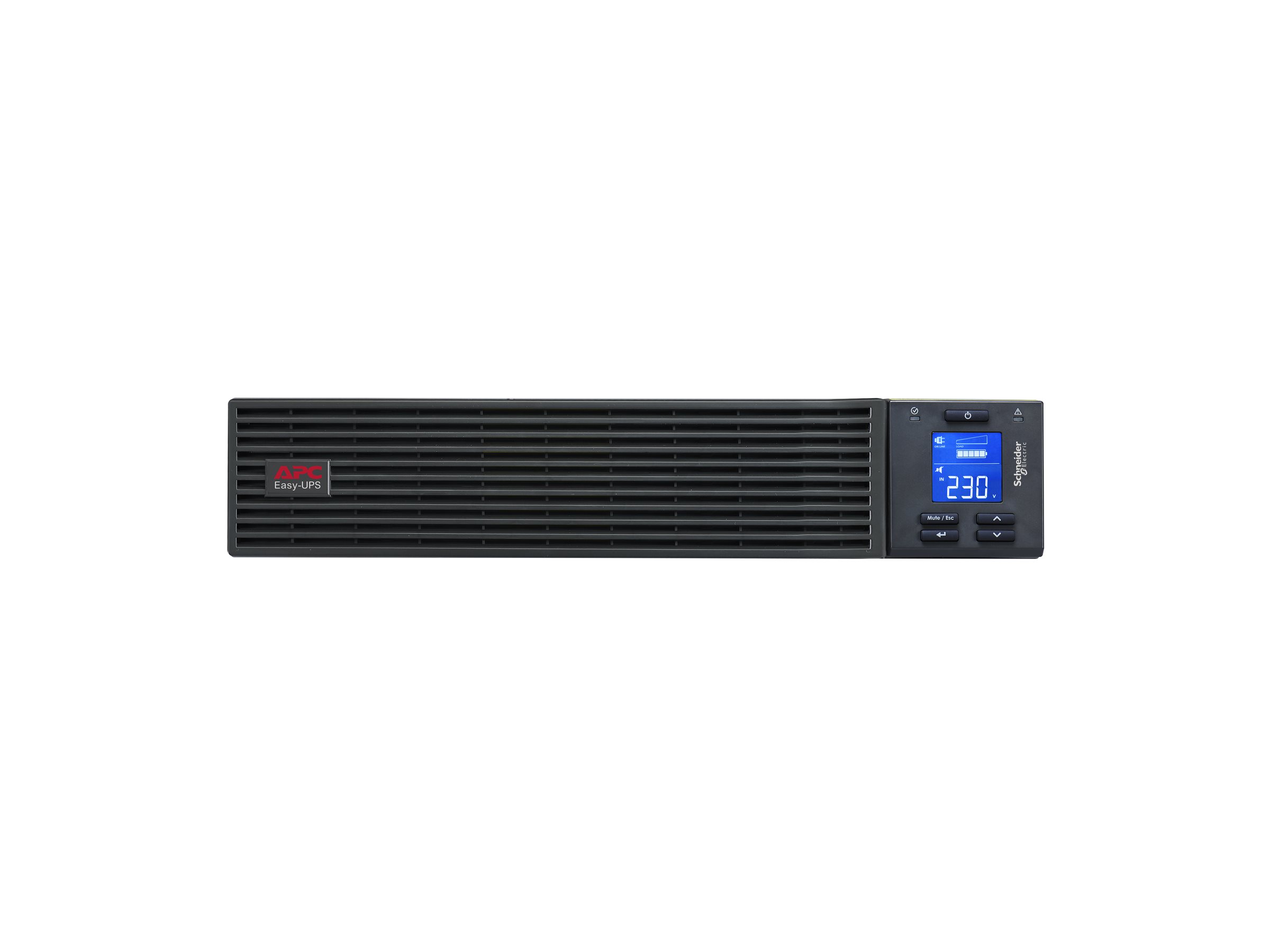

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV202. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
- Intelligent battery management
- USB connection
- Audible alarms
- Intuitive interface
- Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging. - USB connection
Use your PC to access additional power protection and management features for your UPS via the USB port. - Audible alarms
Provide notification of changing utility power and UPS power conditions. - Intuitive interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Main Specifications
Product Description | APC Easy UPS SRV SRV3KRIRK – UPS – 2400 watt – 3000 VA |
Device Type | UPS – rack-mountable |
Rack Size | 19″ – 2U |
Weight | 27.6 kg |
Input Voltage | AC 220/230/240 V |
Output Voltage | AC 220/230/240 V ± 1% |
Power Capacity | 2400 watt / 3000 VA |

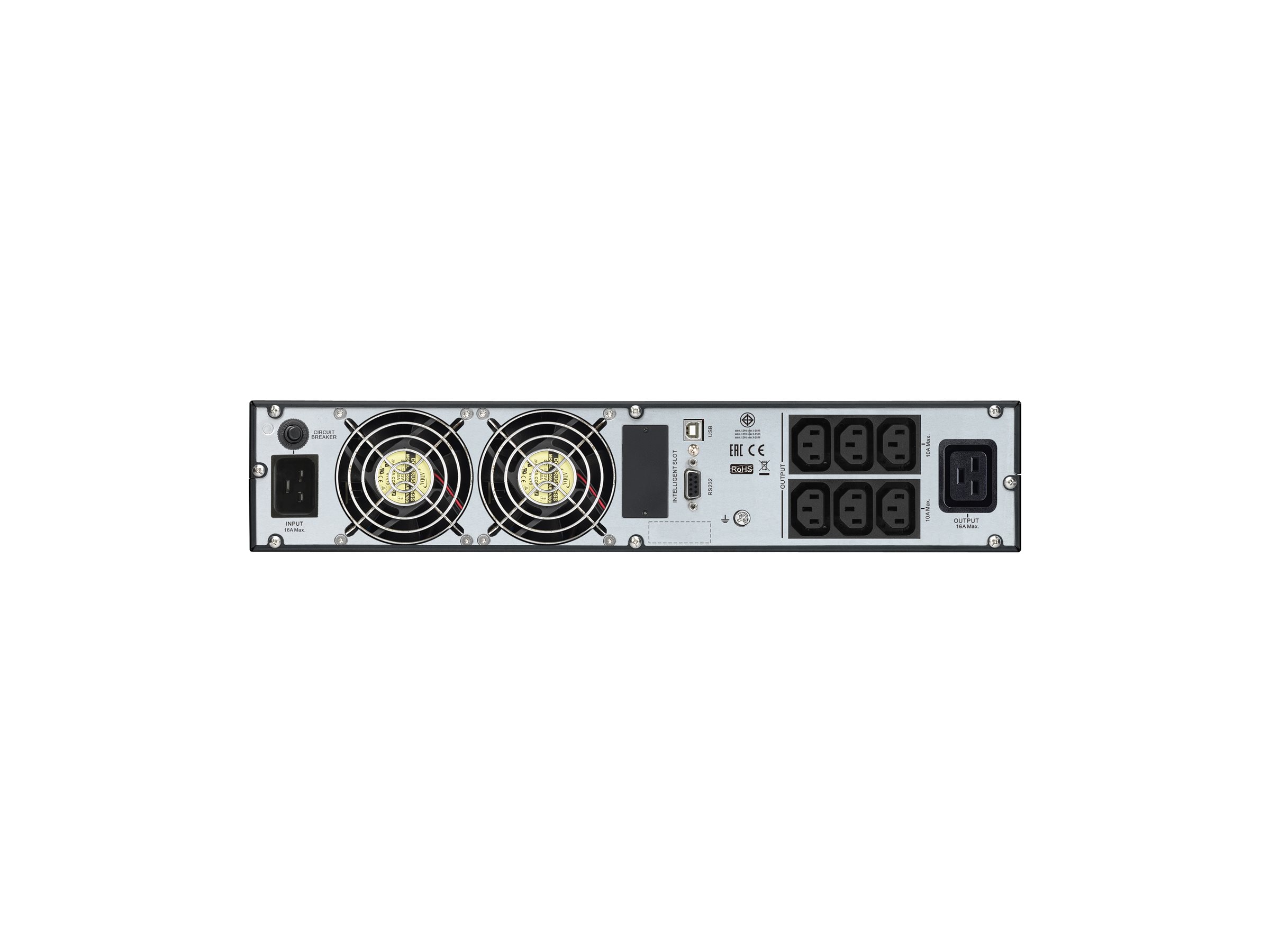

Input Connectors | 1 x power IEC 60320 C14 |
Output connectors | 6 x power IEC 60320 C13
1 x power IEC 60320 C19 |
Battery | Lead Acid – 9 Ah |
Networking | USB, RS-232 |
Included Accessories | Rack mounting rails |
System Requirements | Microsoft Windows 2000/XP/Vista/7/8, Microsoft Windows 2003, Microsoft Windows Server 2008, Linux, UNIX |
Dimensions (WxDxH) | 43.7 cm x 63.2 cm x 8.6 cm |
Documents
Extended Specifications
General
Device Type | UPS – rack-mountable |
|---|
Height (Rack Units) | 2U |
|---|
Rack Size | 19″ |
|---|
Power Device
UPS Technology | On-line |
|---|
Input Voltage | AC 220/230/240 V |
|---|
Input Voltage Range | AC 160 – 280 V |
|---|
Frequency Provided | 50/60 Hz ± 0.5% |
|---|
Frequency Required | 40 – 70 Hz |
|---|
Input Connectors | 1 x power IEC 60320 C14 |
|---|
Power Output Connectors Details | 6 x power IEC 60320 C13
1 x power IEC 60320 C19 |
|---|
Output Voltage | AC 220/230/240 V ± 1% – 50/60 Hz |
|---|
Power Capacity | 2400 watt / 3000 VA |
|---|
Output Waveform | Sinewave |
|---|
Surge Suppression | Yes |
|---|
Surge Energy Rating | 600 joules |
|---|
Circuit Protection | Circuit breaker |
|---|
Efficiency | 88% |
|---|
Power Factor (PF) | 0.95 |
|---|
Battery
Technology | Lead Acid |
|---|
Voltage Provided | 72 V |
|---|
Capacity | 9 Ah |
|---|
Features | Maintenance free, sealed |
|---|
Networking
Remote Management Interface | USB, RS-232 |
|---|
Expansion / Connectivity
Interfaces | 1 x management (USB) – 4 pin USB Type B
1 x management (RS-232) – 9 pin D-Sub (DB-9) |
|---|
Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |
|---|
Miscellaneous

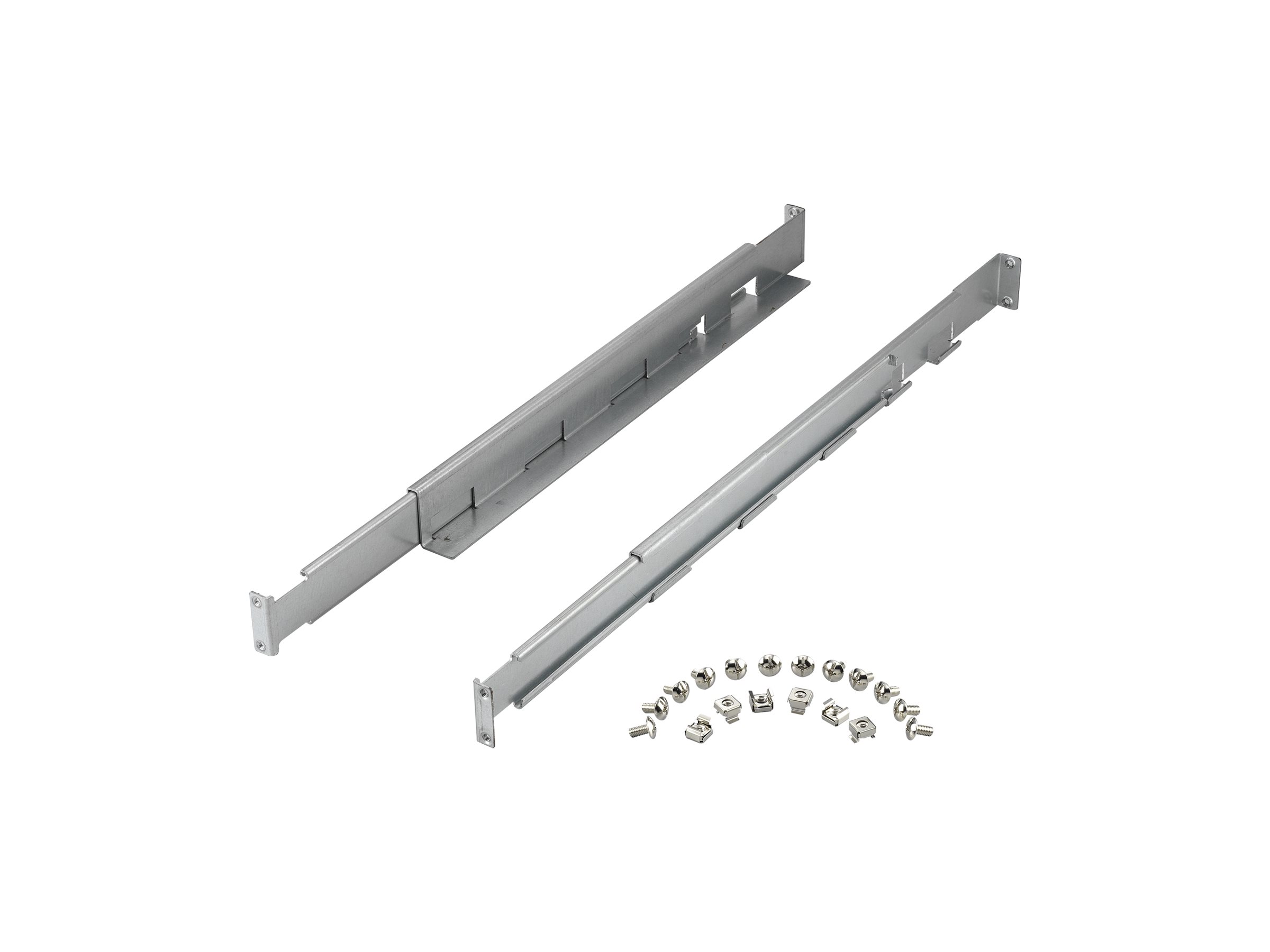

Included Accessories | Rack mounting rails |
|---|
Cables Included | USB cable – external
Serial cable – external |
|---|
Rack Mounting Kit | Included |
|---|
Features | LCD display, internal bypass, Green Function, audible alarm, LED indicators, automatic self-test, Eco-Mode |
|---|
Compliant Standards | IP20, REACH, RoHS |
|---|
Software / System Requirements
Software Included | APC Easy Ups Online SNMP Shutdown Wizard |
|---|
OS Required | Microsoft Windows 2000/XP/Vista/7/8, Microsoft Windows 2003, Microsoft Windows Server 2008, Linux, UNIX |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 0 – 95% (non-condensing) |
|---|
Sound Emission | 50 dBA |
|---|
Dimensions & Weight
Width | 43.7 cm |
|---|
Depth | 63.2 cm |
|---|
Height | 8.6 cm |
|---|
Weight | 27.6 kg |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 56.9 cm |
|---|
Shipping Depth | 79.5 cm |
|---|
Shipping Height | 22.9 cm |
|---|
Shipping Weight | 29 kg |
|---|
