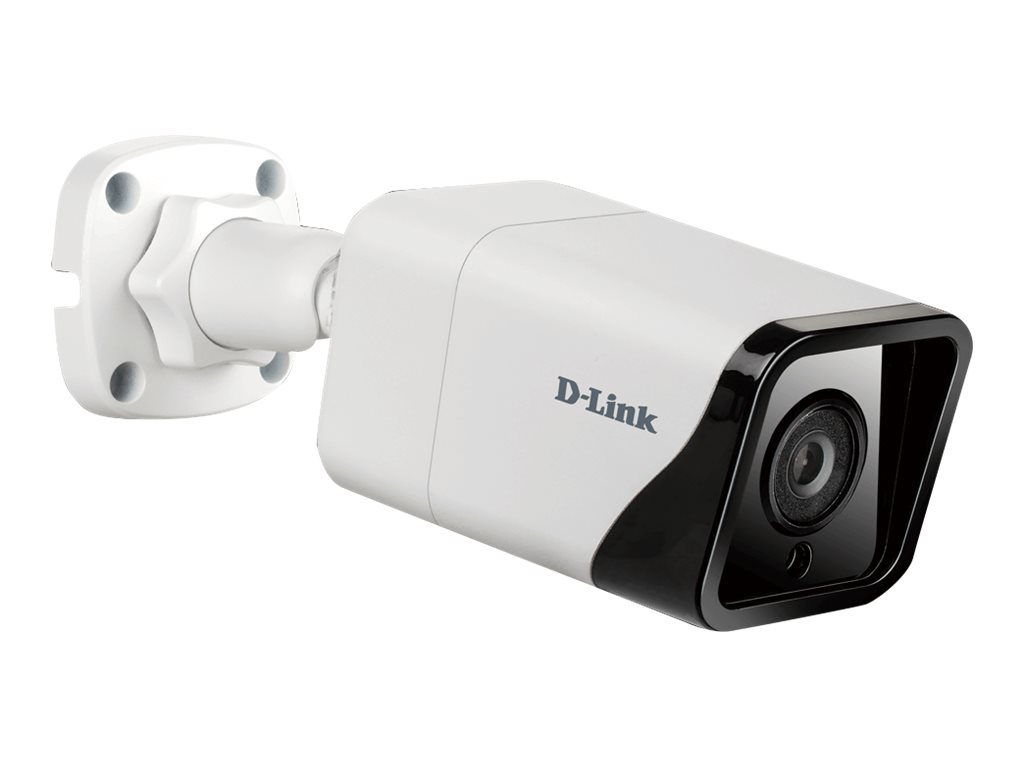

D-Link DCS 4712E, Network surveillance camera, bullet, outdoor, weatherproof, colour (Day&Night), 2 MP, 1920 x 1080, LAN 10/100, H.265, H.264, MJPEG, PoE Class 3
$360.36 inc GST
Available on back-order
Ships from Auckland
- Allow 1-2 days for delivery to the North Island
- Allow 2-3 days for delivery to the South Island
- add 1-2 days if you are rural
- Collection can be arranged
Description
- 1/2.8″ 2-megapixel progressive CMOS sensor captures high-quality footage
- Max Resolution of up to 1920 x 1080 at 30 fps
- High-quality fixed lens with 2.8 mm focal length
- Wide Dynamic Range (WDR) image enhancement improves footage quality in high contrast lighting conditions
- H.265 compression strikes the perfect balance between high image quality and bandwidth efficiency
- Motion Detection not only saves bandwidth, it also makes reviewing footage much less burdensome
- Block out or mask sensitive areas with the Privacy Mask
- Built-in IR LED illuminator with a 30m range for surveillance even in the dead of night
- Ruggedized with an IP66 rating, making it dust tight and resistant to water
- Fast Ethernet port with PoE facilitates easy integration to your network
- All aspects of your camera are easily managed with the free D-ViewCam Video Management Software
Main Specifications
Product Description | D-Link DCS 4712E – network surveillance camera – bullet |
Device Type | Network surveillance camera – fixed – bullet – outdoor – weatherproof |
Dimensions (WxDxH) | 18.76 cm x 6.4 cm x 6.4 cm |
Weight | 500 g |
Connectivity Technology | Wired |
Camera | Colour – Day&Night |
Max Resolution | 1920 x 1080 |
Frame Rate (max) | 30 frames per second |
Motion Detection | Yes |
Optical Sensor Type | CMOS – 1/2.8″ – 2 MP |
Minimum Illumination | 0.05 lux – colour – F2.0 – AGC on 0 lux – B&W – F2.0 – infrared LEDs on |
Focal Length | 2.8 mm |
Focus Adjustment | (min distance 50 cm) |
Lens Iris | F/2.0 |
Interfaces | Ethernet 10Base-T/100Base-TX |
Voltage | PoE Class 3 |
Features | Wide Dynamic Range (WDR), Privacy Mask Function, ruggedised, 2D Noise Reduction Technology, 3D Noise Reduction Technology, Corridor mode, ONVIF (Profile S) support, ICR filter, light sensor, auto AGC, brightness control, contrast control, saturation control, sharpness control, shutter adjustment, reset button, digital zoom, ePTZ, night vision |
Environmental Parameters (operating) | -30 °C – 50 °C; 90% (non-condensing) relative humidity |
Documents
Extended Specifications
General
Device Type | Network surveillance camera |
|---|---|
Form Factor | Bullet |
Connectivity Technology | Wired |
Width | 18.76 cm |
Depth | 6.4 cm |
Height | 6.4 cm |
Weight | 500 g |
Camera
Type | Colour – Day&Night – fixed – outdoor – weatherproof |
|---|---|
Digital Video Format | H.265, H.264, MJPEG |
Max Digital Video Resolution | 1920 x 1080 |
Motion Detection | Yes |
Digital Zoom | 18 |
Minimum Illumination | 0.05 lux – colour – F2.0 – AGC on 0 lux – B&W – F2.0 – infrared LEDs on |
Infrared LEDs | Yes |
Infrared Distance | 30 m |
Video Capture | 1920 x 1080 @ 30 fps |
Features | Wide Dynamic Range (WDR), Privacy Mask Function, ruggedised, 2D Noise Reduction Technology, 3D Noise Reduction Technology, Corridor mode, ONVIF (Profile S) support, ICR filter, light sensor, auto AGC, brightness control, contrast control, saturation control, sharpness control, shutter adjustment, reset button, digital zoom, ePTZ, night vision |
Image Sensor
Type | 2 MP CMOS 1/2.8″ |
|---|
Lens Construction
Focal Length | 2.8 mm |
|---|---|
Lens Iris | F/2.0 |
Min Focus Distance | 50 cm |
Horizontal Field of View (degree) | 106.8 |
Vertical Field of View (degree) | 58 |
Diagonal Field of View (degree) | 126 |
Interfaces
Network Interface | Ethernet 10Base-T/100Base-TX |
|---|---|
Network Protocols | IPv4, HTTP, HTTPS, RTSP, RTP, RTCP, ARP, DDNS, DHCP, DNS, FTP, ICMP, NTP, PPPoE, SMTP, SNMP 1, SNMP 2c, SNMP 3, TCP/IP, UDP/IP |
Expansion / Connectivity
Ports | LAN/power – RJ-45 |
|---|---|
Supported Memory Cards | microSD Card |
Miscellaneous
Compliant Standards | IEEE 802.3af, IP66, RCM, FCC |
|---|
Power
Power Requirements | PoE Class 3 |
|---|---|
Power Device | Power adapter – external AC 120/230 V (50/60 Hz) 8 watt |
Environmental Parameters
Min Operating Temperature | -30 °C |
|---|---|
Max Operating Temperature | 50 °C |
Relative Humidity (operating) | 90% (non-condensing) |
Additional information
| Manufacturer |
|---|
