APC Smart-UPS SRT 2200VA RM, UPS (rack-mountable / external), AC 220/230/240 V, 1.98 kW, 2200 VA, RS-232, output connectors: 8, PFC, 3U, black
$5,910.81 inc GST
✓ In Stock - 2 available
✓ Free NZ Delivery
2 in stock
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C20 input, 6x IEC 320 C13 and 2x IEC 320 C19 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- 2200VA/1980W double-conversion on-line pure sine wave 3U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications

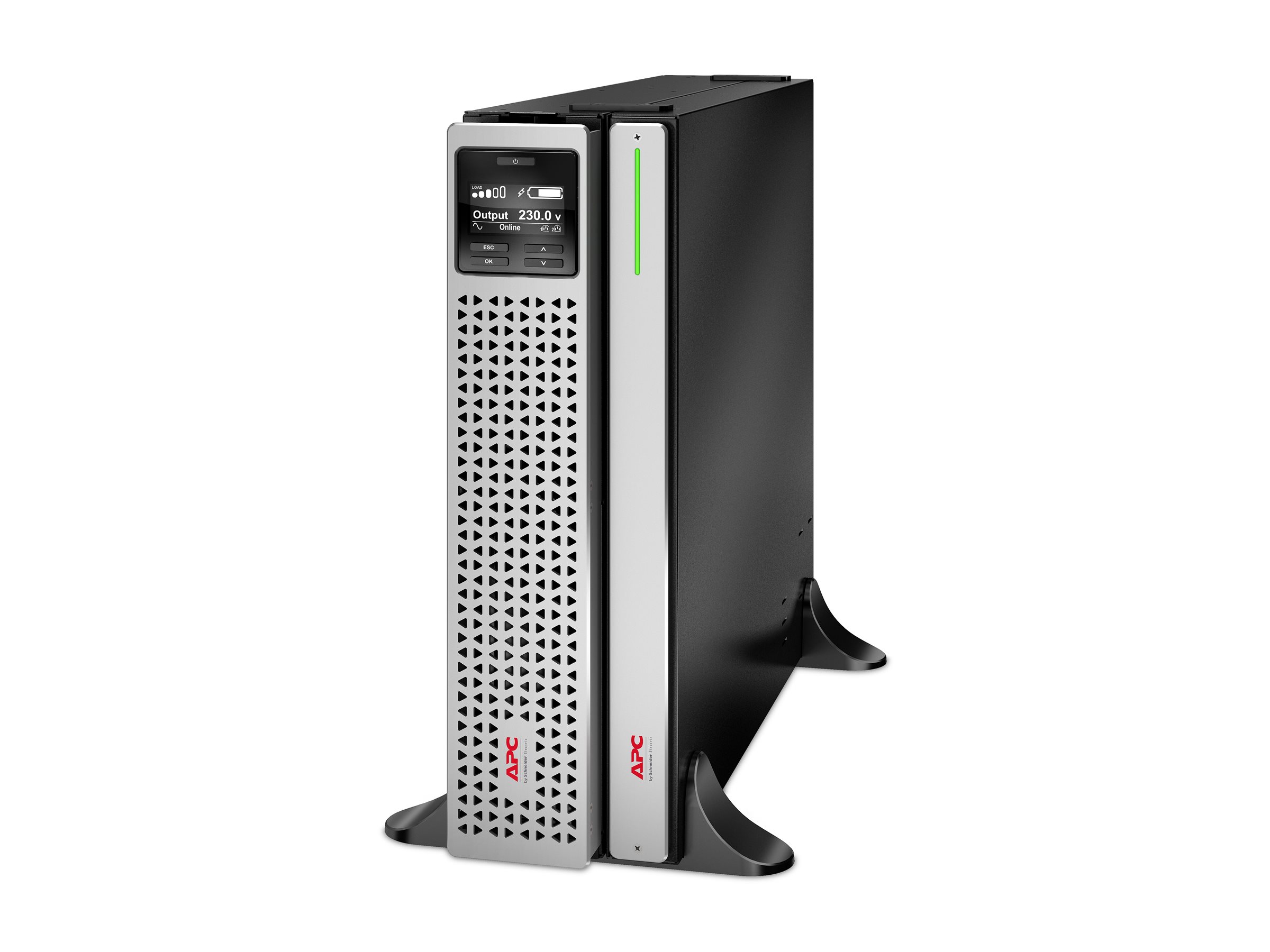

- Rack/Tower convertible (rail kit included)
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Delivers clean power with zero transfer time for critical or sensitive devices

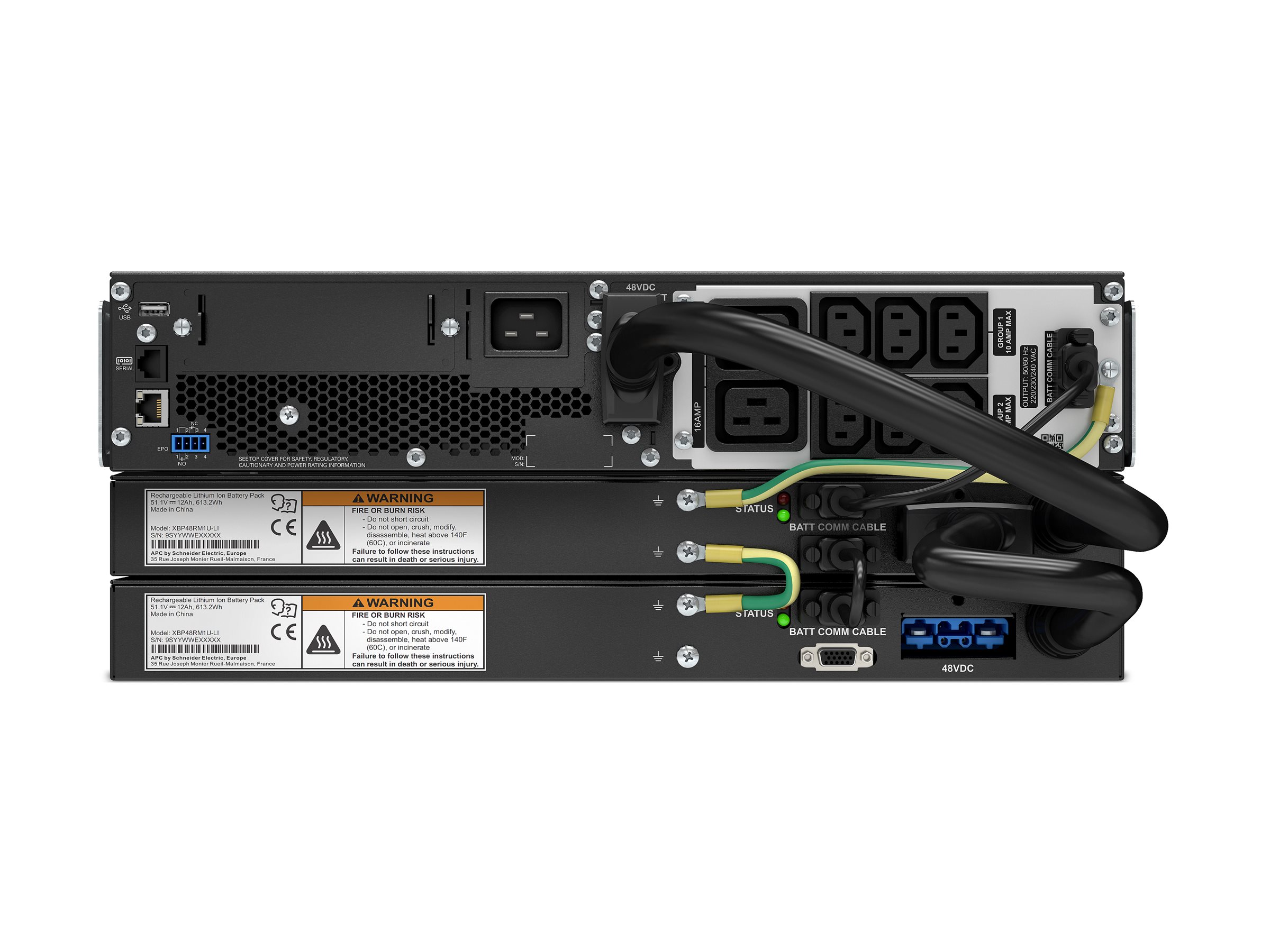

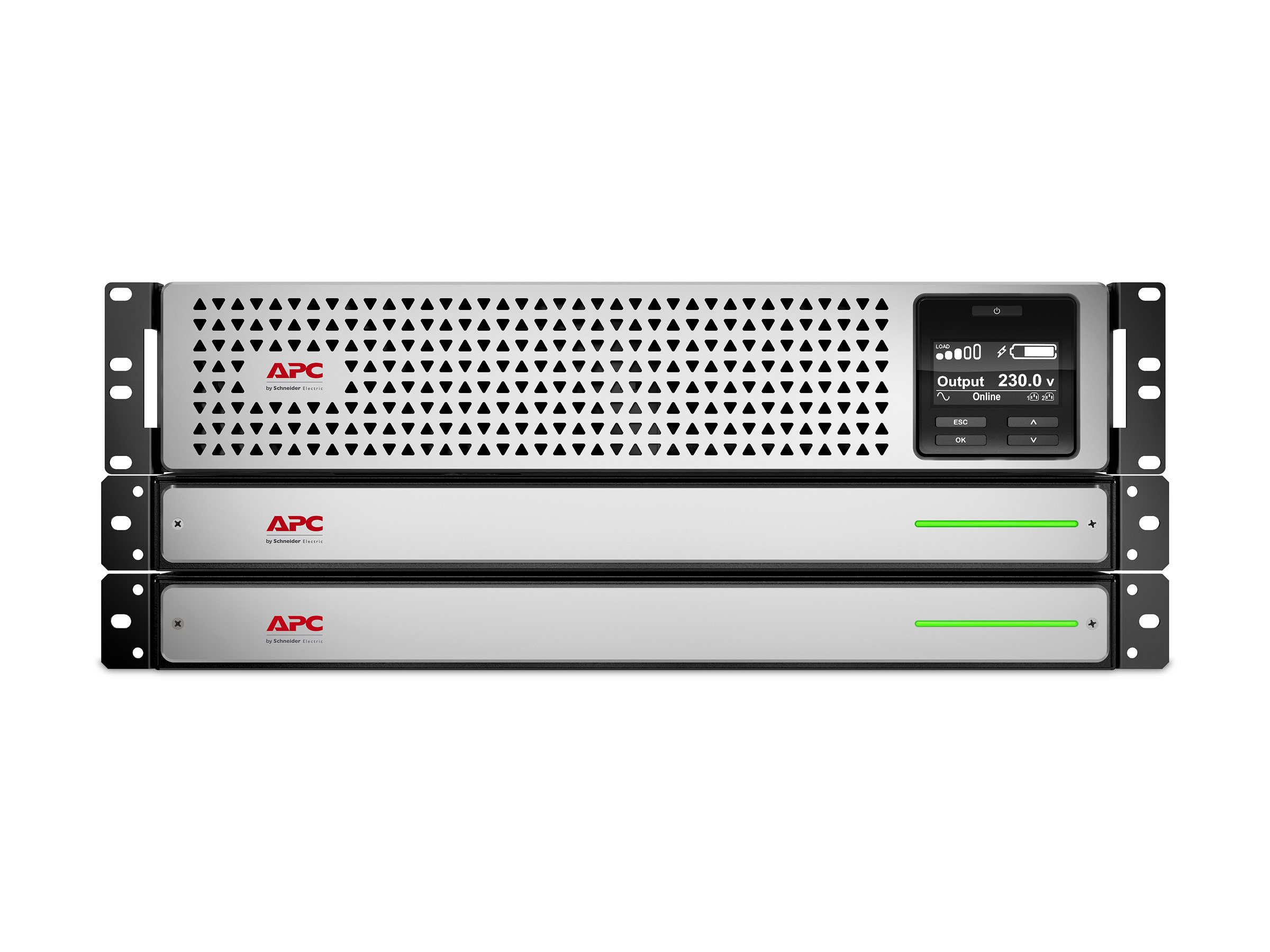

- Add up to 10 external battery packs (XBP48RM1U2-Li) for extended runtime
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- Peace of mind with a 5-year warranty on UPS and battery
- LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms. - ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection. - Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance - Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
What’s in the Box
- CD with software
- communication cable
- documentation CD
- installation guide
- removable support feet
- USB cable
- warranty card
Main Specifications
Product Description | APC Smart-UPS SRT 2200VA RM – UPS – 1.98 kW – 2200 VA |
Device Type | UPS – Power Factor Correction (PFC) – rack-mountable / external |
Rack Size | 3U |
Input Voltage | AC 220/230/240 V |
Output Voltage | AC 220/230/240 V ± 2% |
Power Capacity | 1.98 kW / 2200 VA |
Input Connectors | 1 x power IEC 60320 C20 |
Output connectors | 6 x power IEC 60320 C13 2 x power IEC 60320 C19 |
Battery | Lithium ion |
Run Time (Up To) | 13 min at full load |
Networking | RS-232 |
Included Accessories | Tower stand |
Colour | Black |
Dimensions (WxDxH) | 43.2 cm |
Documents
- Product Data Sheet / Brochure
- User Manual
- User Manual
- User Manual
- Product Data Sheet / Brochure
- User Manual
Extended Specifications
General
Device Type | UPS – Power Factor Correction (PFC) – rack-mountable / external |
|---|---|
Height (Rack Units) | 3U |
Colour | Black |
Power Device
UPS Technology | On-line |
|---|---|
Input Voltage | AC 220/230/240 V |
Input Voltage Range | AC 160 – 275 V |
Frequency Provided | 50/60 Hz ± 3Hz |
Frequency Required | 40 – 70 Hz |
Input Connectors | 1 x power IEC 60320 C20 |
Power Output Connectors Details | 6 x power IEC 60320 C13 2 x power IEC 60320 C19 |
Output Voltage | AC 220/230/240 V ± 2% – 50/60 Hz |
Power Capacity | 1.98 kW / 2200 VA |
Output Waveform | Sinewave |
Surge Suppression | Yes |
Surge Energy Rating | 432 joules |
Circuit Protection | Circuit breaker |
Efficiency | 90% at 100% Load |
Battery
Technology | Lithium ion |
|---|---|
Run Time (Up To) | 13 min at full load |
Networking
Remote Management Interface | RS-232 |
|---|
Expansion / Connectivity
Interfaces | 1 x management (RS-232) – RJ-45 1 x EPO (emergency power off) 1 x USB – 4 pin USB Type A |
|---|---|
Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
Miscellaneous
Included Accessories | Tower stand |
|---|---|
Cables Included | Power cable 1.83 m USB cable – external |
Features | LCD display, Eco-Mode, hot-swappable batteries, auto restart, internal bypass, LED indicators, generator compatible, cold-start function, audible alarm, energy metre |
Compliant Standards | IP20, EAC, RoHS, REACH |
Software / System Requirements
Software Included | APC PowerChute Business Edition |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 0 – 95% (non-condensing) |
Sound Emission | 50 dBA |
Dimensions & Weight
Height | 43.2 cm |
|---|
