Ergotron HX, Mounting kit (articulating arm, desk clamp mount, extender arm, grommet mount, pivot), Constant Force Technology, for LCD display/ curved LCD display, matte black, screen size: up to 49"

Manufacturer:Ergotron
Part Number:45-475-224
Warranty:10 Years
PPID:AB07197

$434.56 inc GST

Free Delivery

Available on back-order

Out of Stock! Email us for a lead time or ETA

Ships from Auckland

Ships from Auckland

  • Allow 1-2 days for delivery to the North Island
  • Allow 2-3 days for delivery to the South Island
  • add 1-2 days if you are rural
  • Collection can be arranged

We are currently experiencing shipping delays from this supplier warehouse

Description

Choose a monitor arm that’s as adaptable as you. With the HX Desk Monitor Arm, you can easily reposition large monitors weighing up to 42 lbs (19.1 kg) using patented Constant Force Technology. It enhances your workspace with a sleek design, and an optional dual or triple monitor bow kit ups your screen count and productivity. It’s BIFMA level 2 certified based on the arm’s low environmental and social impact.

  • Comfortable fit
  • Rotation stop
  • Saves space
  • Sleek build
  • Sustainable choice
  • Quality design
  • Comfortable fit
    Offers ergonomic monitor positioning using patented Constant Force Technology.
  • Rotation stop
    Avoid hitting cube walls with a rotation-stop on the base.
  • Saves space
    Places screen in the best view to tackle each to-do.
  • Sleek build
    Cables stay hidden under the arm and through the extension.
  • Sustainable choice
    BIFMA level 2 certified for a low environmental and social impact.
  • Quality design
    Built for thousands of movements by passing 10,000-cycle test.

Main Specifications

Product Description

Ergotron HX mounting kit – Constant Force Technology – for LCD display/ curved LCD display – matte black

Product Type

Mounting kit (Constant Force Technology)

Mounting Components

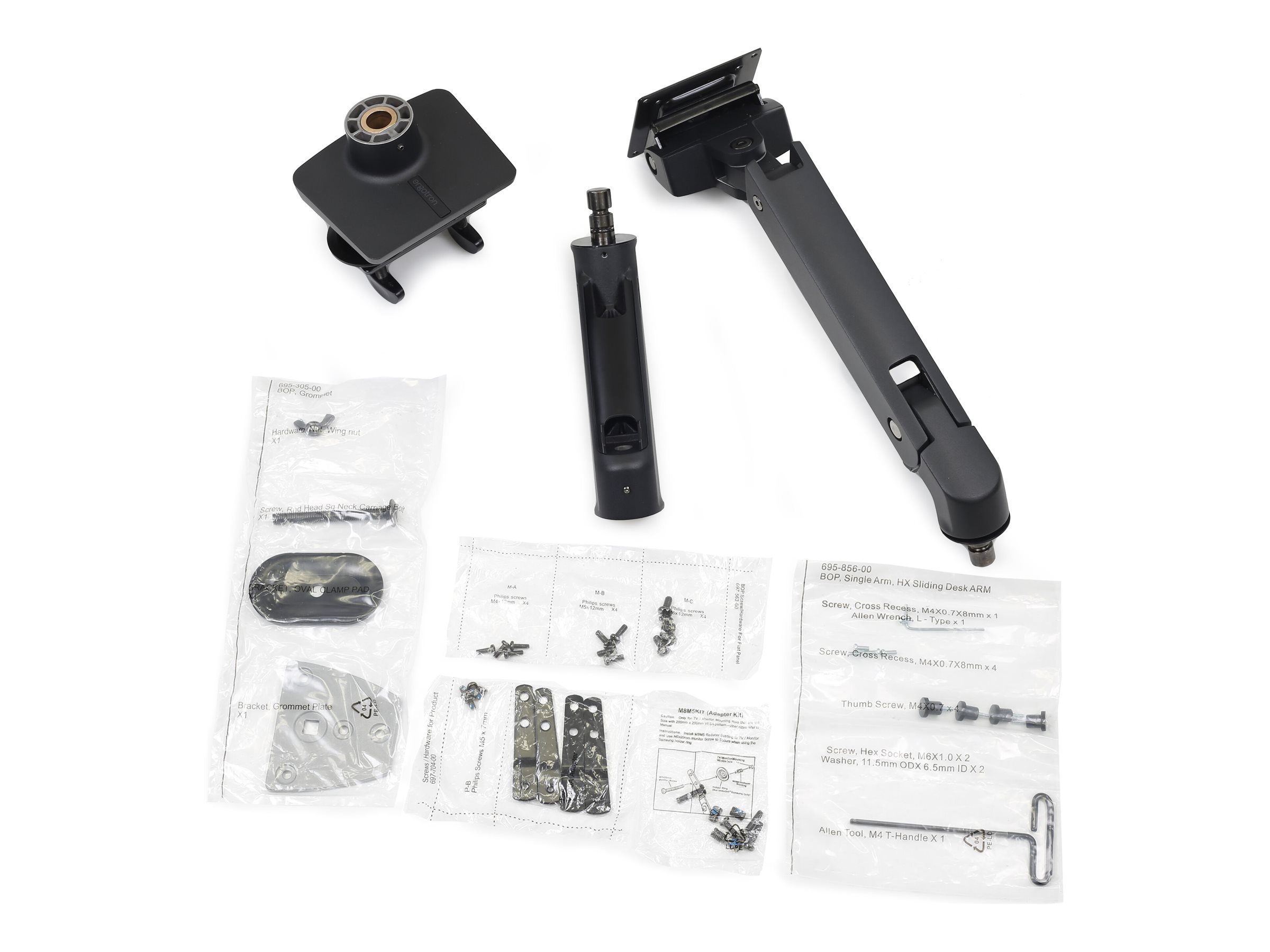

Articulating arm, desk clamp mount, extender arm, grommet mount, pivot

Tilt

-5° to 70°

Pan

180°

Lift

29.2 cm

Rotation

360°

Adjustments

Height, pan, tilt, swivel, rotation, depth

Weight

6.9 kg

Recommended Use

LCD display/ curved LCD display

Recommended Display Size

Up to 49″

VESA Mounting Interface

100 x 100 mm, 75 x 75 mm, 200 x 200 mm, 200 x 100 mm

Max Load Weight

19.1 kg

Colour

Matte black

Package Content

Mounting hardware

Documents

Extended Specifications

General

Weight

6.9 kg

Colour

Matte black

Package Content

Mounting hardware

AV Furniture

Type

Mounting kit

Mounting Components

Articulating arm, desk clamp mount, extender arm, grommet mount, pivot

Design

Constant Force Technology

Recommended Use

LCD display/ curved LCD display

VESA Mounting Interface

100 x 100 mm, 75 x 75 mm, 200 x 200 mm, 200 x 100 mm

Cable Management

Integrated cable management

Recommended Display Size

Up to 49″

Tilt

-5° to 70°

Pan

180°

Lift

29.2 cm

Rotation

360°

Adjustments

Height, pan, tilt, swivel, rotation, depth

Max Load Weight

19.1 kg

Min Load Weight

9.1 kg

Details

Portrait orientation, landscape orientation

Dimensions & Weight Details

Shipping Dimensions (WxDxH) / Weight

30.5 cm x 48.8 cm x 17.8 cm / 8.3 kg
