Description
With advanced HomePlug AV2 MIMO, the TL-PA9020p delivers a high speed of up to 2000Mbps over Powerline to provide superior network performance that supports all of your online needs. With a lag-free connection, you will never miss out again.
The TL-PA9020p creates fast, high performance wired connections that support all of your favorite devices, like 4K HDTV. Now you can plug in to enjoy an exclusive fast lane out of a crowded network without slowing down.
- HomePlug AV2 standard compliant, high-speed data transfer rates of up to 2000Mbps, supports all your online needs
- 2X2 MIMO with Beamforming establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability
- 2 gigabit ports create secure wired networks for desktops, smart TVs or games consoles
- Integrated power socket ensures no power outlet goes to waste
- Plug and play, no configuration required
- Patented Power-Saving Mode automatically reduces power consumption by up to 85%
- Take your powerline network to the next level
With advanced HomePlug AV2 MIMO, the TL-PA9020p delivers a high speed of up to 2000Mbps over Powerline to provide superior network performance that supports all of your online needs. With a lag-free connection, you will never miss out again. - An exclusive fast lane for your favorite devices
The TL-PA9020p creates fast, high performance wired connections that support all of your favorite devices, like 4K HDTV. Now you can plug in to enjoy an exclusive fast lane out of a crowded network without slowing down. - Fluid streaming and gaming with 2X2 MIMO
2X2 MIMO with Beamforming Technology significantly improves speeds, especially during peak hours. - More stable connections
2X2 MIMO is like adding extra lanes to a highway. It establishes multiple simultaneous connections for you to enjoy higher speeds and greater stability. - Enhanced long distance performance
2X2 MIMO with Beamforming Technology also offers the benefit of improved coverage throughout the home, particularly for previously hard to reach outlets. - Wiring up with Gigabit speeds

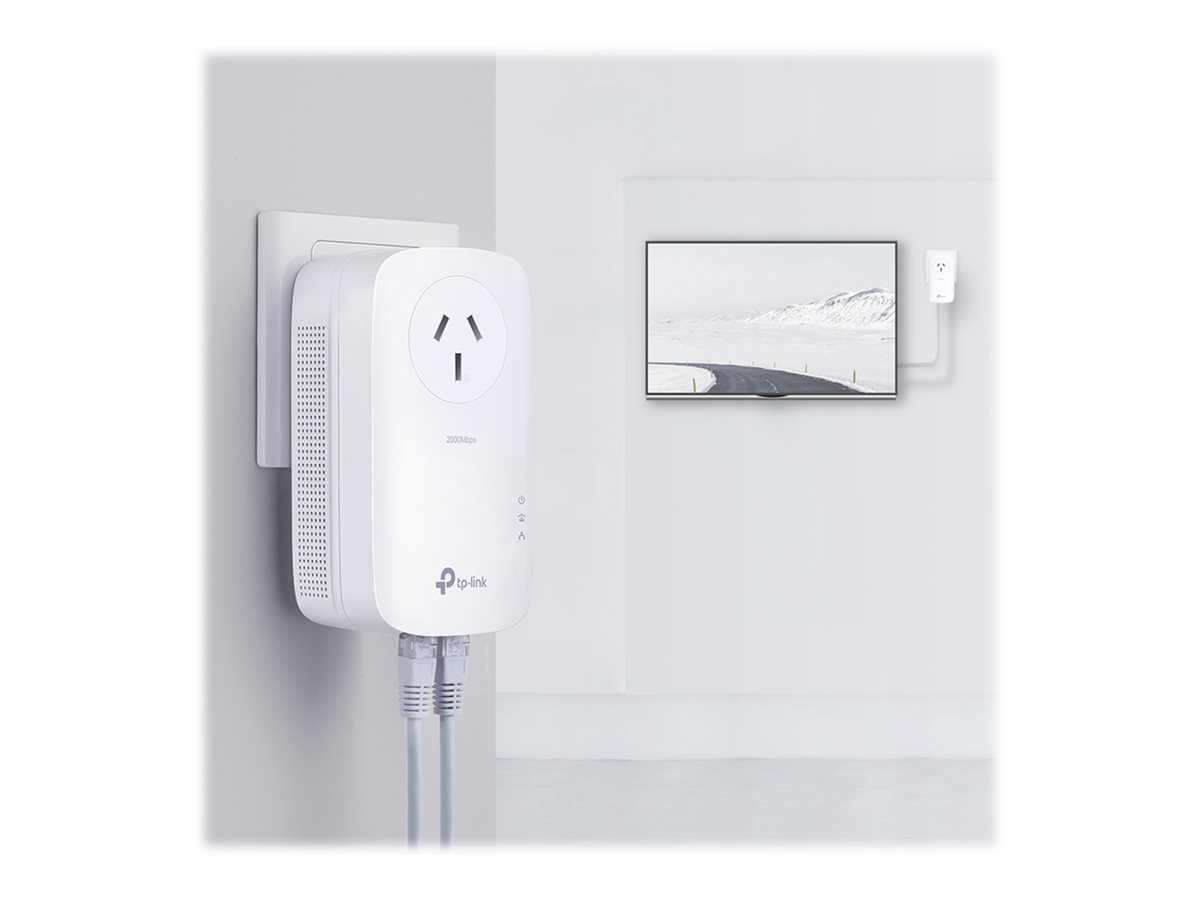

Connect to Gigabit speeds for your smart TVs, game consoles, computers and network attached storage devices. Just use an Ethernet cable to attach your devices to the Powerline adapter to get started! - No power outlet is going to waste
The integrated power socket means that you can still get power from the outlet for your other devices. Simply plug your device into the integrated socket the same way you would with a normal wall outlet. The built-in noise filter also helps to eliminate electrical signal noise that might otherwise affect powerline transmission performance.
Main Specifications

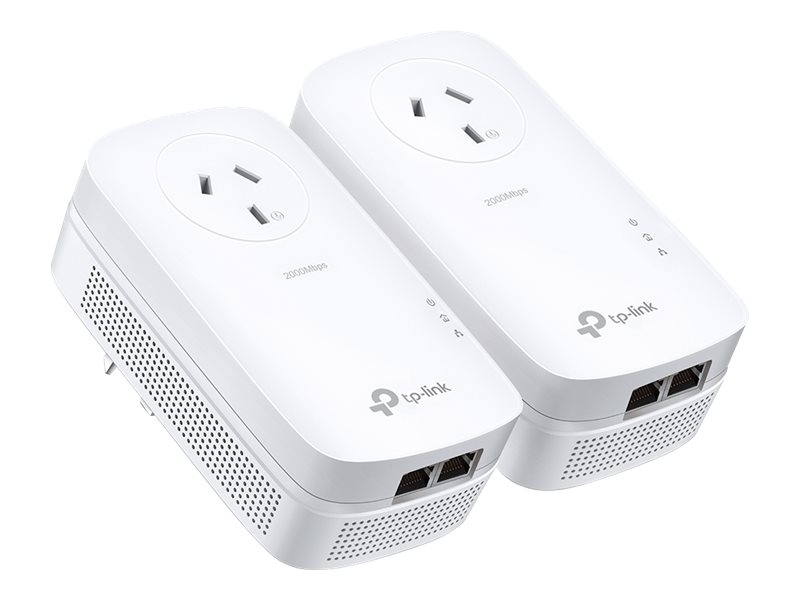

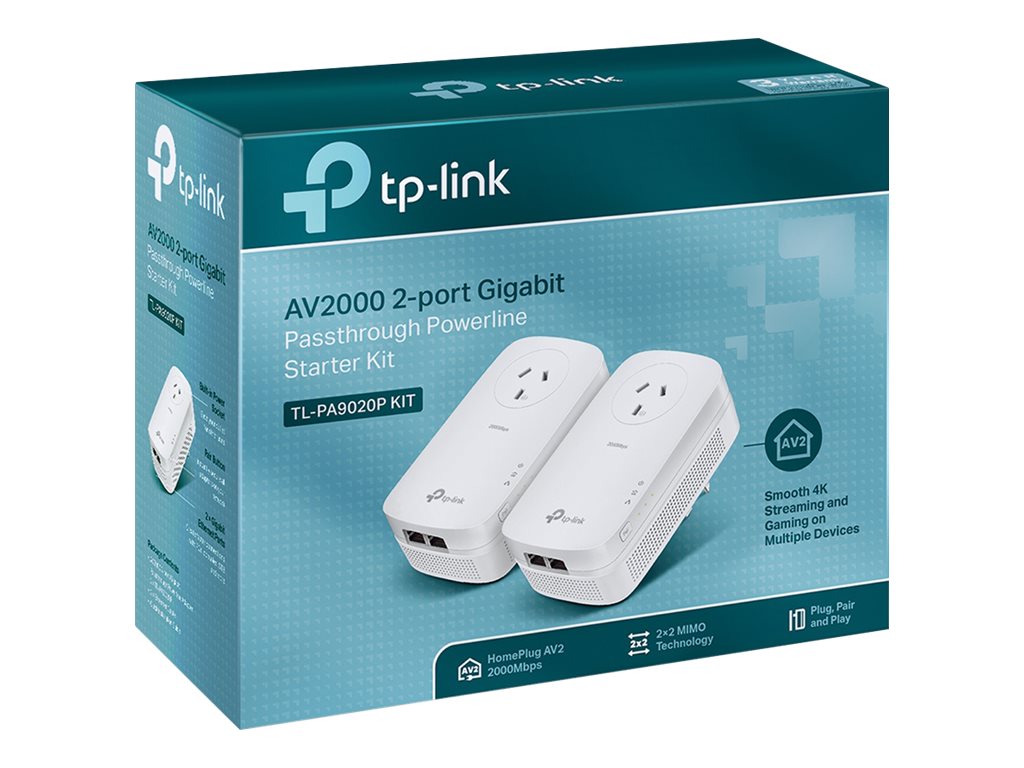

Product Description | TP-Link Powerline TL-PA9020P – V4 – Starter Kit – powerline adapter kit – wall-pluggable |
Device Type | Powerline adapter kit – 2-port switch (integrated) |
Packaged Quantity | 2 (specifications are for single item) |

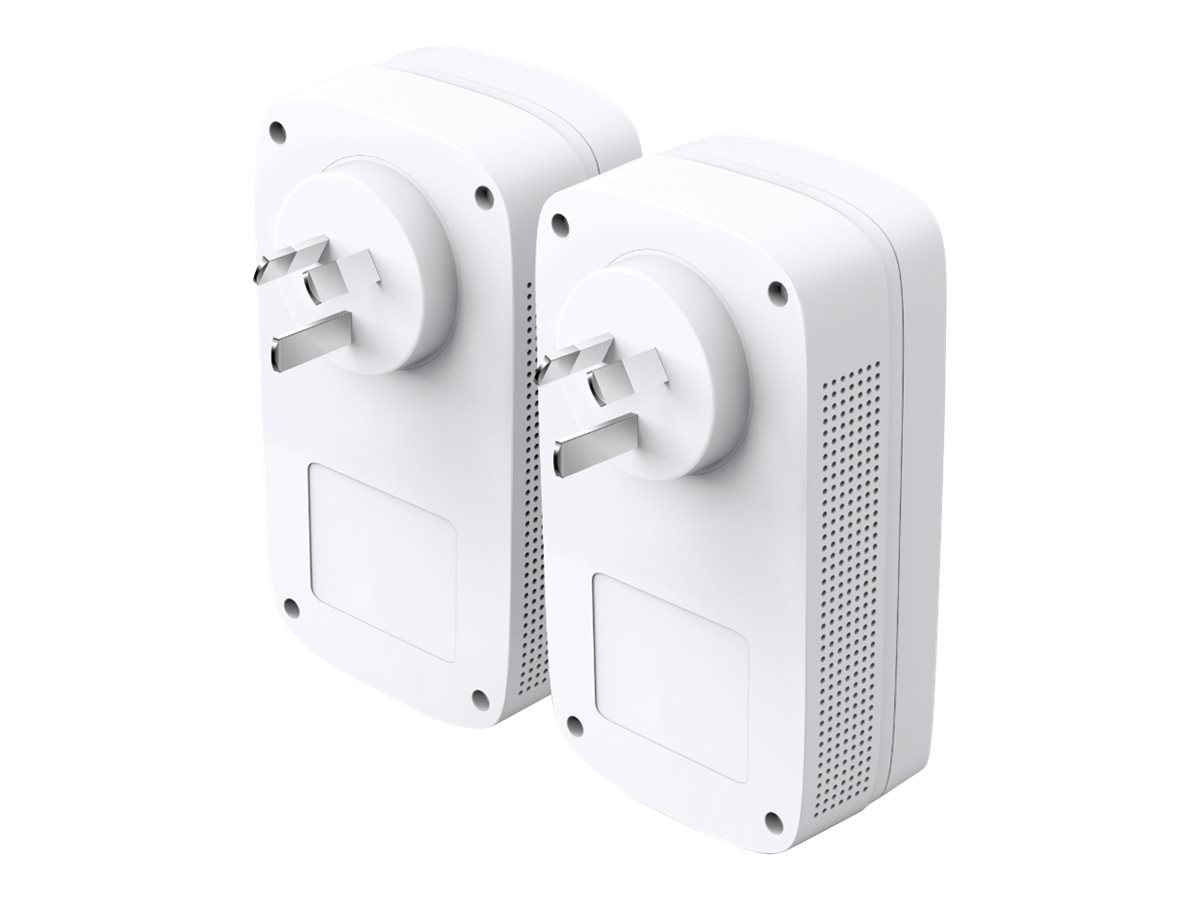

Enclosure Type | Wall-pluggable |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901 |
Data Transfer Rate | 2000 Mbps |
Features | QoS, ToS, beamforming technology, 2×2 MIMO technology, pair button |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, HomePlug AV, HomePlug AV 2.0, IEEE 1901 |
Dimensions (WxDxH) | 7.2 cm x 4.2 cm x 13.1 cm |
Documents
Extended Specifications
General
Packaged Quantity | 2 (specifications are for single item) |
|---|
Device Type | Powerline adapter kit – 2-port switch (integrated) |
|---|
Enclosure Type | Wall-pluggable |
|---|
Connectivity Technology | Wired |
|---|
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901 |
|---|
Data Transfer Rate | 2000 Mbps |
|---|
Max Range Indoors | 300 m |
|---|
Encryption Algorithm | 128-bit AES |
|---|
Features | QoS, ToS, beamforming technology, 2×2 MIMO technology, pair button |
|---|
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, HomePlug AV, HomePlug AV 2.0, IEEE 1901, Plug and Play, RoHS |
|---|
Built-in Devices | Power outlet |
|---|
Status Indicators | Port status, power, powerline |
|---|
Line Properties
Expansion / Connectivity
Interfaces | LAN: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45
1 x HomePlug AV 2.0 |
|---|
Power
Power Device | Internal power supply |
|---|
Power Consumption Operational | 5.8 watt |
|---|
Miscellaneous
Cables Included | 2 x network cable – 2 m |
|---|
Dimensions & Weight
Width | 7.2 cm |
|---|
Depth | 4.2 cm |
|---|
Height | 13.1 cm |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
