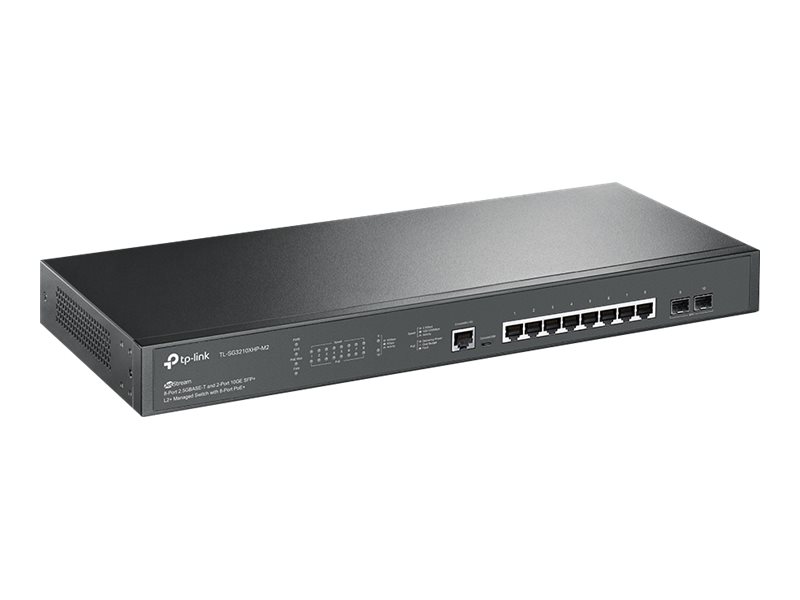

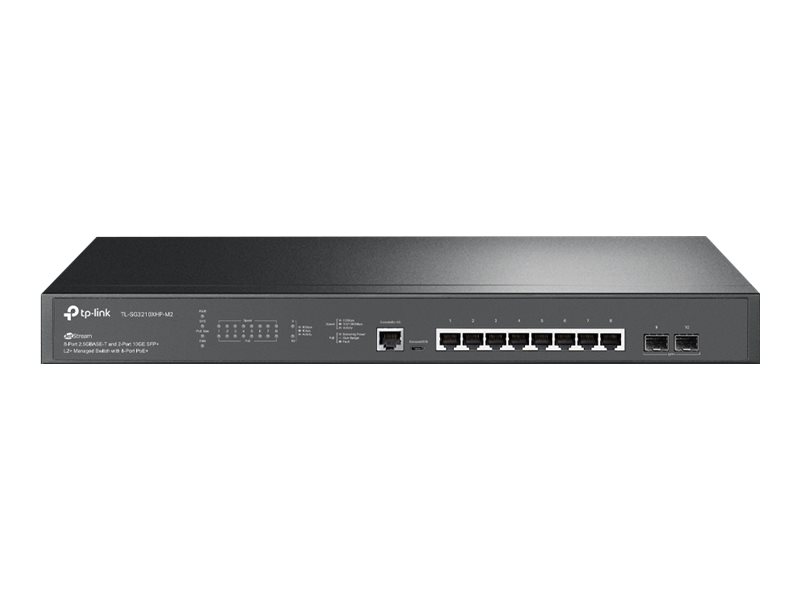

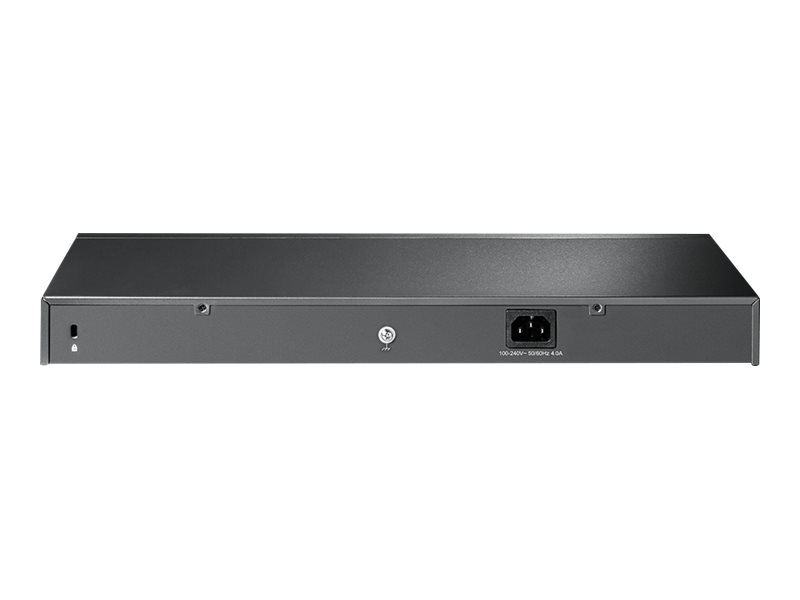

TP-Link JetStream TL-SG3210XHP-M2, V1, switch, Managed, 8 x 10/100/1000 + 2 x SFP+, rack-mountable, PoE+ (240 W)

Description

The TP-Link JetStream TL-SG3210XHP-M2 is a versatile and robust switch designed for high-demand networking environments. With an extensive range of features, it is suited for businesses looking to enhance network efficiency. The switch supports advanced protocols including IGMP snooping and VLAN capabilities, ensuring optimal data flow and reduced network congestion. Additionally, comprehensive management options such as SNMP and RMON facilitate remote monitoring, making it easier to manage network infrastructure remotely.
Operating in varying conditions, this switch handles temperatures ranging from 0 °C to 45 °C and supports storage temperatures from -40 °C to 70 °C. With a 10 Gbit LAN uplink featuring multiple interfaces and a significant PoE budget of 240 W, it can power numerous PoE devices simultaneously. Enhanced security is ensured through support for protocols like SSH and SSL, making the TL-SG3210XHP-M2 a reliable choice for modern network setups.

• Unlock the full potential of Wi-Fi 6 with Multi-Gigabit PoE+ ports
• Enterprise switch with 10G uplink
• Software-Defined Networking (SDN) with Cloud Access
• Advanced L3 features
• Secure networking
• Enterprise level features
• Advanced QoS
• ISP features
• IPv6 support

• Unlock the full potential of Wi-Fi 6 with Multi-Gigabit PoE+ ports
  Featuring 8x 2.5 Gbps PoE+ ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming Wi-Fi 6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 240 W total PoE power budget and flexible installation to fit in various application scenarios.
• Enterprise switch with 10G uplink
  2x 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.
• Software-Defined Networking (SDN) with Cloud Access
  Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network – all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
• Advanced L3 features
  An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPs.
• Secure networking
  Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common Dos attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
• Enterprise level features
  A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
• Advanced QoS
  Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
• ISP features
  sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
• IPv6 support
  IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

What’s in the Box

• TP-Link JetStream TL-SG3210XHP-M2 V1
• Rubber feet
• Rack mounting kit

Main Specifications

Extended Specifications

General

Expansion / Connectivity

Power

Miscellaneous

Dimensions & Weight

Environmental Parameters
