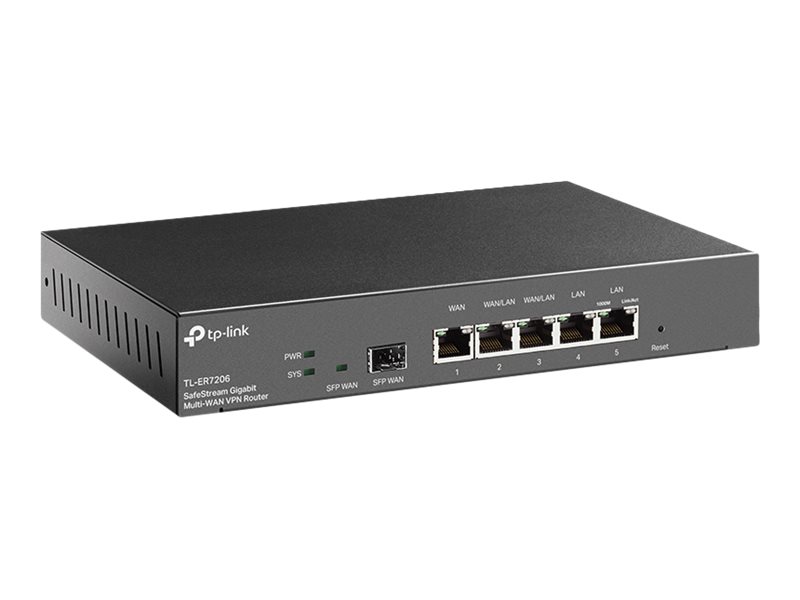

TP-Link SafeStream TL-ER7206, V1, router 1GbE

Description

The TP-Link SafeStream TL-ER7206 router accommodates high performance and reliability for networking needs. With a capacity of 150,000 concurrent connections and the ability to handle 5,500 new sessions per second, this router ensures scalable and efficient use in various environments. The installation of 128 MB flash memory and 512 MB DDR3 SDRAM offers ample resources for operations, while the integrated support for multiple VoIP protocols including H.323 and SIP enhances communication capabilities. Operating within a temperature range of 0°C to 40°C and a humidity level of 10 to 90%, the TL-ER7206 is robust and adaptable. The features ranging from NAT support to VPN capabilities, coupled with various networking protocols such as TCP/IP, IPSec, and L2TP, ensures versatility and performance for small to medium-sized enterprises. This device supports multiple encryption algorithms, contributing to a secure data environment while facilitating effective management through its remote management protocols.

• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), centralized cloud management, and intelligent monitoring
• Centralized management: ?loud access and Omada app for ultra-convenience and easy management
• Gigabit ports: one gigabit SFP and five gigabit RJ45 ports provide high-speed wired connectivity
• Up to four WAN ports: one gigabit SFP WAN port, one gigabit RJ45 WAN port, two gigabit WAN/LAN ports optimize bandwidth usage
• Highly secure VPN: supports up to 100x LAN-to-LAN IPsec, 50x OpenVPN, 50x L2TP, and 50x PPTP VPN connections
• Abundant security features: advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data

• High capacity simultaneous connections
  The router can handle up to 150,000 concurrent connections, making it suitable for businesses with high demands on network connectivity.
• Comprehensive routing capabilities
  This device features advanced routing protocols such as IGMPv2 and static IP routing to efficiently manage data traffic across the network.
• Multi-layered security protocols
  With multiple encryption algorithms including 128-bit AES and SHA-1, the router ensures your data remains secure against unauthorized access.
• Versatile connectivity options
  Equipped with Gigabit Ethernet and SFP connectors, this router provides flexibility in connecting to various devices and networks.
• Robust environmental resilience
  Operating effectively between 0°C and 40°C with humidity levels from 10 to 90%, the router is built to last in challenging environments.

Main Specifications

Documents

• User Manual
• Quick Start Guide
• Product Data Sheet / Brochure

Extended Specifications

General

IP Telephony

Expansion / Connectivity

Power

Software / System Requirements

Dimensions & Weight

Environmental Parameters
