Description

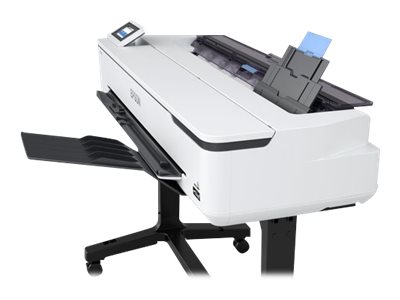

The SC-T5160 features Epson’s latest PrecisionCore print head and aqueous UltraChrome XD2 pigment ink. It will print an A1 image in as little as 31s with output that dries almost instantly to be water- and rub-resistant. Designed for small and medium sized businesses that want to produce wide format prints, the printer has a very small footprint and can be installed against a wall or in a corner. It also ships with software that enables easy printing from office and CAD/GIS applications.
- High productivity: prints an A1 image in as little as 31s and includes an integrated auto-cutter
- High precision: 2400 x 1200dpi resolution Epson PrecisionCore print head with Variable Sized Dot Technology (VSDT) for super fine lines, superior half tones, solid and consistent color
- High flexibility: supports roll paper up to 36″ (914mm) wide, sheet paper up to A0/B1 and has integrated scanner support for optional MFP functionality
- High convenience: large 4.3″ touchscreen panel with easy-to-use interface, top-loaded ink and media, spindle roll loading, integrated Auto Sheet Feeder, and auto sheet/roll switching
- Easy integration: compact design, high-speed Gigabit Ethernet, convenient Wi-Fi/Wi-Fi Direct and AirPrint support, HP-GL/2 and RTL emulation
What’s in the Box
- Epson SureColor SC-T5160
- Cartridge – cyan
- Cartridge – magenta
- Cartridge – yellow
- Cartridge – black
Main Specifications
Product Description | Epson SureColor SC-T5160 – multifunction printer – colour |
Device Type | 36″ multifunction printer |
Printing Technology | Ink-jet (colour) |
Inkjet Technology | Epson PrecisionCore TFP – 4-ink |
Max Printing Resolution | Up to 2400 x 1200 dpi (mono) / up to 2400 x 1200 dpi (colour) |
Max Printing Resolution Class | Up to 2400 x 1200 dpi (mono) / up to 2400 x 1200 dpi (colour) |
Display | 4.3″ |
Media Size | Roll (91.4 cm) (max) |
Media Type | Plain paper, photo paper |
Connection Availability | Yes |
Interface | Gigabit LAN, Wi-Fi(n), USB 3.0 |
AirPrint Enabled | Yes |
Power | AC 120/230 V (50/60Hz) |
Dimensions (WxDxH) | 131.8 cm x 91.5 cm x 38 cm |
Documents
Extended Specifications
General
Device Type | 36″ multifunction printer |
|---|
Printing Technology | Ink-jet – colour |
|---|
Display Diagonal Size | 4.3″ |
|---|
Display Colour Support | Colour |
|---|
Display Features | Touch screen, LCD display |
|---|
Connection Availability | Yes |
|---|
Interface | Gigabit LAN, Wi-Fi(n), USB 3.0 |
|---|
AirPrint Enabled | Yes |
|---|
Memory
Printing
Inkjet Technology | Epson PrecisionCore TFP |
|---|
Nozzle Configuration | 800 nozzles (black), 3 x 800 nozzles (cyan, magenta, yellow) |
|---|
Max Printing Resolution | Up to 2400 x 1200 dpi (mono) / up to 2400 x 1200 dpi (colour) |
|---|
Max Printing Resolution Class | Up to 2400 x 1200 dpi (mono) / up to 2400 x 1200 dpi (colour) |
|---|
Ink Cartridge Configuration | 4 cartridges (1 each: cyan, magenta, yellow, black) |
|---|
Ink Palette Supported (Colours) | Cyan, magenta, yellow, black |
|---|
Colour | 4-ink |
|---|
Minimum Ink Droplet Size | 4 pl |
|---|
Printer Drivers / Emulations | EPSON ESC/P Raster, HPGL/2, HP-RTL |
|---|
Ink Type | Epson UltraChrome XD2 Ink |
|---|
Document & Media Handling
Max Media Size | Other |
|---|
Media Thickness Range | 0.05 mm – 0.21 mm |
|---|
Supported Media Type | Plain paper, photo paper |
|---|
Supported Media Sizes | ANSI A (Letter) (216 x 279 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), B5 (176 x 250 mm), A3 (297 x 420 mm), A2 (420 x 594 mm), A1 (594 x 841 mm), B4 (250 x 353 mm), B2 (500 x 707 mm), B1 (707 x 1000 mm), 431.8 x 558.8 mm, Roll (91.4 cm), 558.8 x 863.6 mm |
|---|
Document & Media Handling Details | Input tray – 1 roll – Roll (91.4 cm) |
|---|
Connections
Interfaces | USB 3.0
Gigabit LAN – RJ-45 |
|---|
Security Protocols & Features | Wi-Fi Direct |
|---|
Operating System Support | MS Windows XP, MS Windows 7, MS Windows Vista, Apple Mac OS X 10.6.8 or later, Windows 8, Windows 8.1, Windows 10 |
|---|
Software Included | Drivers & Utilities |
|---|
Power
Voltage Required | AC 120/230 V (50/60Hz) |
|---|
Power Consumption Operational | 28 watt |
|---|
Power Consumption Standby | 8 watt |
|---|
Power Consumption Sleep | 1.6 watt |
|---|
Miscellaneous
Consumables Included | 1 x ink cartridge (cyan)
1 x ink cartridge (magenta)
1 x ink cartridge (yellow)
1 x ink cartridge (black) |
|---|
Dimensions & Weight
Width | 131.8 cm |
|---|
Depth | 91.5 cm |
|---|
Height | 38 cm |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 150.6 cm |
|---|
Shipping Depth | 72.4 cm |
|---|
Shipping Height | 52.2 cm |
|---|
Shipping Weight | 45 kg |
|---|
Environmental Parameters
Sound Emission | 49 dB (operating) |
|---|
