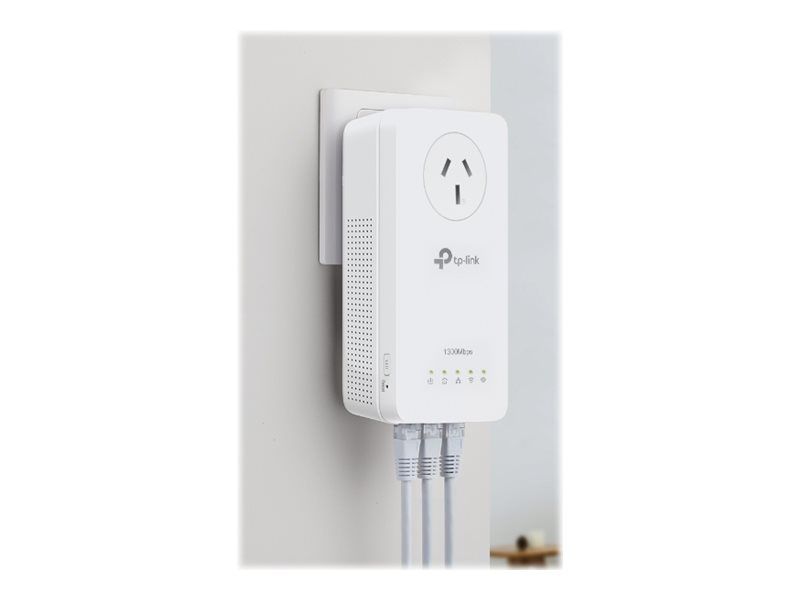

TP-Link TL-WPA8631P KIT V3 Wi-Fi Kit, Powerline adapter kit 1GbE, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901, Wi-Fi 5, Dual Band, wall-pluggable
$221.17 inc GST
✓ In Stock - 1 available
✓ Free NZ Delivery
1 in stock (can be backordered)
Ships from: Auckland or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
- Three Gigabit Ethernet ports
- AV1300 Powerline with 2×2 MIMO
- Plug and Play
- One-Touch Wi-Fi configuration
- Three Gigabit Ethernet ports
Provide warp speed wired connections for 4K video and IPTV streaming, lag-free gaming, and more. - AV1300 Powerline with 2×2 MIMO
Establish multiple simultaneous connections to improve data transfer rates, stability, and coverage. - Plug and Play
Powerline adapters and extenders must be deployed in a set of two or more and be connected to the same electrical circuit. - One-Touch Wi-Fi configuration
Copy wireless settings from a router to the extender using the same SSID and password with just a tap.
What’s in the Box
- TP-Link Powerline TL-WPA8631P v3 Wi-Fi Kit
- 2 x network cable
- TP-Link TL-PA8010P
Main Specifications
Product Description | TP-Link TL-WPA8631P KIT V3 Wi-Fi Kit – powerline adapter kit – Wi-Fi 5 – wall-pluggable |
Device Type | Powerline adapter kit |
Enclosure Type | Wall-pluggable |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901, IEEE 802.11ac |
Frequency Band | 2.4 GHz / 5 GHz |
Data Transfer Rate | 1.3 Gbps |
Routing Protocol | IGMPv2, IGMP, IGMPv3 |
Features | Integrated power socket, 2T2R MIMO technology, integrated power plug, OneMesh support |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, HomePlug AV, HomePlug AV 2.0, IEEE 802.11ac |
Power | AC 100/230 V (50/60 Hz) |
Dimensions (WxDxH) | 15.2 cm x 7.5 cm x 4.2 cm |
System Requirements | Apple MacOS, Linux, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 |
Documents
Extended Specifications
General
Device Type | Powerline adapter kit |
|---|---|
Enclosure Type | Wall-pluggable |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901, IEEE 802.11ac |
Frequency Band | 2.4 GHz / 5 GHz |
Data Transfer Rate | 1.3 Gbps |
Max Range Indoors | 300 m |
Routing Protocol | IGMPv2, IGMP, IGMPv3 |
Encryption Algorithm | WPA-PSK, 128-bit AES, WPA2-PSK, WEP |
Wi-Fi Rating | AC1200 |
Features | Integrated power socket, 2T2R MIMO technology, integrated power plug, OneMesh support |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, HomePlug AV, HomePlug AV 2.0, IEEE 802.11ac, Plug and Play, RoHS |
Status Indicators | Power, LAN, link/activity, Wi-Fi |
Line Properties
Line Coding Format | OFDM |
|---|
Expansion / Connectivity
Interfaces | LAN: 3 x 10Base-T/100Base-TX/1000Base-T – RJ-45 |
|---|
Power
Voltage Required | AC 100/230 V (50/60 Hz) |
|---|---|
Power Consumption Operational | 13.7 Watt |
Miscellaneous
Included Accessories | TP-Link TL-PA8010P |
|---|---|
Cables Included | 2 x network cable |
Software / System Requirements
OS Required | Apple MacOS, Linux, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 |
|---|
Dimensions & Weight
Width | 15.2 cm |
|---|---|
Depth | 7.5 cm |
Height | 4.2 cm |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
