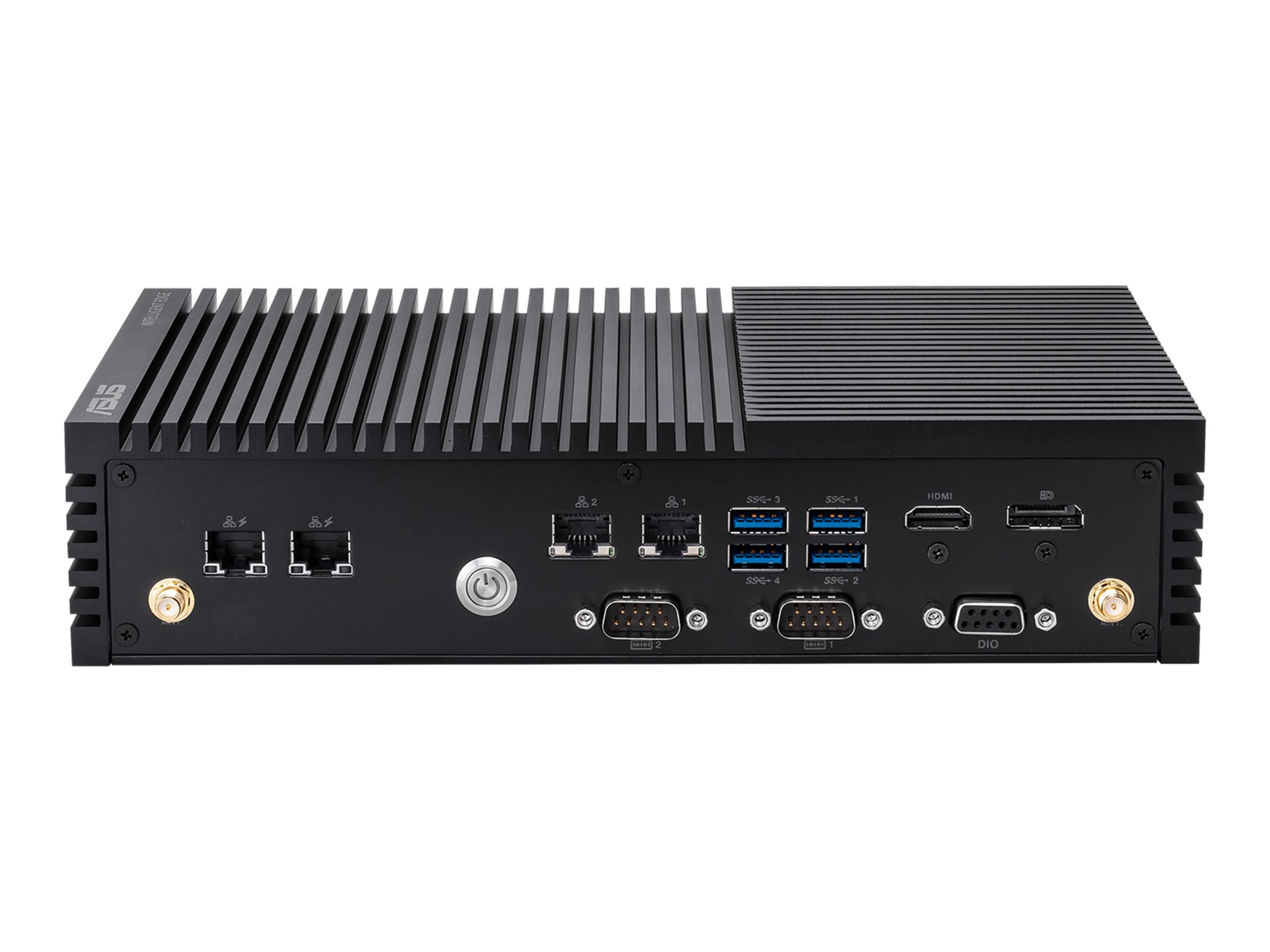

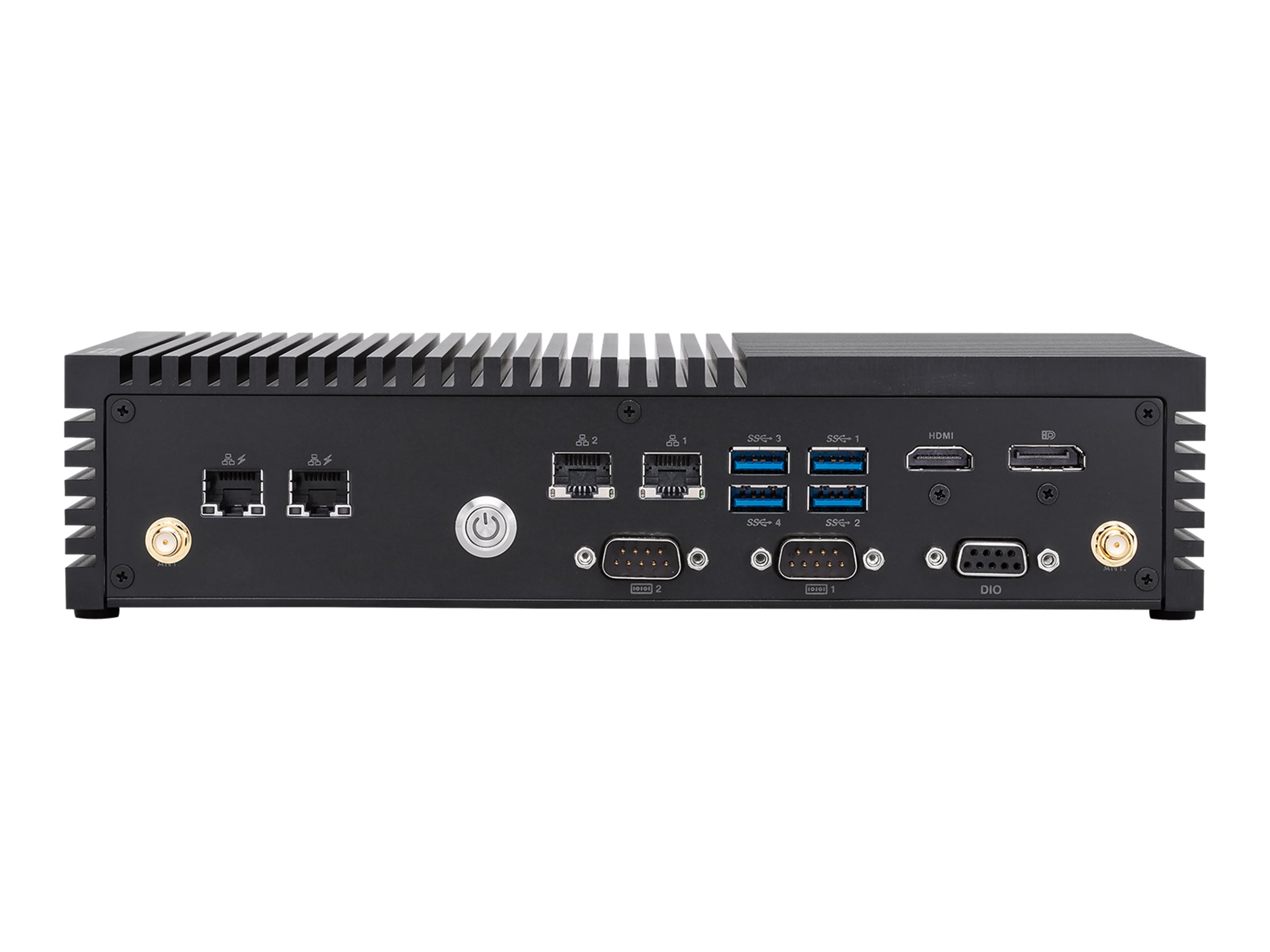

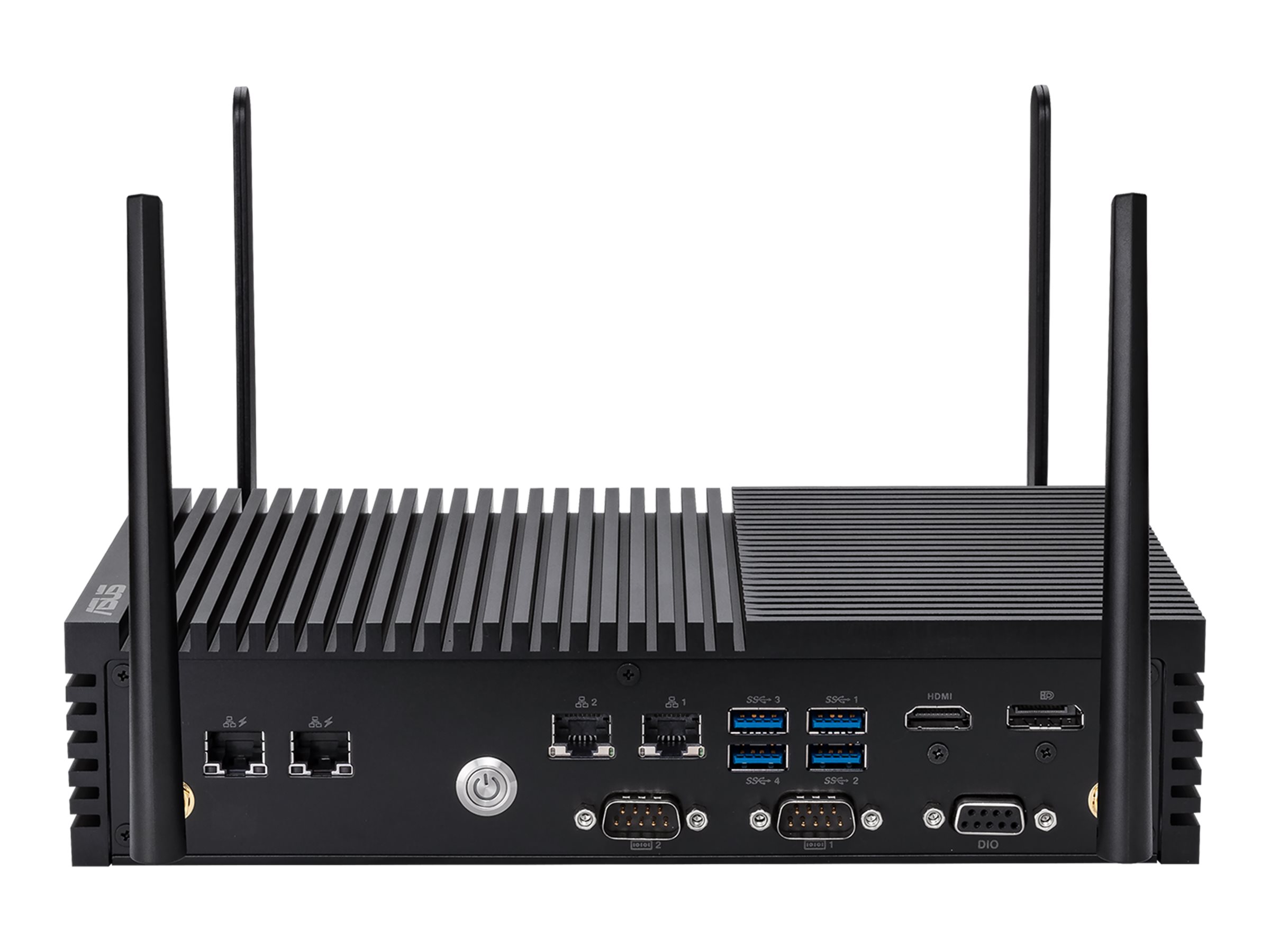

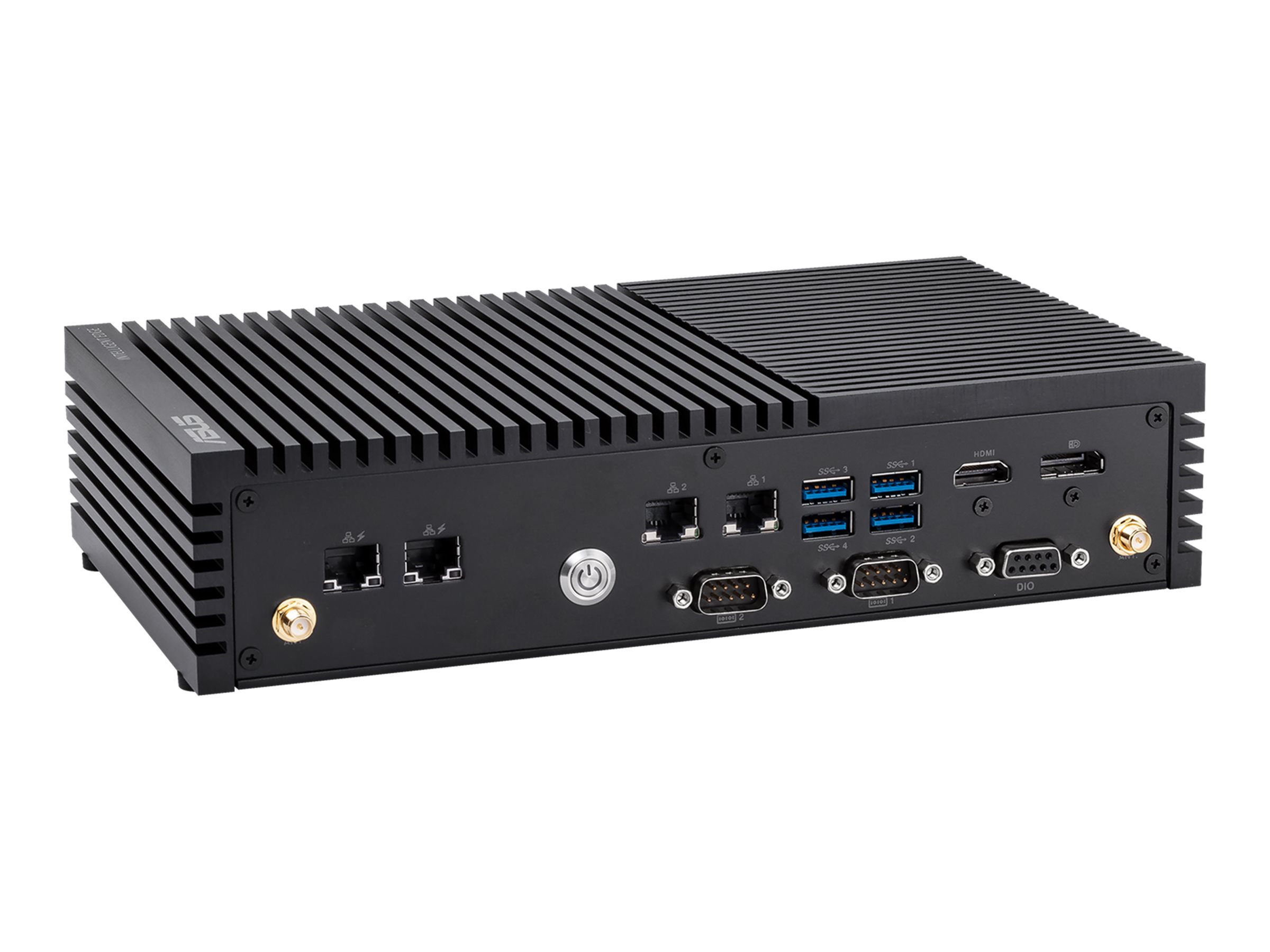

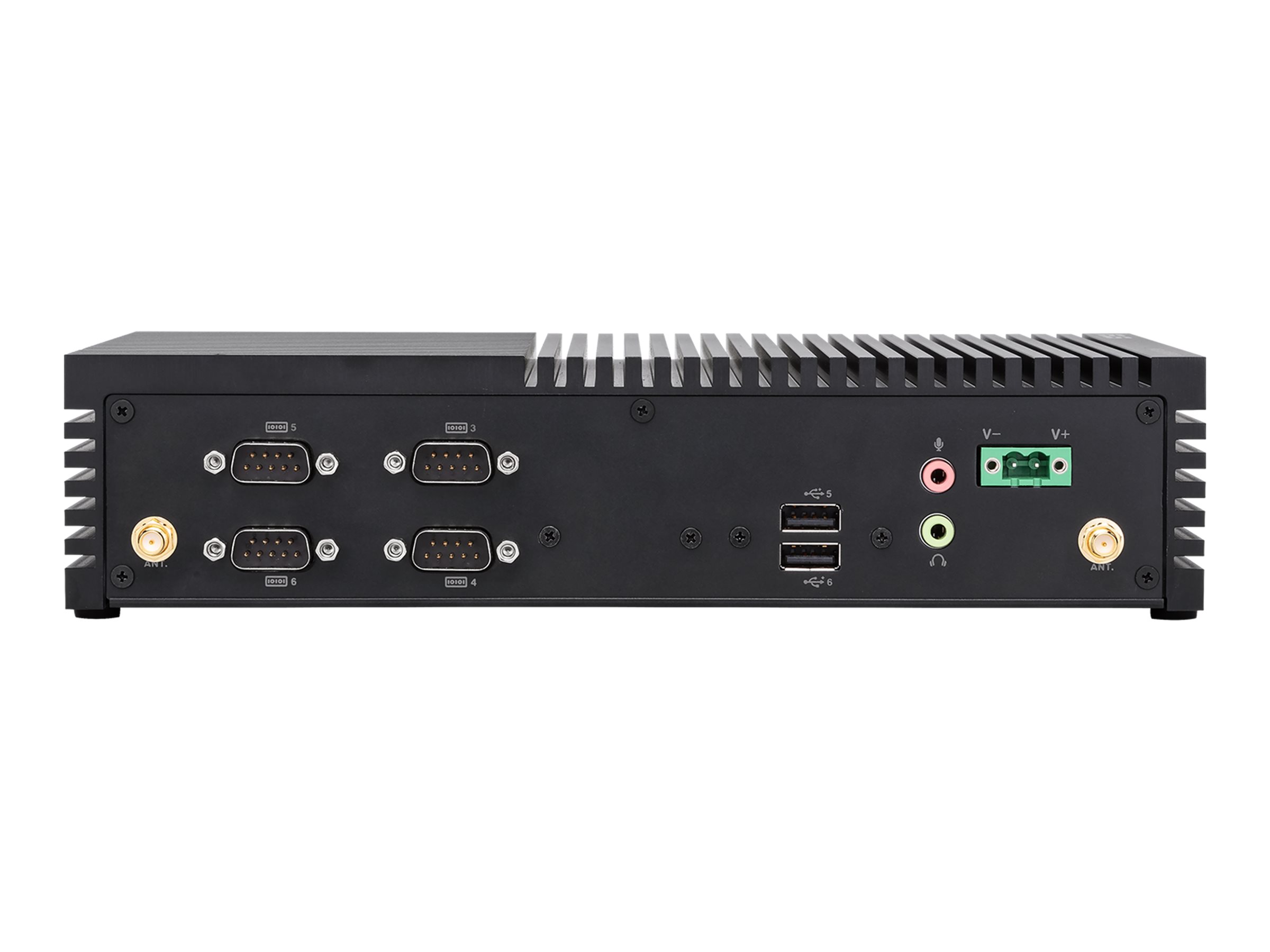

ASUS PE200U 8565U, Barebone, USFF 1 x Core i7 8565U / up to 4.6 GHz, RAM 4 GB, UHD Graphics, Gigabit Ethernet
$2,686.15 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
ASUS PE200U is an Intelligent Edge Computer with a high-quality, TCO-optimized solution for AIoT computing. PE200U includes up to 6 COM ports (2 x RS-232/422/485) and supports dual display configuration by multiple interface: HDMI/DP and integrated CPU. PE200U is designed for high performance and silent operation in harsh environment. It’s capable of achieving full CPU utilization while being cooled by a fanless thermal solution.
ASUS Edge Computer offers enhanced features to ensure optimal performance and the flexibility to adapt to the surrounding environment, configure easily with a wide range of power inputs (12~24V), operating temperatures (-20°~60°), diversified I/O interface and expansion for multiple vertical markets. ASUS Edge computer is built for 24/7 stability and reliability, combined with world-class after-sales service and guaranteed long-term availability – your investment for the duration of the product lifecycle is maximized.
- Achieve high performance with full CPU utilization and fan-less thermal
- Wide range of power inputs (12~24V) and operating temperatures (-20°~60°)
- Diverse I/O interface and expansion options for multiple markets
- World-class after-sales service and long-term availability guarantee
- A high-quality, TCO-optimized solution for AIoT computing
- Supports I2C, SMBus and GPIO
- Compact design
The ultra small form factor allows for easy placement in limited spaces, making it ideal for various applications from home to business settings. - High performance
Equipped with an Intel Core i7-8565U processor, this system delivers powerful computing capabilities suitable for multitasking and demanding applications. - Versatile connectivity
Includes multiple ports such as HDMI, DisplayPort, and USB 3.1 Gen 2, enabling users to connect a variety of devices and peripherals seamlessly. - Broad operating temperature range
The system can function effectively within a temperature range of -20°C to 60°C, ensuring reliability in diverse environmental conditions. - Dependable networking options
Features two Gigabit Ethernet ports, providing robust networking capabilities to support various connectivity needs.
Main Specifications
Product Description | ASUS PE200U 8565U – USFF Core i7 8565U 1.8 GHz – 4 GB – no HDD |
Type | PC barebone – USFF |
Processor | 1 x Intel Core i7 (8th Gen) 8565U / 1.8 GHz (up to 4.6 GHz, (Quad-Core) |
RAM | 4 GB (installed) / 32 GB (max) – DDR4 SDRAM – non-ECC |
Storage Controller | SATA (SATA 6Gb/s) |
Hard Drive | No HDD |
Optical Storage | No optical drive |
Graphics Controller | Intel UHD Graphics |
Networking | 1GbE |
OS Provided | No operating system |
Dimensions (WxDxH) | 25.4 cm x 14.7 cm x 5.7 cm |
Documents
Extended Specifications
General
Type | PC barebone |
|---|---|
Product Form Factor | USFF |
Processor / Chipset
CPU | Intel Core i7 (8th Gen) 8565U |
|---|---|
Clock Speed | 1.8 GHz |
Max Turbo Speed | 4.6 GHz |
Number of Cores | Quad-Core |
CPU Qty | 1 |
Max CPU Qty | 1 |
RAM
Installed Size | 4 GB (installed) / 32 GB (max) |
|---|---|
Technology | DDR4 SDRAM – non-ECC |
Effective Memory Speed | 2400 MHz |
Rated Memory Speed | 2400 MHz |
Form Factor | SO-DIMM 260-pin |
Slots | 1 (Total) / 0 (empty) |
Features | Unbuffered |
Hard Drive
Type | No HDD |
|---|
Storage Controller
Type | 1 x SATA |
|---|---|
Controller Interface Type | SATA 6Gb/s |
Optical Storage
Type | No optical drive |
|---|
Monitor
Monitor Type | None. |
|---|
Graphics Controller
Graphics Processor | Intel UHD Graphics |
|---|---|
Video Interfaces | HDMI, DisplayPort |
Audio Output
Compliant Standards | High Definition Audio |
|---|
Networking
Ethernet Ports | 2 x Gigabit Ethernet |
|---|---|
Ethernet Controller | Intel I219-V / I211-AT |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Expansion / Connectivity
Bays | 1 (total) / 1 (free) x internal 2.5″ |
|---|---|
Slots | 1 (total) / 1 (free) x M.2 Card – 2230 (Key E) 1 (total) / 1 (free) x M.2 Card – 2242 (Key M) 1 (total) / 1 (free) x Mini PCIe/mSATA – full-length 1 (total) / 1 (free) x Nano-SIM card 1 (total) / 1 (free) x microSD Card (internal) |
Interfaces | 1 x microphone 2 x LAN (Gigabit Ethernet) 1 x DisplayPort 1 x headphones 1 x HDMI 4 x USB 3.1 Gen 2 2 x serial 1 x GPIO |
Power
Device Type | Power adapter |
|---|
Operating System / Software
OS Provided | No operating system |
|---|
Dimensions & Weight
Width | 25.4 cm |
|---|---|
Depth | 14.7 cm |
Height | 5.7 cm |
Environmental Parameters
Min Operating Temperature | -20 °C |
|---|---|
Max Operating Temperature | 60 °C |
Humidity Range Operating | 0 – 85% |
Additional information
| Manufacturer | |
|---|---|
| CPU | |
| Installed Memory | |
| Graphics Processor |
