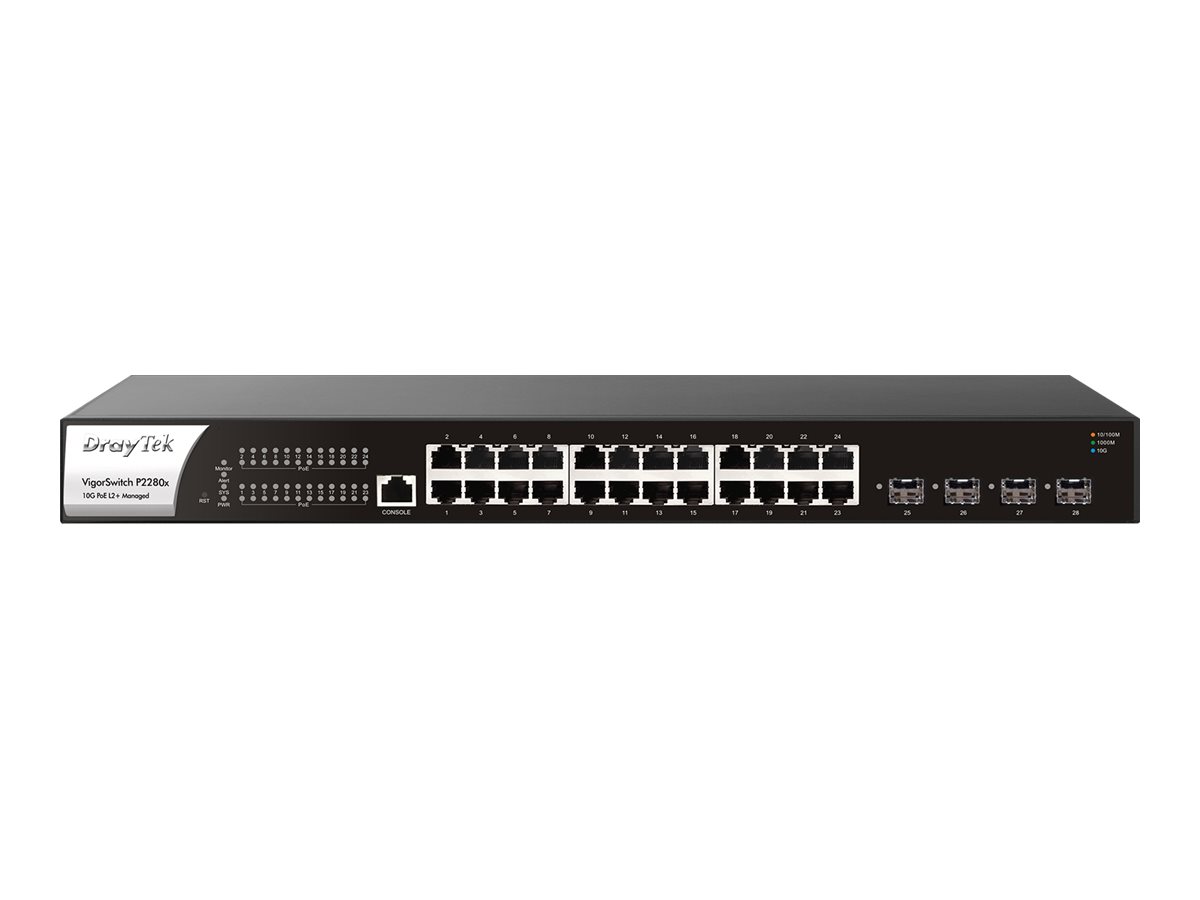

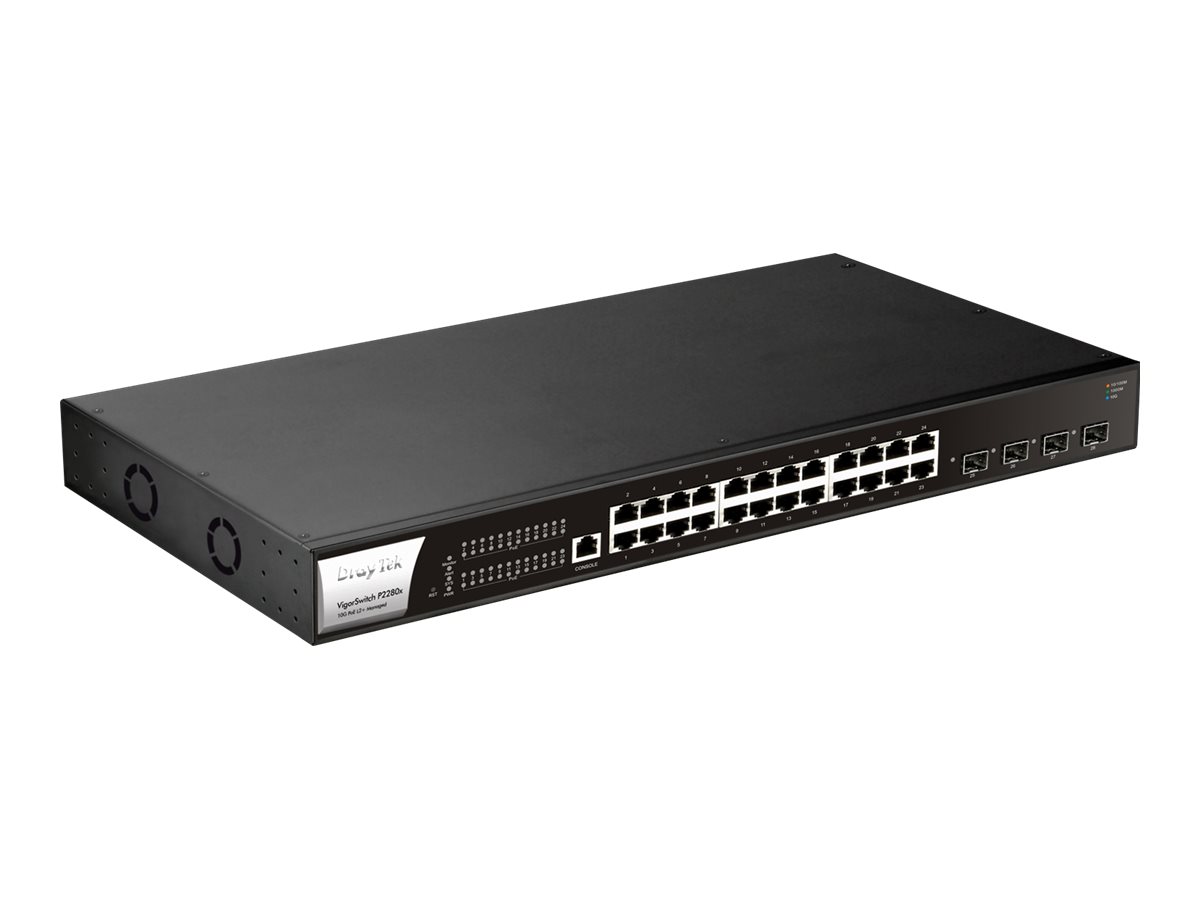

Draytek VigorSwitch P2280X, Switch, Managed, 24 x 10/100/1000 (PoE+) + 4 x 10Gb Ethernet SFP+, desktop, rack-mountable, PoE+ (400 W)
$1,494.06 inc GST
✓ In Stock - 1 available
✓ Free NZ Delivery
1 in stock (can be backordered)
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
DrayTek VigorSwitch P2280x is a Layer 2+ managed Gigabit PoE switch ideal for a network with growing network traffic. The switch has 24 Gigabit Ethernet PoE/PoE+ ports. Business can get enhanced network performance through the integrated L2 and L2+ features, it provides various types of VLAN for you to segment the local network and keep the traffic only at where it needs to go. Moreover, it supports VLAN routing to route the inter-VLAN traffic directly, shares loads of the router, and improve overall network performance.
- Auto surveillance & voice VLAN
- Web-based GUI
- IP conflict prevention
- Central switch management
- Auto surveillance & voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization. - Web-based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. - IP conflict prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. - Central switch management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches.
Main Specifications
Product Description | Draytek VigorSwitch P2280X – switch – 28 ports – Managed – rack-mountable |
Device Type | Switch – 28 ports – Managed |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x 10Gb Ethernet SFP+ |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 400 W |
Performance | Switching capacity: 128 Gbps Forwarding rate: 95.24 Mpps Packet buffer size: 12 Mbit |
Capacity | Link aggregation groups: 8 ACL entries: 512 VLANs supported: 255 VLAN IDs: 4096 |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 12KB |
Routing Protocol | VRRP, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI, ICMP |
Features | Load balancing, VLAN support, DoS attack prevention, IPv6 support, SNTP support, sFlow, VRRP support, event log, DHCP snooping, QoS, DAI, IPv4 support, LACP support, DHCP relay, DHCP client, GVRP, dual firmware images, SPQ, NDP, loop prevention, port isolation, static routing, VSM, CoS, ONVIF support, Duplicated Address Detection, ToS, DSCP support, PoE circuit sorting protection, Storm Control, system log, IP source guard, rate limit, MAC address authentication, AAA, DNS client, Voice VLAN, VLAN management, Guest VLAN, ingress rate limiting, WRR, MAC based VLAN, egress rate limiting, OpenVPN client |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
Power | AC 120/230 V |
Dimensions (WxDxH) | 44.1 cm x 27 cm x 4.5 cm |
Weight | 4.32 kg |
Extended Specifications
General
Device Type | Switch – 28 ports – Managed |
|---|---|
Enclosure Type | Desktop, rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x 10Gb Ethernet SFP+ |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 400 W |
Performance | Switching capacity: 128 Gbps Forwarding rate: 95.24 Mpps Packet buffer size: 12 Mbit |
Capacity | Link aggregation groups: 8 ACL entries: 512 VLANs supported: 255 VLAN IDs: 4096 |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 12KB |
Routing Protocol | VRRP, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI, ICMP |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Features | Load balancing, VLAN support, DoS attack prevention, IPv6 support, SNTP support, sFlow, VRRP support, event log, DHCP snooping, QoS, DAI, IPv4 support, LACP support, DHCP relay, DHCP client, GVRP, dual firmware images, SPQ, NDP, loop prevention, port isolation, static routing, VSM, CoS, ONVIF support, Duplicated Address Detection, ToS, DSCP support, PoE circuit sorting protection, Storm Control, system log, IP source guard, rate limit, MAC address authentication, AAA, DNS client, Voice VLAN, VLAN management, Guest VLAN, ingress rate limiting, WRR, MAC based VLAN, egress rate limiting, OpenVPN client |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
Status Indicators | Port transmission speed, power, alert, system, PoE, link/activity |
Expansion / Connectivity
Interfaces | 24 x 1000Base-T RJ-45 PoE+ – 30 W 4 x Gigabit / 10Gbit LAN SFP 1 x console RJ-45 |
|---|
Power
Power Device | Internal power supply |
|---|---|
Voltage Required | AC 120/230 V |
Power Consumption Operational | 480 Watt |
Miscellaneous
Rack Mounting Kit | Included |
|---|---|
Compliant Standards | RoHS |
Dimensions & Weight
Width | 44.1 cm |
|---|---|
Depth | 27 cm |
Height | 4.5 cm |
Weight | 4.32 kg |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 45 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
Min Storage Temperature | -20 °C |
Max Storage Temperature | 70 °C |
