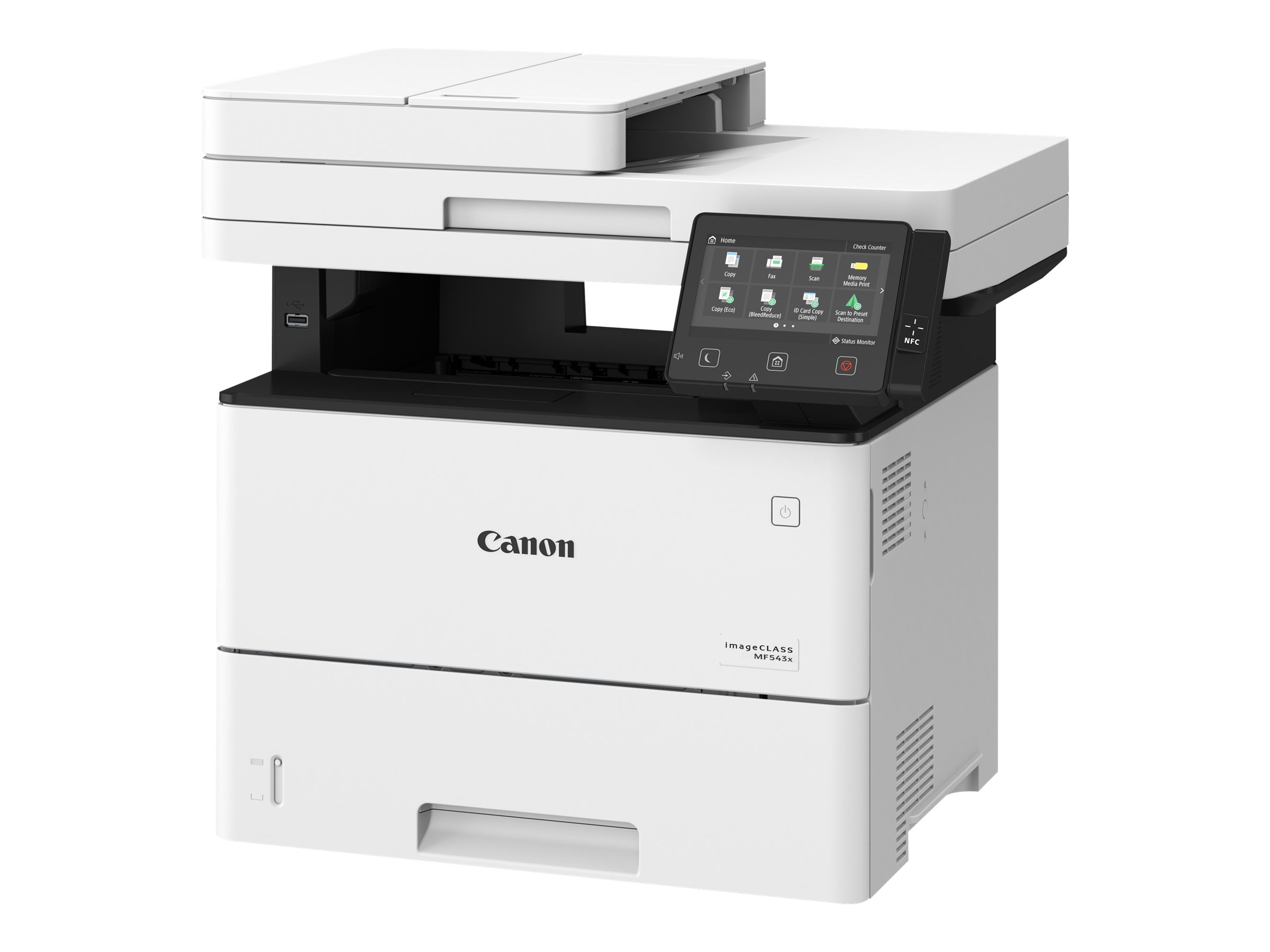

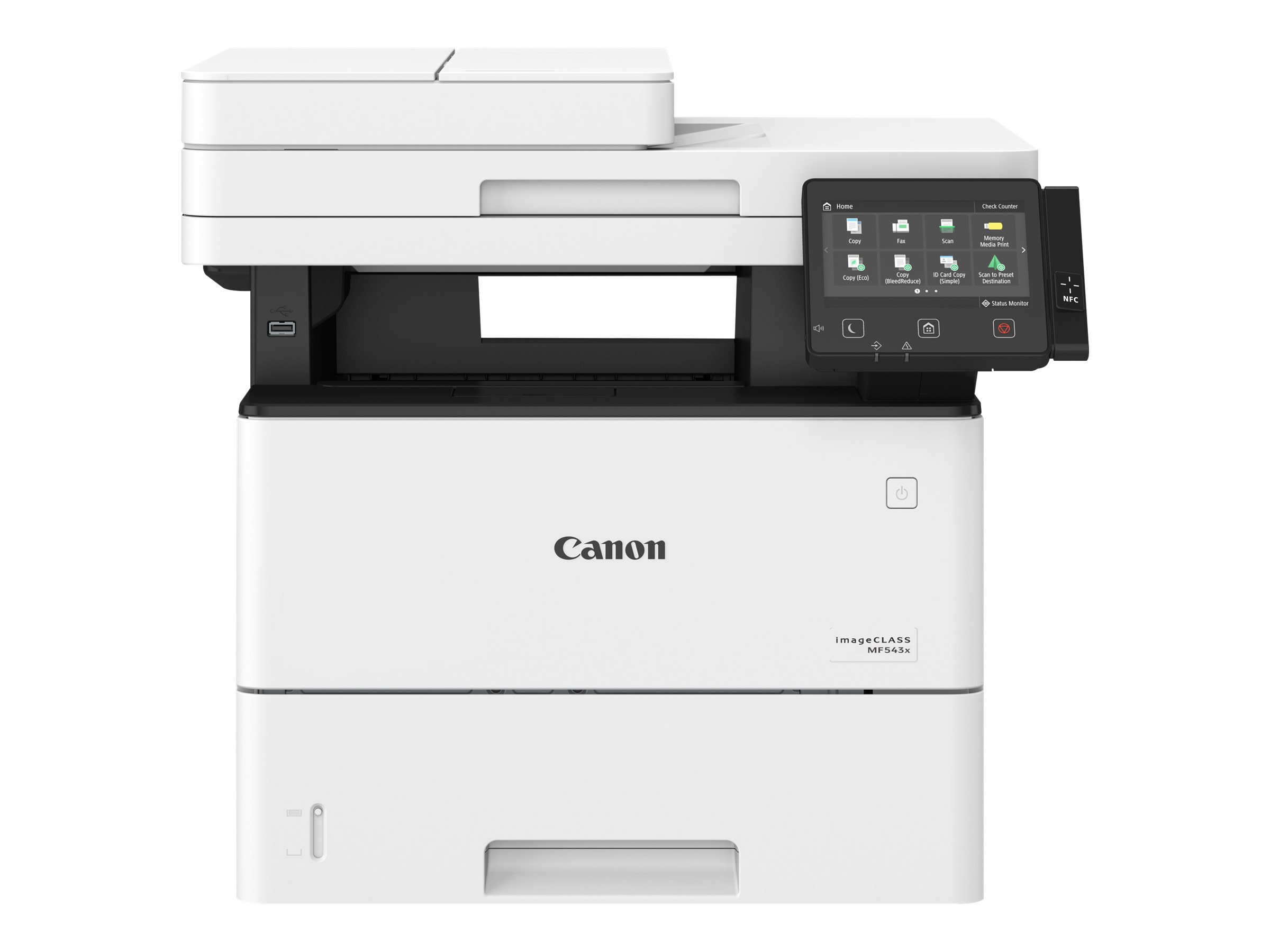

Canon ImageCLASS MF543x, Multifunction printer, B/W, laser, A4 (210 x 297 mm), Legal (216 x 356 mm) (original), A4/Legal (media), up to 43 ppm (copying), up to 43 ppm (printing), 650 sheets, 33.6 Kbps, USB 2.0, Gigabit LAN, Wi-Fi(n), NFC, USB 2.0 host
$1,439.89 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
Looking to get the most from your small office environment? Your Canon imageCLASS MF543x is a compact yet multi-talented wireless device that prints, scans, copies and faxes.
- Professional power in a compact unit
- Secure printing
- A powerful boost for business
- Perfect for sharing
- Minimal effort, maximum results
- Professional power in a compact unit
Tight on space? Your Canon MF543x gives you the advantages of a multifunction printer yet it’s built to slip into the tightest space. - Secure printing
Don’t risk a data breach. Canon’s Secure Print function minimizes the risk of a security breach with PIN codes required to release jobs. - A powerful boost for business
Give your small business a powerful boost with fast, high-quality printing and copying at impressive speeds of up to 43 ppm. - Perfect for sharing
Sharing and collaboration is easy with the ability to capture, digitize and share documents on cloud storage services like Google Drive and DropBox. - Minimal effort, maximum results
Enjoy easy cost-effective maintenance with an all-in-one Intermediate Transfer Unit, Photosensitive Drum and Waste Toner Container consumables.
Main Specifications
Product Description | Canon ImageCLASS MF543x – multifunction printer – B/W |
Device Type | Multifunction printer |
Fax Type | Super G3 – plain paper |
Printing Technology | Laser (monochrome) |
Recommended Monthly Volume | 500 – 2500 pages |
Max Copying Speed | Up to 43 ppm |
Max Copying Resolution | Up to 600 x 600 dpi |
Max Printing Speed | Up to 43 ppm |
Max Printing Resolution | Up to 1200 x 1200 dpi |
Max Fax Transmission Speed | 33.6 Kbps |
Data Compression System | MH, MR, MMR, JBIG |
Fax Resolutions | 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi, 400 x 400 dpi |
Scanning | 600 x 600 dpi |
Display | 5″ |
Original Size | 105 x 128 mm (min) – A4 (210 x 297 mm), Legal (216 x 356 mm) (max) |
Original Type | Sheets |
Document Feeder Capacity | 50 sheets |
Media Size | 76.2 x 127 mm (min) – Legal (216 x 356 mm), A4 (210 x 297 mm) (max) |
Media Type | Envelopes, plain paper, labels, recycled paper, heavy-weight paper, thin paper, postcards |
Standard Media Capacity | 650 sheets |
Max Media Capacity | 2300 sheets |
Bypass Feeder Capacity | 100 sheets |
Output Trays Capacity | 250 sheets |
Automatic Duplexing | Yes (copying) Yes (printing) Yes (scanning) |
Connection Availability | Yes |
Interface | USB 2.0, Gigabit LAN, Wi-Fi(n), NFC, USB 2.0 host |
AirPrint Enabled | Yes |
Office Machine Features | Print from USB flash drive, scan to e-mail, scan to Cloud, Push Scan, Pull Scan, scan to USB host, iFAX |
Power | AC 230 V (50/60Hz) |
Dimensions (WxDxH) | 49.4 cm x 46.4 cm x 45.2 cm |
Weight | 19.8 kg |
Documents
Extended Specifications
General
Device Type | Multifunction printer |
|---|---|
Fax Type | Plain paper |
Printing Technology | Laser – monochrome |
Recommended Monthly Volume | 500 – 2500 pages |
Display Diagonal Size | 5″ |
Display Colour Support | Colour |
Display Features | Touch screen |
Connection Availability | Yes |
Interface | USB 2.0, Gigabit LAN, Wi-Fi(n), NFC, USB 2.0 host |
AirPrint Enabled | Yes |
Office Machine Features | Print from USB flash drive, scan to e-mail, scan to Cloud, Push Scan, Pull Scan, scan to USB host, iFAX |
Memory
Standard Memory | 1 GB |
|---|---|
Supported Flash Memory | USB flash drive |
Copying
Max Copying Speed | Up to 43 ppm |
|---|---|
Max Copying Resolution | Up to 600 x 600 dpi |
Max Document Enlargement | 400% |
Max Document Reduction | 25% |
Maximum Copies | 999 |
Automatic Duplexing | Yes |
Copying Features | 2 on 1, 4 on 1, ID Card Copy, Frame Erase Copy, collation copy |
Printing
Max Printing Resolution | Up to 1200 x 1200 dpi |
|---|
Document & Media Handling
Output Trays Capacity | 250 sheets |
|---|---|
Document & Media Handling Details | ADF – 50 sheets size: 105 x 128 mm – Legal (216 x 356 mm)/A4 (210 x 297 mm) weight: 50 g/m² – 105 g/m² Paper cassette – 550 sheets size: A6 (105 x 148 mm) – Legal (216 x 356 mm)/A4 (210 x 297 mm) weight: 60 g/m² – 120 g/m² Multi-purpose tray – 100 sheets size: 76.2 x 127 mm – Legal (216 x 356 mm)/A4 (210 x 297 mm) weight: 60 g/m² – 199 g/m² Output tray – 250 sheets |
Speed Details | Printing: up to 43 ppm (A4) – B/W Printing: up to 34.4 ipm (A4) – B/W duplex Copying: up to 43 ppm (A4) – B/W Copying: up to 34.4 ipm – B/W duplex Scanning: up to 38 ipm – B/W Scanning: up to 13 ipm – colour Scanning: up to 70 ipm – B/W duplex Scanning: up to 26 ppm – colour duplex |
Connections
Interfaces | 1 x USB 2.0 – 4 pin USB Type B 1 x Gigabit LAN – RJ-45 1 x USB 2.0 host – 4 pin USB Type A |
|---|---|
Security Protocols & Features | LDAP, Secure Print, SSL, Apple Bonjour, WEP, WPA-PSK, 802.1x, WPA2-PSK, TKIP, AES, WPS, IP filtering, PING, ARP, MAC address filtering, IPv6 support, SNMP 3 |
Operating System Support | Linux, MS Windows 7, MS Windows Server 2008, MS Windows Server 2008 R2, MS Windows Server 2012, Android, iOS, Windows 8.1, MS Windows Server 2012 R2, Windows 10, Apple Mac OS X 10.9.5 or later, MS Windows Server 2016, macOS 10.14, MS Windows Server 2019 |
Software Included | Drivers & Utilities, uniFLOW online, uniFLOW online Express, Universal Login Manager |
Power
Voltage Required | AC 230 V (50/60Hz) |
|---|---|
Power Consumption Operational | 1430 Watt |
Power Consumption Standby | 13.6 Watt |
Power Consumption Sleep | 0.9 Watt |
Miscellaneous
Warm-Up Time | 14 sec |
|---|---|
Consumables Included | 1 x toner cartridge (black) – up to 5100 pages – Canon 056L |
Dimensions & Weight
Width | 49.4 cm |
|---|---|
Depth | 46.4 cm |
Height | 45.2 cm |
Weight | 19.8 kg |
Environmental Parameters
Sound Emission | 24 dB (idle) / 54 dB (operating) |
|---|---|
Min Operating Temperature | 10 °C |
Max Operating Temperature | 30 °C |
Humidity Range Operating | 20 – 80% (non-condensing) |
Printing
Max Printing Speed | Up to 43 ppm |
|---|---|
Printer Drivers / Emulations | PCL 5e, PCL 6, PostScript 3, PDF, TIFF, UFRII, JPEG |
Automatic Duplexing | Yes |
First Print Out Time B/W | 5.7 sec |
Scanning
Scan Element | CIS |
|---|---|
Automatic Duplexing | Yes |
Optical Resolution | 600 x 600 dpi |
Interpolated Resolution | 1200 x 1200 dpi |
Colour Depth | 24-bit |
Fax Machine
Compatibility | Super G3 |
|---|---|
Max Transmission Speed | 33.6 Kbps |
Data Compression System | MH, MR, MMR, JBIG |
Fax Resolutions | 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi, 400 x 400 dpi |
Total Memory Capacity | Up to 512 pages |
PC Faxing | Yes (send only) |
Fax Machine Features
Error Correction Mode (ECM) | Yes |
|---|---|
Speed Dialing | 281 station(s) |
Telephone / Fax Switch | Yes |
Broadcast Transmission | 310 stations |
Features | Fax forwarding, Distinctive Ring Pattern Detection (DRPD), automatic redialing, remote reception, Dual Access, fax activity reports |
Document & Media Handling
Min Original Size | 105 x 128 mm |
|---|---|
Max Original Size | A4 (210 x 297 mm), Legal (216 x 356 mm) |
Supported Original Sizes | ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), B5 (176 x 250 mm), A6 (105 x 148 mm), Statement (139.7 x 215.9 mm), 105 x 128 mm |
Original Type | Sheets |
Document Feeder Capacity | 50 sheets |
Min Media Size | 76.2 x 127 mm |
Max Media Size | A4/Legal |
Min Media Weight | 60 g/m² |
Max Media Weight | 199 g/m² |
Supported Media Type | Envelopes, plain paper, labels, recycled paper, heavy-weight paper, thin paper, postcards |
Supported Media Sizes | ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), Executive (184 x 267 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), B5 (176 x 250 mm), A6 (105 x 148 mm), Statement (139.7 x 215.9 mm), 76.2 x 127 mm, Oficio (216 x 343 mm), Foolscap (216 x 343 mm) |
Supported Envelope Sizes | International DL (110 x 220 mm), Com-10 (105 x 241 mm), International C5 (162 x 229 mm), Monarch (98.4 x 190.5 mm) |
Standard Media Capacity | 650 sheets |
Max Media Capacity | 2300 sheets |
Bypass Feeder Capacity | 100 sheets |
