Draytek Vigor 3910, Router 10GbE, 2.5GbE, WAN ports: 8, rack-mountable
$2,314.50 inc GST
✓ In Stock - 2 available
✓ Free NZ Delivery
2 in stock
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description

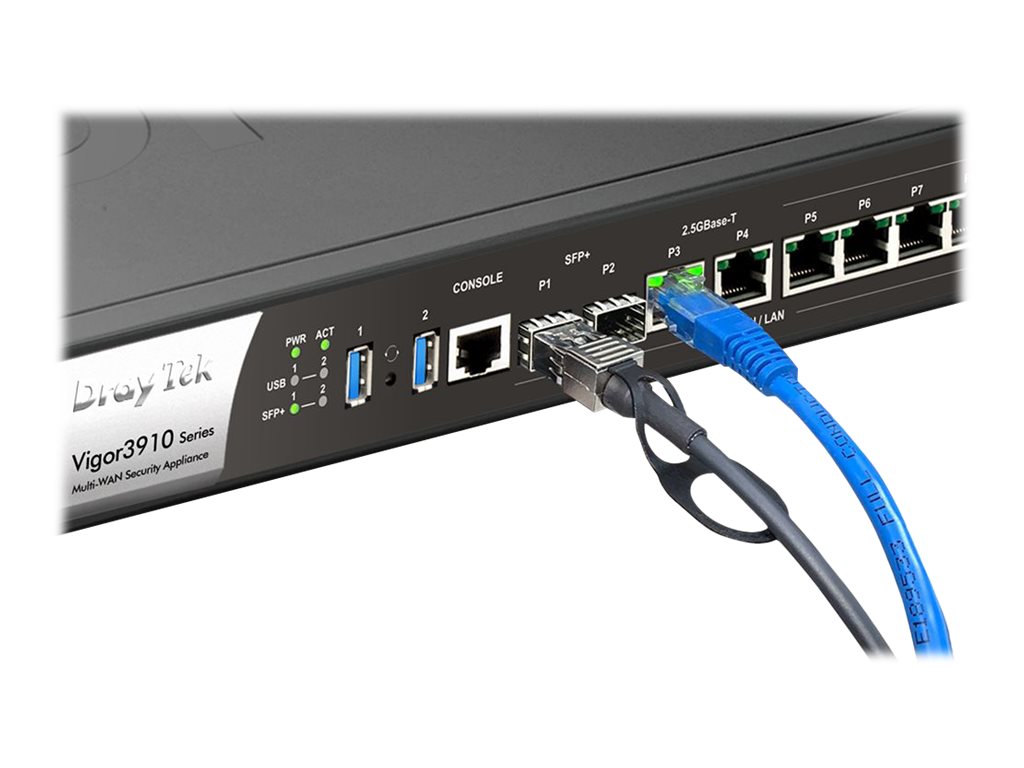

The DrayTek Vigor 3910 is a multi-WAN router and an ideal VPN concentrator, delivering high performance to meet the current and future bandwidth demands of complex networks. The Vigor 3910 combines performance, capacity and flexibility, with ease of use and a comprehensive feature set.
- Powerful enterprise Internet gateway
- High-performance VPN concentrator
- Flexible WAN architecture
- High availability
- Manage multiple networks
- Powerful enterprise Internet gateway
Featuring a quad-core processor, the Vigor 3910 readily meets the needs of demanding networks, with over 9Gb/s NAT throughput delivered through its 10GbE and 2.5GbE ports. - High-performance VPN concentrator
Protect inter-office communication with securely encrypted Virtual Private Network tunnels, maintaining 3 Gb/s IPsec throughput and supporting 500 simultaneous VPN links. - Flexible WAN architecture
Spread the load across up to 8 WAN links with Load Balancing. Policy-based Routing enables intelligent and flexible failover, for reliable and resilient connectivity. - High availability
Provide hardware redundancy to mission critical applications with the installation of a second Vigor 3910. The backup autonomously resumes connections in the event of hardware failover. - Manage multiple networks
Create up to 50 VLANs, port-based or tag-based. Each fully configurable for NAT or Routing, sharing resources between networks or isolated from each other.
Main Specifications
Product Description | Draytek Vigor 3910 – router – rack-mountable |
Device Type | Router |
Enclosure Type | Rack-mountable – 1U |
WAN Ports Qty | 8 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
Performance | NAT throughput: 9 Gbps VPN throughput: 3300 Mpps VPN throughput (SSL): 1000 Mbps |
Capacity | VPN tunnels: 500 Virtual interfaces (VLANs): 50 NAT sessions: 150000 Concurrent VPN tunnels: 500 Dynamic IP pool: 4093 Concurrent SSL VPN tunnels: 200 |
Network / Transport Protocol | IPSec, PPTP, L2TP, Bonjour, SMB, FTP, RTSP, DHCP, PPPoE, DHCPv6, IPv4, IPv6 |
Routing Protocol | Static IP routing, GRE, BGP, IGMP, OSPFv2, policy-based routing (PBR), RIP-1, RIP-2, RIPng, static IPv4 routing, static IPv6 routing |
Remote Management Protocol | HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP, TR-069 |
VoIP Protocols | H.323, SIP |
Features | Firewall protection, VPN support, load balancing, Syslog support, content filtering, DiffServ support, IPv6 support, firmware upgradable, TFTP support, QoS, DPD, IPSec NAT-T, DHCP server, DNS proxy, IPv4 support, DHCP client, Bandwidth Limiter, QoS for VOIP, DSCP based ToS, ToS, VoIP support, ALG support, ALGs, DMZ support, NAT support, port triggering, anti-spoofing protection, DoS attack prevention, URL filtering, Web Filtering, LAN-to-LAN bridging, port-based VLAN, tagged VLAN, DynDNS, reset button, High Availability, VPN concentrator |
Compliant Standards | IEEE 802.1Q, X.509, IEEE 802.1p, UPnP |
Power | AC 230V |
Dimensions (WxDxH) | 44.3 cm x 28.5 cm x 4.5 cm |
Weight | 3.23 kg |
Documents
Extended Specifications
General
Device Type | Router |
|---|---|
Enclosure Type | Rack-mountable – 1U |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
Performance | NAT throughput: 9 Gbps VPN throughput: 3300 Mpps VPN throughput (SSL): 1000 Mbps |
Capacity | VPN tunnels: 500 Virtual interfaces (VLANs): 50 NAT sessions: 150000 Concurrent VPN tunnels: 500 Dynamic IP pool: 4093 Concurrent SSL VPN tunnels: 200 |
Network / Transport Protocol | IPSec, PPTP, L2TP, Bonjour, SMB, FTP, RTSP, DHCP, PPPoE, DHCPv6, IPv4, IPv6 |
Routing Protocol | Static IP routing, GRE, BGP, IGMP, OSPFv2, policy-based routing (PBR), RIP-1, RIP-2, RIPng, static IPv4 routing, static IPv6 routing |
Remote Management Protocol | HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP, TR-069 |
Encryption Algorithm | DES, Triple DES, MD5, MPPE, SHA-1, 256-bit SHA, AES, IKEv2, SSL |
Authentication Method | X.509 certificates, LDAP, RADIUS, XAUTH authentication, TACACS+ |
Features | Firewall protection, VPN support, load balancing, Syslog support, content filtering, DiffServ support, IPv6 support, firmware upgradable, TFTP support, QoS, DPD, IPSec NAT-T, DHCP server, DNS proxy, IPv4 support, DHCP client, Bandwidth Limiter, QoS for VOIP, DSCP based ToS, ToS, VoIP support, ALG support, ALGs, DMZ support, NAT support, port triggering, anti-spoofing protection, DoS attack prevention, URL filtering, Web Filtering, LAN-to-LAN bridging, port-based VLAN, tagged VLAN, DynDNS, reset button, High Availability, VPN concentrator |
Compliant Standards | IEEE 802.1Q, X.509, IEEE 802.1p, UPnP |
Status Indicators | Link/activity, power, SFP, USB |
IP Telephony
VoIP Protocols | H.323, SIP |
|---|
Expansion / Connectivity
Interfaces | WAN / LAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 WAN / LAN: 2 x 2.5GBase-T – RJ-45 WAN / LAN: 2 x 10Gb Ethernet / 1Gb Ethernet – SFP+ LAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 USB 3.0: 2 x 9 pin USB Type A Management: 1 x RS-232 – RJ-45 |
|---|
Power
Power Device | Internal power supply |
|---|---|
Voltage Required | AC 230V |
Power Consumption Operational | 20 Watt |
Miscellaneous
Rack Mounting Kit | Included |
|---|
Dimensions & Weight
Width | 44.3 cm |
|---|---|
Depth | 28.5 cm |
Height | 4.5 cm |
Weight | 3.23 kg |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 45 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
