Eaton 9SX 3000I, UPS, AC 200/208/220/230/240 V, 2700 Watt, 3000 VA, RS-232, USB, output connectors: 6, PFC, Australia
$5,815.42 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
The Eaton 9SX uninterruptible power system (UPS) protects your sensitive electronic equipment from the most common power problems, including power failures, power sags, power surges, brownouts, line noise, high voltage spikes, frequency variations, switching transients, and harmonic distortion. Power outages can occur when you least expect it and power quality can be erratic. These power problems have the potential to corrupt critical data, destroy unsaved work sessions, and damage hardware – causing hours of lost productivity and expensive repairs.
- True online double-conversion technology with high power density, utility frequency independence, and generator compatibility
- ABM technology that uses advanced battery management to increase battery service life, optimize recharge time, and provide a warning before the end of useful battery life
- Selectable high efficiency mode of operation
- Firmware that is easily upgradable without a service call
- Remote on/off control through Remote On/Off (ROO) and Remote Power Off (RPO) ports
Main Specifications
Product Description | Eaton 9SX 3000I – UPS – 2700 Watt – 3000 VA |
Device Type | UPS – Power Factor Correction (PFC) – external |
Input Voltage | AC 200/208/220/230/240 V |
Power Capacity | 2700 Watt / 3000 VA |
Input Connectors | 1 x power IEC 60320 C20 |
Output connectors | 5 x power Australian 3-pin 1 x power IEC 60320 C19 |
Battery | Expandable |
Run Time (Up To) | 5 min at full load |
Networking | RS-232, USB |
Dimensions (WxDxH) | 21.4 cm x 41.2 cm x 34.6 cm |
Extended Specifications
General
Device Type | UPS – Power Factor Correction (PFC) – external |
|---|
Power Device
UPS Technology | On-line |
|---|---|
Input Voltage | AC 200/208/220/230/240 V |
Input Voltage Range | AC 140 – 276 V |
Frequency Provided | 50/60 Hz |
Frequency Required | 40 – 70 Hz |
Input Connectors | 1 x power IEC 60320 C20 |
Power Output Connectors Details | 5 x power Australian 3-pin 1 x power IEC 60320 C19 |
Output Voltage | 50/60 Hz |
Power Capacity | 2700 Watt / 3000 VA |
Battery
Type | Expandable |
|---|---|
Run Time (Up To) | 5 min at full load 79 min at 270 Watts 41 min at 540 Watts 27 min at 832 Watts 20 min at 1102 Watts 15 min at 1327 Watts 11 min at 1665 Watts 9 min at 1890 Watts 8 min at 2097 Watts 7 min at 2295 Watts 6 min at 2565 Watts |
Networking
Remote Management Interface | RS-232, USB |
|---|
Expansion / Connectivity
Interfaces | 1 x management (RS-232) 1 x management (USB) – 4 pin USB Type B EPO (emergency power off) |
|---|---|
Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
Miscellaneous

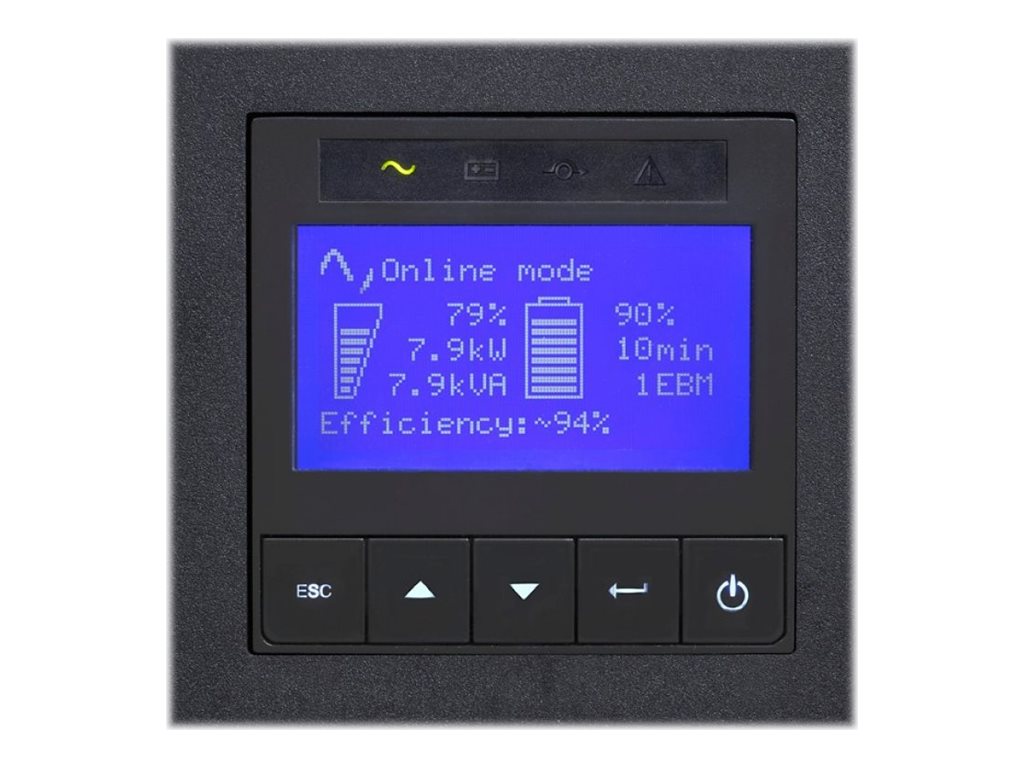

Features | Advance Battery Management (ABM), LCD display, deep discharge protection, automatic self-test |
|---|---|
Compliant Standards | FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1 |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Sound Emission | 45 dB |
Dimensions & Weight
Width | 21.4 cm |
|---|---|
Depth | 41.2 cm |
Height | 34.6 cm |
