Eaton 9SX 9SX1000I-AU, UPS, AC 200/208/220/230/240 V, 900 Watt, 1000 VA, RS-232, USB, output connectors: 4, PFC
$2,395.38 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
The Eaton 9SX uninterruptible power system (UPS) protects your sensitive electronic equipment from the most common power problems, including power failures, power sags, power surges, brownouts, line noise, high voltage spikes, frequency variations, switching transients, and harmonic distortion. Power outages can occur when you least expect it and power quality can be erratic. These power problems have the potential to corrupt critical data, destroy unsaved work sessions, and damage hardware – causing hours of lost productivity and expensive repairs.
- True online double-conversion technology with high power density, utility frequency independence, and generator compatibility
- ABM technology that uses advanced battery management to increase battery service life, optimize recharge time, and provide a warning before the end of useful battery life
- Selectable high efficiency mode of operation
- Firmware that is easily upgradable without a service call
- Remote on/off control through Remote On/Off (ROO) and Remote Power Off (RPO) ports
Main Specifications
Product Description | Eaton 9SX 9SX1000I-AU – UPS – 900 Watt – 1000 VA |
Device Type | UPS – Power Factor Correction (PFC) – external |
Weight | 14.8 kg |
Input Voltage | AC 200/208/220/230/240 V |
Power Capacity | 900 Watt / 1000 VA |
Input Connectors | 1 x power IEC 60320 C14 |
Output connectors | 4 x power 3-pole |
Battery | Expandable |
Run Time (Up To) | 5 min |
Networking | RS-232, USB |
Dimensions (WxDxH) | 16 cm x 38.7 cm x 25.2 cm |
Extended Specifications
General
Device Type | UPS – Power Factor Correction (PFC) – external |
|---|
Power Device
UPS Technology | On-line |
|---|---|
Input Voltage | AC 200/208/220/230/240 V |
Input Voltage Range | AC 120 – 276 V |
Frequency Provided | 50/60 Hz |
Frequency Required | 50/60 Hz |
Input Connectors | 1 x power IEC 60320 C14 |
Power Output Connectors Details | 4 x power 3-pole |
Output Voltage | 50/60 Hz |
Power Capacity | 900 Watt / 1000 VA |
Battery
Type | Expandable |
|---|---|
Run Time (Up To) | 5 min at full load |
Networking
Remote Management Interface | RS-232, USB |
|---|
Expansion / Connectivity

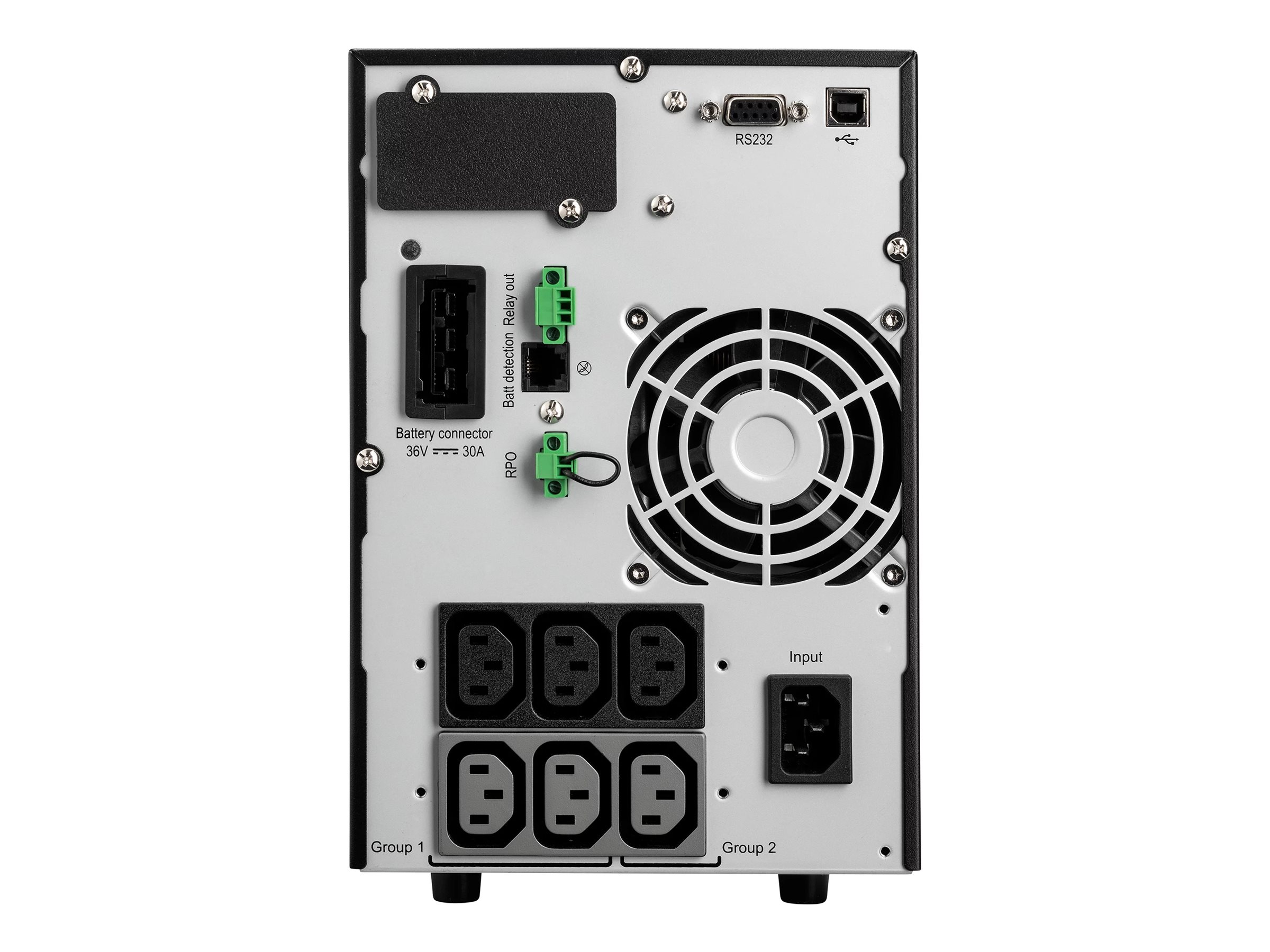

Interfaces | 1 x management (RS-232) 1 x management (USB) EPO (emergency power off) – mini terminal block Relay output – mini terminal block |
|---|---|
Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
Miscellaneous

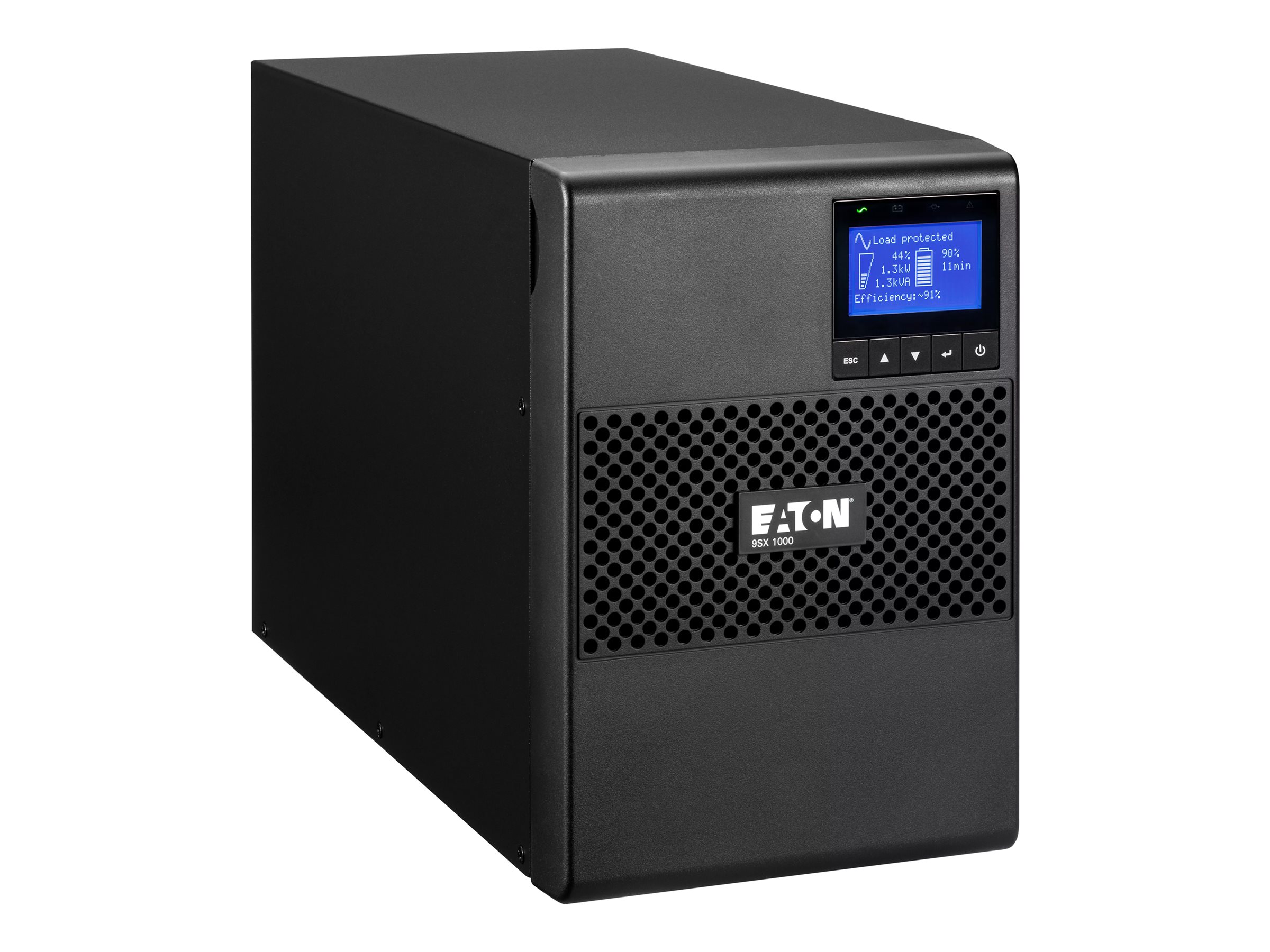

Features | LCD display |
|---|---|
Compliant Standards | EN 62040-1, IEC 62040-1, UL 1778, EN 62040-2, IEC 62040-2, FCC Class B certified, CISPR 22 Class B, CB, TUV, cULus, EAC, RCM |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Sound Emission | 41 dB |
Dimensions & Weight
Width | 16 cm |
|---|---|
Depth | 38.7 cm |
Height | 25.2 cm |
Weight | 14.8 kg |
Additional information
| Manufacturer |
|---|
