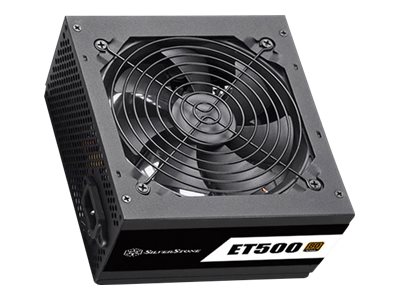

SilverStone ET500, Power supply (internal), ATX12V / EPS12V, 80 PLUS Bronze, 500 Watt, active PFC, black
$79.68 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland, Wellington, or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- Collection can be arranged
Description
- High efficiency with 80 PLUS Bronze certification
- 24/7 continuous power output with 40? operating temperature
- Class-leading single +12V rail
- Multiple protection circuitry
- Silent running 120mm fan with 18 dBA
- PCI-E 8pin and PCI-E 6pin connectors support
- Active PFC
Main Specifications
Product Description | SilverStone ET500 – power supply – 500 Watt |
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
Specification Compliance | ATX12V / EPS12V |
80 PLUS Certification | 80 PLUS Bronze |
Weight | 1.44 kg |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 500 Watt |
Output Current | +3.3V – 15 A +5V – 15 A +12V1 – 38 A +5VSB – 2.5 A -12V – 0.3 A |
Output connectors | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 2 x 8 pin PCI Express power with detachable 2 pin section 6 x 15 pin Serial ATA power 3 x 4 PIN internal power |
Cooling System | 120 mm fan |
Colour | Black |
Dimensions (WxDxH) | 15 cm x 14 cm x 8.6 cm |
Extended Specifications
General
Device Type | Power supply – active Power Factor Correction (PFC) – internal |
|---|---|
Specification Compliance | ATX12V / EPS12V |
PSU Form Factor | ATX |
Colour | Black |
Power Device
Input Voltage Range | AC 100 – 264 V |
|---|---|
Frequency Required | 47 – 64 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 2 x 8 pin PCI Express power with detachable 2 pin section 6 x 15 pin Serial ATA power 3 x 4 PIN internal power |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 500 Watt |
Output Current | +3.3V – 15 A +5V – 15 A +12V1 – 38 A +5VSB – 2.5 A -12V – 0.3 A |
Efficiency | 82%-85% at 20%-100% Load |
Power Factor (PF) | 0.9 |
80 PLUS Certification | 80 PLUS Bronze |
Miscellaneous
MTBF | 100,000 hours |
|---|---|
Cooling System | 120 mm fan |
Features | Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, single 12V rail |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Sound Emission | 18 dBA |
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 14 cm |
Height | 8.6 cm |
Weight | 1.44 kg |
