Description
Add 4 SuperSpeed USB 3.0 ports to a computer through a PCI slot. The PCIUSB3S4 4-Port PCI to USB 3.0 Card enables legacy PCI slots to support the SuperSpeed USB 3.0 standard, which is capable of data transfer rates up to 5 Gbps. Using USB 3.0 devices with this card will increase data transfer rates with up to 1.3 Gbps of available bandwidth (PCI bus limit) – more than doubling performance compared to a USB 2.0 connection.
This versatile USB 3.0 adapter includes an optional SATA power connector which allows each USB port to deliver up to 900mA of power to connected USB 3.0 devices – suitable for even the most power hungry devices.
A perfect solution for older PCI-based systems or computers with only PCI expansion slots remaining, the card allows those systems to stay relevant and up-to-date with the latest USB technology. The card is also backward compatible with USB 2.0 and 1.x devices, so it will not only work with any future USB 3.0 devices, but will also support older devices.

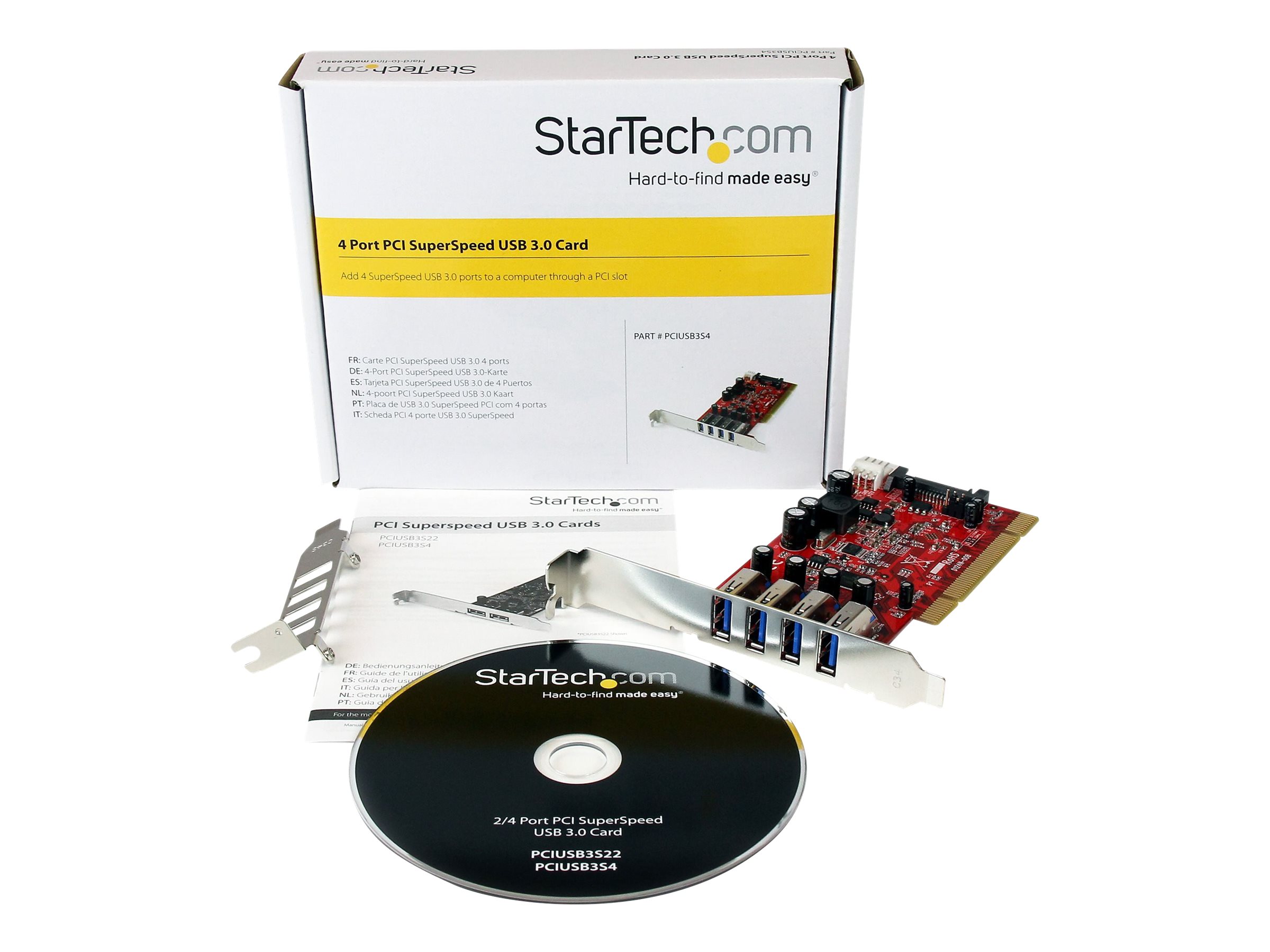

What’s in the Box
- StarTech.com 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA / SP4 Power
- Low-profile bracket
Main Specifications
Product Description | Startech 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA/SP4 Power – Quad Port PCI USB 3 Controller Card (PCIUSB3S4) – USB adapter – PCI-X – USB 3.0 x 4 |
Device Type | USB adapter |
Form Factor | Plug-in card – low profile |
Interface (Bus) Type | PCI-X |
Bus Voltage | Universal (3.3 V & 5.0 V) |
Ports | USB 3.0 x 4 |
Dimensions (WxDxH) | 2 cm x 13.3 cm x 6.5 cm |
Weight | 80 g |
Data Link Protocol | USB, USB 2.0, USB 3.0 |
Data Transfer Rate | 5 Gbps |
Processor | NEC uPD720202 |
Compliant Standards | USB 1.1, USB 2.0, USB 3.0 |
Colour | Red |
System Requirements | Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits) |
Designed For | P/N: HBS304A24A, S3510BMU33, S3510SMU33, UNI251BMU33, USB221SS |
Extended Specifications
General
Device Type | USB adapter |
|---|
Form Factor | Plug-in card – low profile |
|---|
Interface (Bus) Type | PCI-X |
|---|
Bus Voltage | Universal (3.3 V & 5.0 V) |
|---|
Networking
Ports | USB 3.0 x 4 |
|---|
Connectivity Technology | Wired |
|---|
Data Link Protocol | USB, USB 2.0, SuperSpeed USB 3.0 |
|---|
Data Transfer Rate | 5 Gbps |
|---|
Compliant Standards | USB 1.1, USB 2.0, USB 3.0 |
|---|
Processor / Memory
Expansion / Connectivity
Interfaces | 4 x USB 3.0 – 9 pin USB Type A |
|---|
Compatible Slots | 1 x PCI-X |
|---|
Miscellaneous
Included Accessories | Low-profile bracket |
|---|
Compliant Standards | FCC, RoHS |
|---|
Colour | Red |
|---|
Software / System Requirements
Software Included | Drivers & Utilities |
|---|
OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits) |
|---|
Dimensions & Weight
Width | 2 cm |
|---|
Depth | 13.3 cm |
|---|
Height | 6.5 cm |
|---|
Weight | 80 g |
|---|
Environmental Parameters
Min Operating Temperature | 5 °C |
|---|
Max Operating Temperature | 50 °C |
|---|
Humidity Range Operating | 15 – 90% |
|---|
Compatibility Information
Designed For | P/N: HBS304A24A, S3510BMU33, S3510SMU33, UNI251BMU33, USB221SS |
|---|
