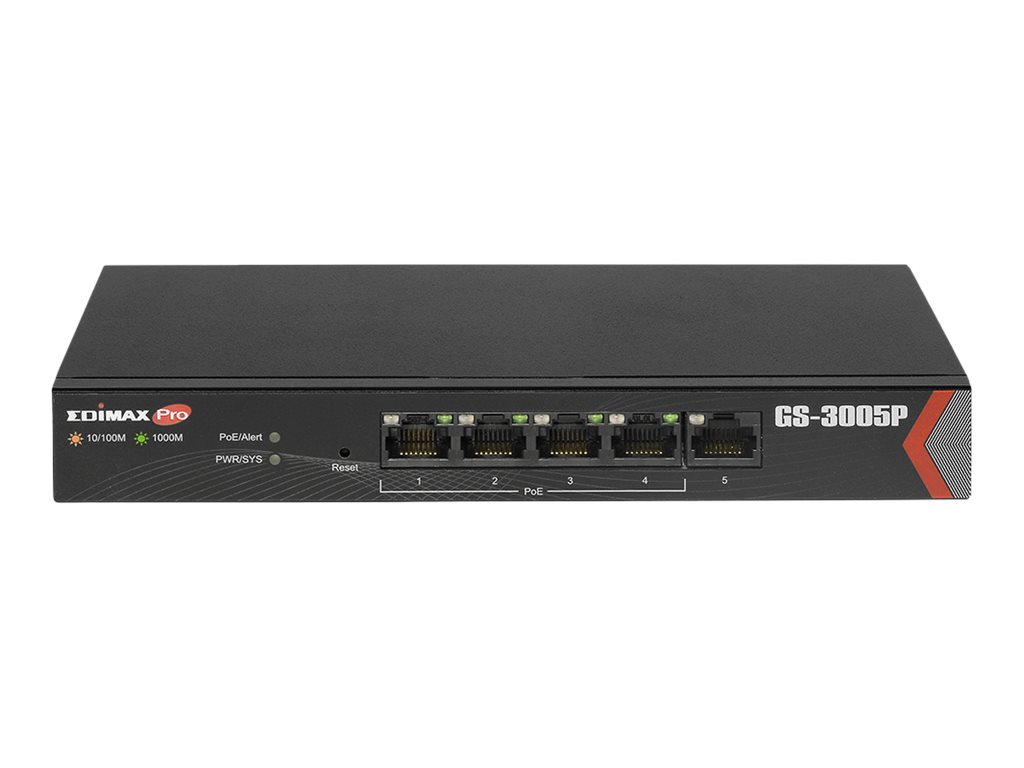

Edimax Pro GS-3005P, Switch, smart, 5 x 10/100/1000 (4 PoE+), desktop, PoE+ (72 W)
$160.14 inc GST
✓ In Stock - 15 available
✓ Free NZ Delivery
15 in stock
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
Description
The Edimax Pro GS-3005P is a web-smart switch with 4 Gigabit PoE+ ports. Designed for small office and home office network environments, its desktop form-factor allows for integration in the most widely used SMB offices.
- PoE for easy installation and better cost efficiency
- Power and data distance extension
- Smart tools for improved network efficiency and security
- PoE for easy installation and better cost efficiency
PoE technology enables the Ethernet cable to carry both data and power, reducing cable installation and eliminating the need for extension cords or electrical outlets on the walls and ceiling. - Power and data distance extension
The GS-3005P provides extended PoE power delivery to a long distance. The specification creates flexibility in planning for installing PoE-enabled devices such as IP cameras. - Smart tools for improved network efficiency and security
The GS-3005P features smart and simple network monitoring tools that allow for improved network efficiency and security. The web-based interface management features include QoS bandwidth control for better traffic management, VLAN for enhanced network security.
What’s in the Box
- Edimax Pro GS-3005P
- External power adapter
Main Specifications
Product Description | Edimax Pro GS-3005P – switch – 5 ports – smart |
Device Type | Switch – 5 ports – smart |
Subtype | Gigabit Ethernet |
Ports | 5 x 10/100/1000 (4 PoE+) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 72 W |
Performance | Switching capacity: 10 Gbps Forwarding performance: 35.712 Mpps |
MAC Address Table Size | 4K entries |
Jumbo Frame Support | 9KB |
Remote Management Protocol | HTTP |
Features | VLAN support, QoS, fanless, IGMP snooping, ACL support, store and forward, reset button, 128KB packet buffer, Broadcast Storm Control, LACP support, Energy Efficient Ethernet, flow control, loop prevention, firmware upgradable, over-current protection, over-voltage protection, undercurrent protection, undervoltage protection |
Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3ab, IEEE 802.3, IEEE 802.3x, IEEE 802.3az |
Power | AC 120/230 V (50/60 Hz) |
Dimensions (WxDxH) | 19.3 cm x 8.4 cm x 2.6 cm |
Weight | 390 g |
Extended Specifications
General
Device Type | Switch – 5 ports – smart |
|---|---|
Enclosure Type | Desktop |
Subtype | Gigabit Ethernet |
Ports | 5 x 10/100/1000 (4 PoE+) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 72 W |
Performance | Switching capacity: 10 Gbps Forwarding performance: 35.712 Mpps |
MAC Address Table Size | 4K entries |
Jumbo Frame Support | 9KB |
Remote Management Protocol | HTTP |
Features | VLAN support, QoS, fanless, IGMP snooping, ACL support, store and forward, reset button, 128KB packet buffer, Broadcast Storm Control, LACP support, Energy Efficient Ethernet, flow control, loop prevention, firmware upgradable, over-current protection, over-voltage protection, undercurrent protection, undervoltage protection |
Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3ab, IEEE 802.3, IEEE 802.3x, IEEE 802.3az |
Status Indicators | Link/activity, power, status |
Expansion / Connectivity
Interfaces | 4 x 1000Base-T RJ-45 PoE+ – 30 W 1 x 1000Base-T RJ-45 |
|---|
Power
Power Device | External power adapter |
|---|---|
Power Provided | 55 V – 1.3 A |
Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous
Compliant Standards | FCC Class A certified, RoHS |
|---|
Dimensions & Weight
Width | 19.3 cm |
|---|---|
Depth | 8.4 cm |
Height | 2.6 cm |
Weight | 390 g |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 – 90% (non-condensing) |
