Description

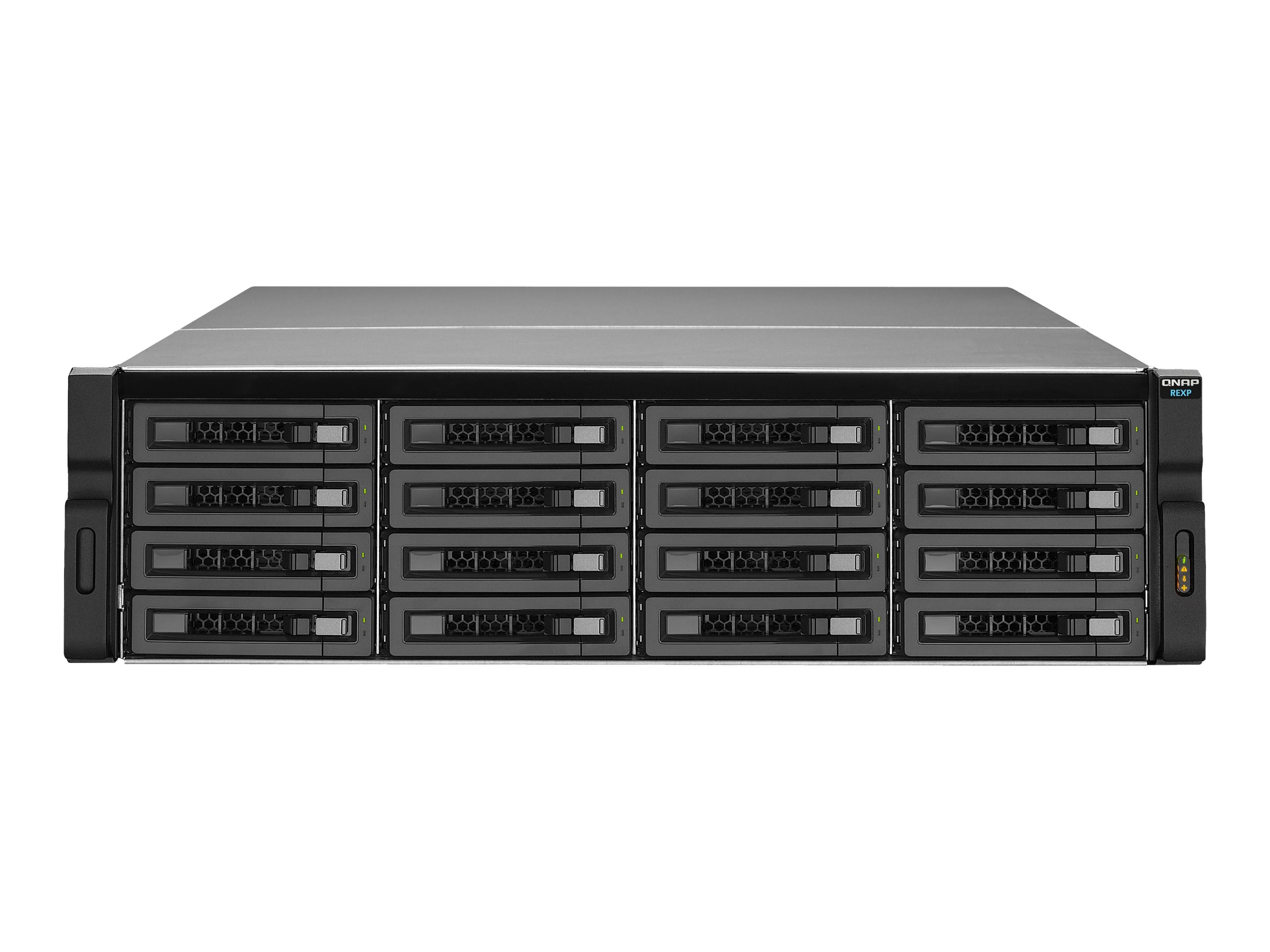

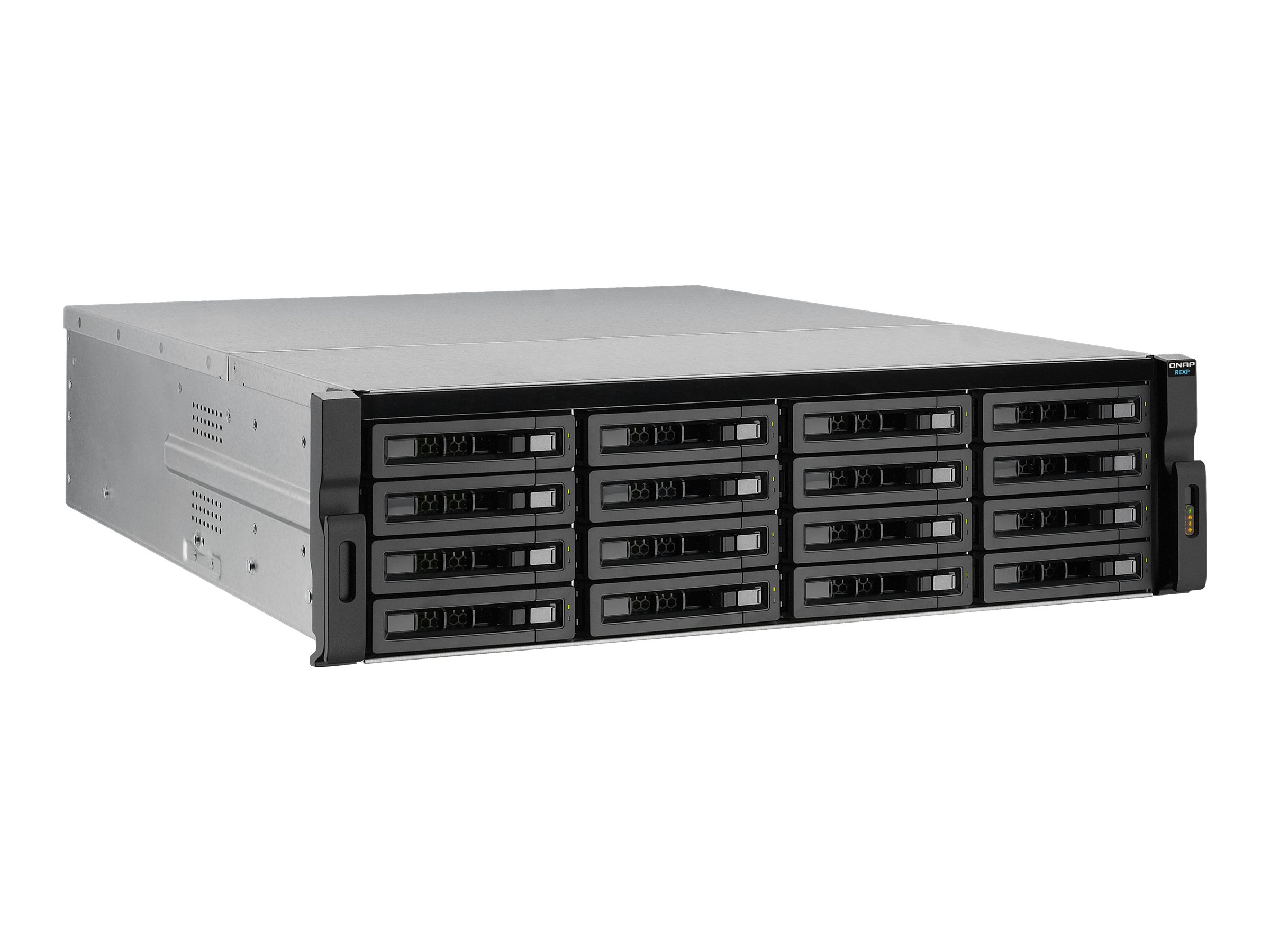

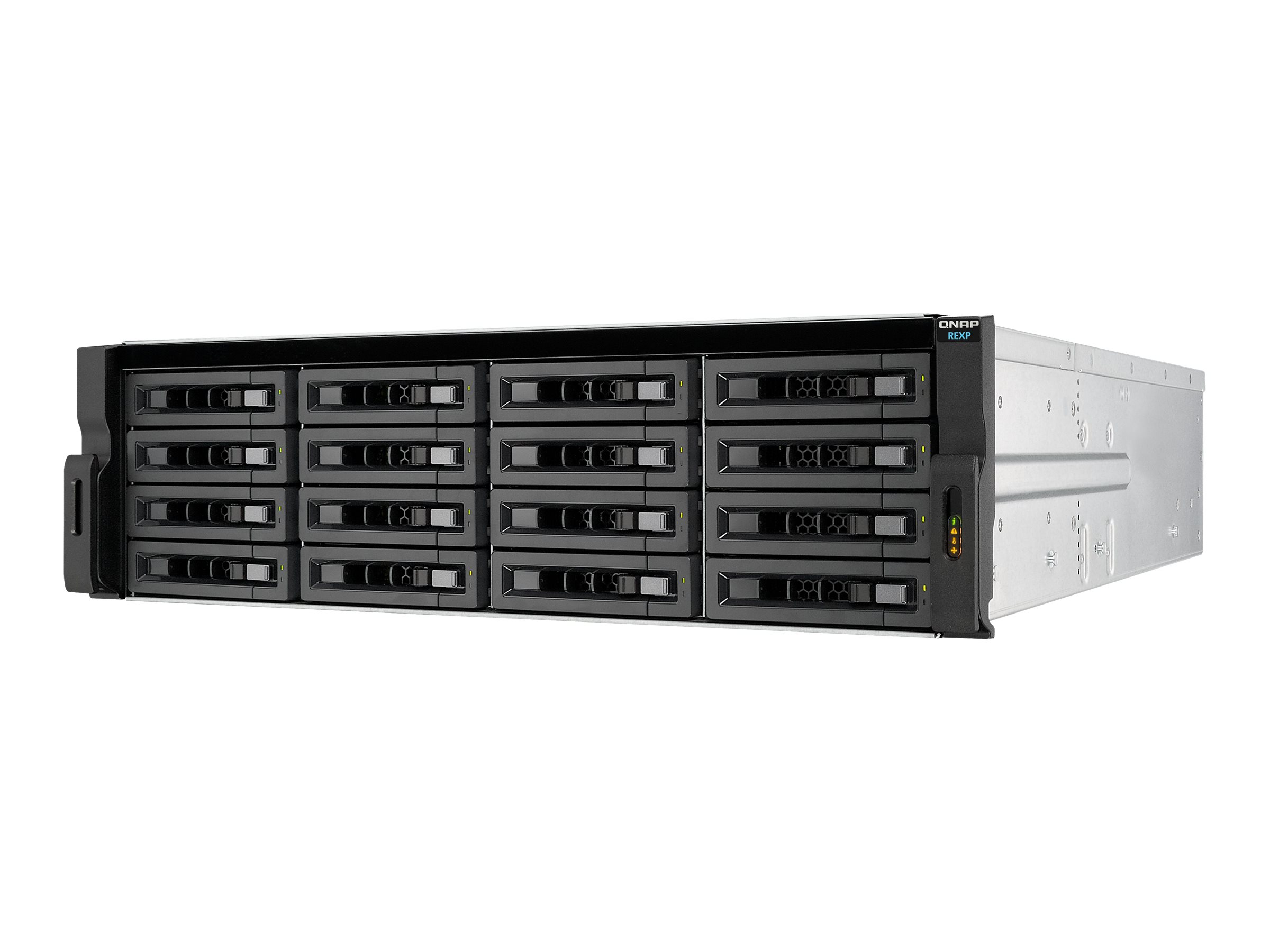

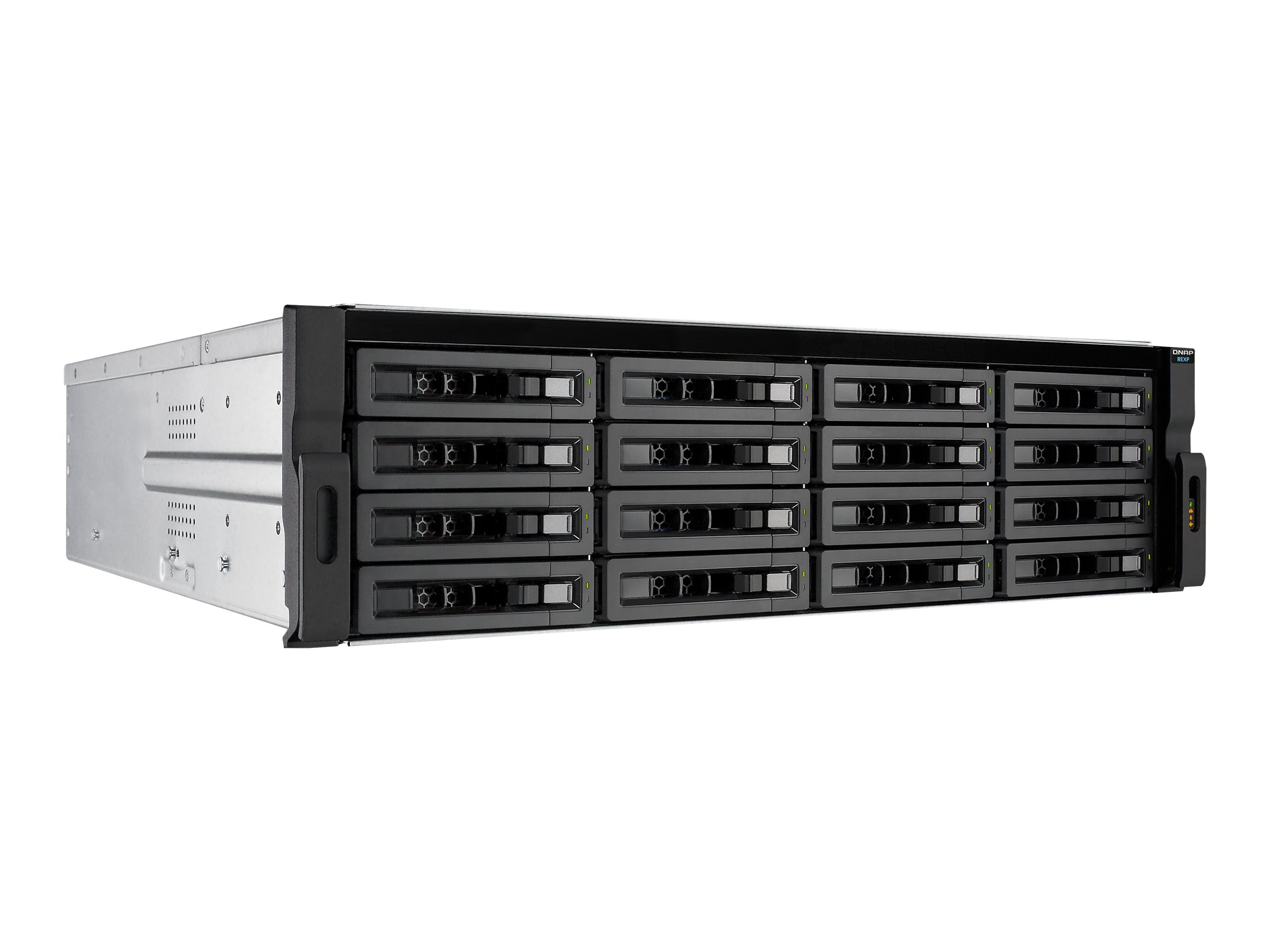

The REXP-1610U-RP expansion enclosure is designed for expanding the storage space on NAS by attaching multiple expansion enclosures via high-speed mini SAS cables. It is a flexible and budget-friendly solution for organizations to tackle applications with intense data growth without needing a large up-front investment.
- Plug and use, seamless capacity expansion
- Missing mode protection
- Plug and use, seamless capacity expansion
Simply connect a REXP-1610U-RP to a compatible NAS and power it on. - Missing mode protection
If the disconnection of an expansion enclosure is detected, the NAS blocks I/O access to protect data. The system can recover from missing mode to its normal state with the data staying intact.
Main Specifications
Product Description | QNAP REXP-1610U-RP – storage enclosure |
Device Type | Storage enclosure |
Enclosure Type | Rack-mountable – 3U |
Installed Devices / Modules Qty | 0 (installed) / 16 (max) |
Supported Drives | SATA-600 |
Hard Drive | No HDD |
Power | AC 120/230 V – 50/60 Hz |
Power Redundancy | Yes |
Dimensions (WxDxH) | 44.24 cm x 52.83 cm x 13 cm |
Weight | 18.14 kg |
Extended Specifications
General
Device Type | Storage enclosure |
|---|
Enclosure Type | Rack-mountable – 3U |
|---|
Chassis
Installed Devices / Modules Qty | 0 |
|---|
Supported Devices / Modules Qty | 16 |
|---|
Supported Drives | SATA-600 |
|---|
Processor
Hard Drive
Expansion / Connectivity
Expansion Bays | 16 (total) / 16 (free) x hot-swap – 2.5" / 3.5" shared |
|---|

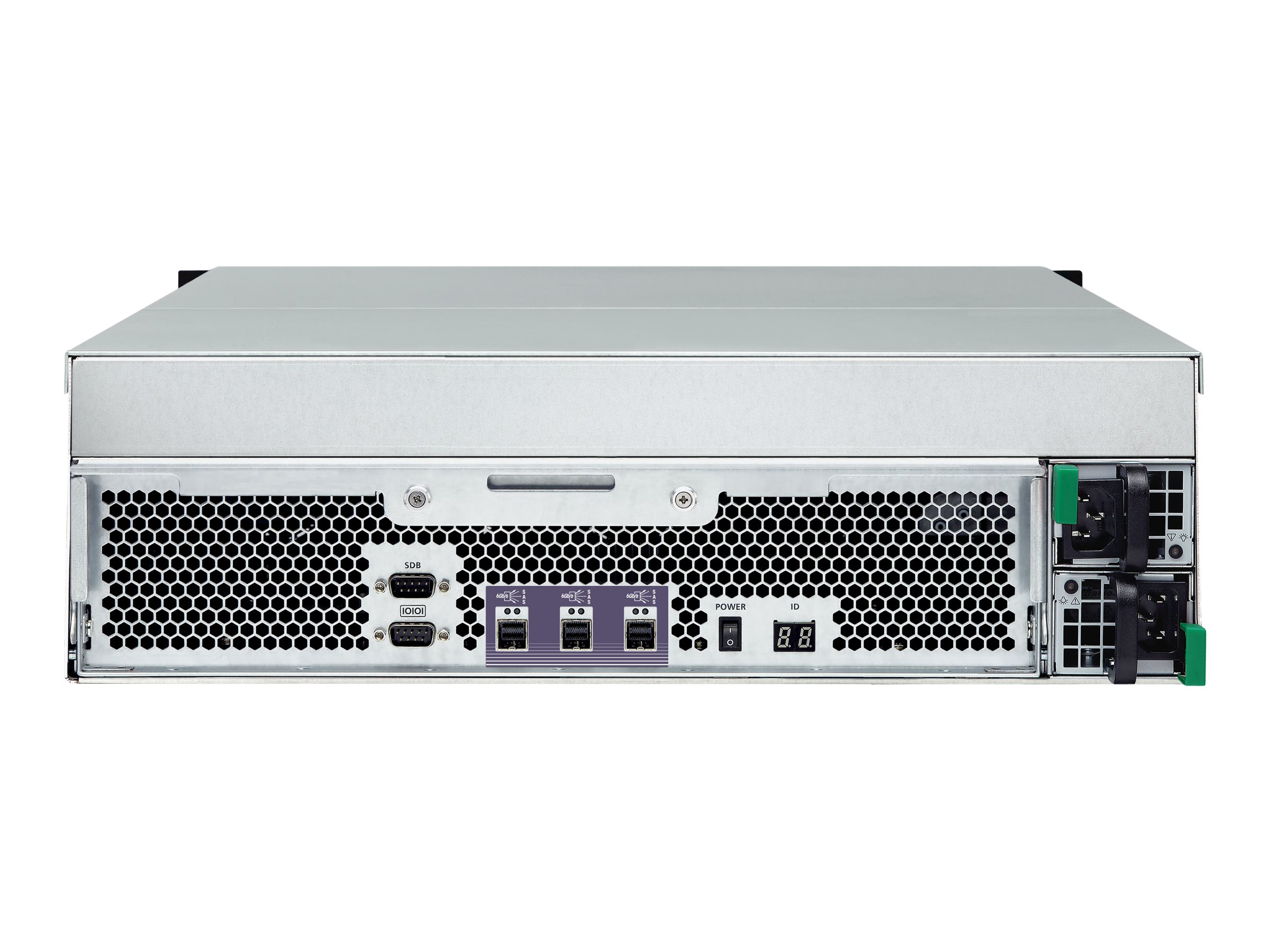

Interfaces | 3 x SAS 6Gb/s – 36 pin 4x Mini SAS HD (SFF-8644) |
|---|
Miscellaneous
Features | Built-in 3 cooling fans, hot-swappable fans |
|---|
Cables Included | 1 x SAS cable – 50 cm |
|---|
Included Accessories | Screws |
|---|
Power
Power Device | 2 x internal power supply – hot-plug |
|---|
Max Supported Qty | 2 |
|---|
Power Redundancy | Yes |
|---|
Power Redundancy Scheme | 1+1 |
|---|
Voltage Required | AC 120/230 V – 50/60 Hz |
|---|
Power Consumption Operational | 204.4 watt |
|---|
Power Provided | 650 watt |
|---|
Dimensions & Weight
Width | 44.24 cm |
|---|
Depth | 52.83 cm |
|---|
Height | 13 cm |
|---|
Weight | 18.14 kg |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 5 – 95% (non-condensing) |
|---|
Sound Emission | 36.7 dBA |
|---|
