Description
The 802.11ac Wi-Fi combined with advanced 3×3 MIMO technology ensures superior Wi-Fi speeds and coverage over 2.4GHz and 5GHz wireless bands. Captive portal provides one convenient method of authentication for Wi-Fi guests by requiring users to perform certain actions before network access is allowed. It can control connections to your network with a voucher system and customized authentication page that can provide a branded experience, advertise to customers, or offer coupons.
The EAP’s low profile design and easy mount chassis make it easy to install on any wall or ceiling surface and allow it to blend in with most interior decorating styles. EAP devices also support Power over Ethernet (PoE), making deployment effortless and flexible. The business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It’s the perfect fit for motels, salons, chain-stores, schools, and restaurants.
- Superior Wi-Fi speeds with 3×3 11ac MIMO technology Efficient guest authentication Flexible deployment Unified Wi-Fi for multi-user business environment
- Superior Wi-Fi speeds with 3×3 11ac MIMO technology
The 802.11ac Wi-Fi combined with advanced 3×3 MIMO technology ensures superior Wi-Fi speeds and coverage over 2.4GHz and 5GHz wireless bands. - Efficient guest authentication
Captive portal provides one convenient method of authentication for Wi-Fi guests by requiring users to perform certain actions before network access is allowed. It can control connections to your network with a voucher system and customized authentication page that can provide a branded experience, advertise to customers, or offer coupons. - Flexible deployment
The EAP’s low profile design and easy mount chassis make it easy to install on any wall or ceiling surface and allow it to blend in with most interior decorating styles. EAP devices also support Power over Ethernet (PoE), making deployment effortless and flexible. - Unified Wi-Fi for multi-user business environment
The business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It’s the perfect fit for motels, salons, chain-stores, schools, and restaurants.

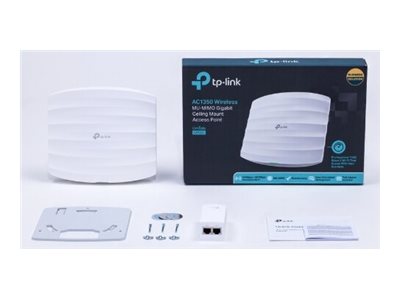

What’s in the Box
- TP-LINK Auranet EAP225
- Wall mounting kit, ceiling mounting kit
Main Specifications
Product Description | TP-Link Omada EAP225 – radio access point – Wi-Fi 5 |
Device Type | Radio access point |
Form Factor | External |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
Frequency Band | 2.4 GHz, 5 GHz |
Capacity | Maximum number of configured SSIDs (2.4 Ghz): 8
Maximum number of configured SSIDs (5 Ghz): 8 |
Included Accessories | Wall mounting kit, ceiling mounting kit |
OS Required | Microsoft Windows XP / Vista / 7 / 8 / 10 |
Power Over Ethernet (PoE) Supported | PoE |
Dimensions (WxDxH) | 20.55 cm x 18.15 cm x 3.71 cm |
Extended Specifications
General
Device Type | Radio access point |
|---|
Width | 20.55 cm |
|---|
Depth | 18.15 cm |
|---|
Height | 3.71 cm |
|---|
Networking
Form Factor | External |
|---|
Connectivity Technology | Wireless |
|---|
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
|---|
Remote Management Protocol | SNMP 1, Telnet, SNMP 2c, HTTP, HTTPS, CLI |
|---|
Frequency Band | 2.4 GHz, 5 GHz |
|---|
Capacity | Maximum number of configured SSIDs (2.4 Ghz): 8
Maximum number of configured SSIDs (5 Ghz): 8 |
|---|
Wi-Fi Rating | AC1350 |
|---|
Features | Load balancing, VLAN support, Syslog support, manageable, E-mail alert, MAC address filtering, wall mountable, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), Multiple SSID support, reset button, rogue access point detection, ceiling mountable, Captive Portal, security lock slot (cable lock sold separately), Watch Dog Timer (WDT), MU-MIMO technology, beamforming technology, passive PoE supported, band steering, rate limit, Wireless Scheduler, Airtime Fairness |
|---|
Encryption Algorithm | WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WEP |
|---|
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n |
|---|
Aerial
Antenna | Internal |
|---|
Antenna Qty | 5 |
|---|
Directivity | Omni-directional |
|---|
Expansion / Connectivity
Interfaces | 1 x 1000Base-T (PoE) – RJ-45 |
|---|
Miscellaneous
Included Accessories | Wall mounting kit, ceiling mounting kit |
|---|
Compliant Standards | FCC, RoHS |
|---|
Power
Power Over Ethernet (PoE) Supported | PoE |
|---|
Power Consumption Operational | 12.6 watt |
|---|
Software / System Requirements
Software Included | Omada Controller |
|---|
OS Required | Microsoft Windows XP / Vista / 7 / 8 / 10 |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 10 – 90% (non-condensing) |
|---|
