Description

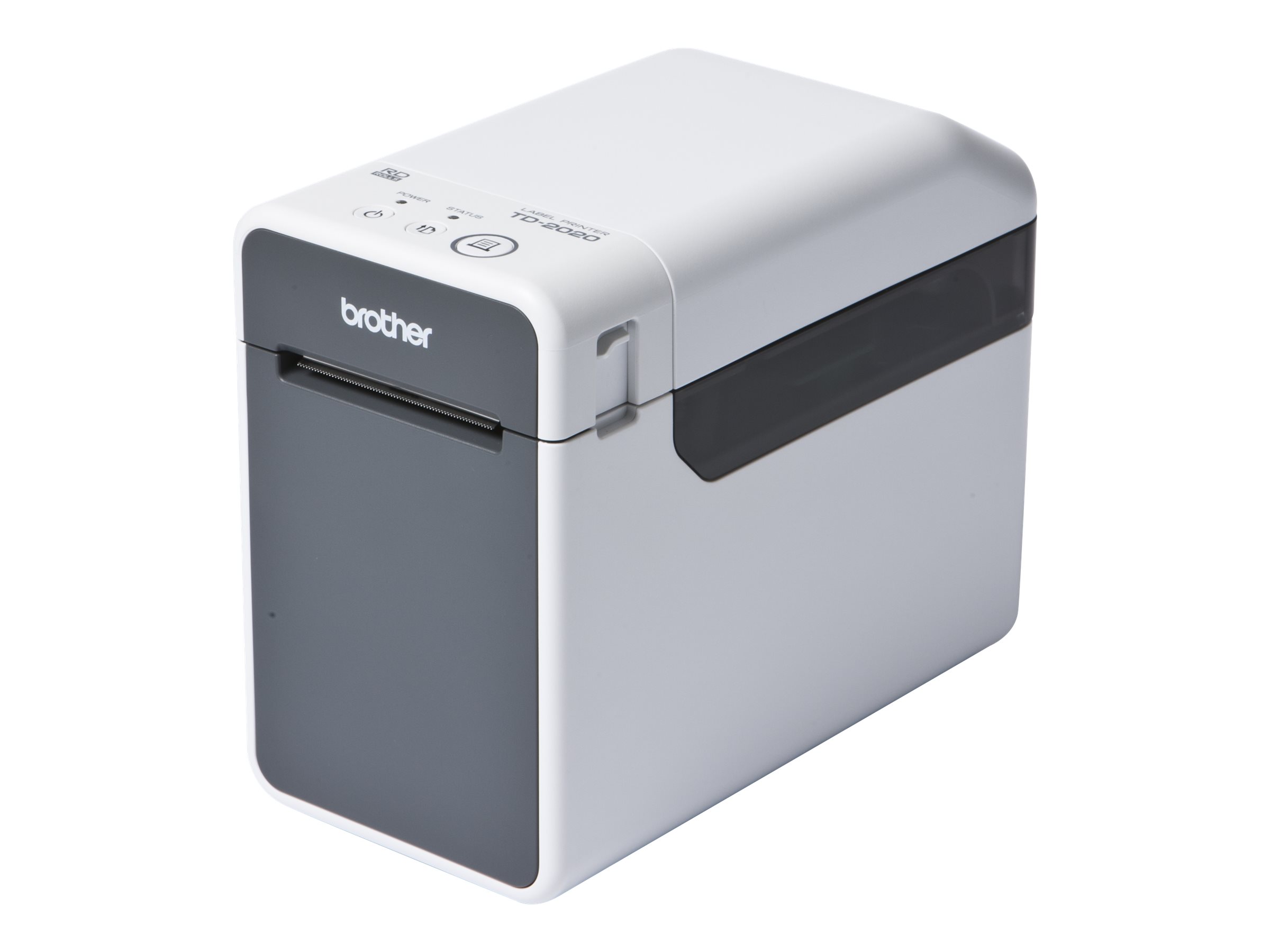

Designed for use in almost any retail work space, the TD-2020 is among the most compact and fastest 2.2-inch wide desktop thermal printers for retail applications. At 203dpi, it prints price, mark-down, product identification, returns and shelf-edge labels quickly at up to 6ips. Also prints tags and receipts for kiosk and POS applications. An innovative drop-in roll, spindle-less design helps make loading easy with existing or standard converted media.
- High speed printing
- Small size, but big on performance
- Ergonomic design
- Adjustable edge-to-edge media sensor
- Print from a database
- Small size, but big on performance
Although these printers are among the smallest desktop thermal printers in their class, they also lead in performance over many 203 dpi print resolution desktop thermal printers. - Ergonomic design
Uses an innovative spindle-less design that accepts labels, tags or receipt media with virtually any core size for a true drop-in media roll loading experience on a desktop, cart or even mounted to a wall. - Adjustable edge-to-edge media sensor
Flexibility to detect and print on more types of existing thermal media to help avoid converting custom media. - Print from a database
Helps save time and increase accuracy by printing labels, tags and receipts linked directly to Microsoft SQL Server, Access or Excel database files.
What’s in the Box
- Brother TD-2020
- USB cable
- Power adapter
Main Specifications
Product Description | Brother TD-2020 – label printer – B/W – direct thermal |
Printer Type | Label printer – direct thermal – B/W |
Weight | 1.34 kg |
Min Media Size (Custom) | 19 mm |
Max Media Size (Custom) | 63 mm |
Max Resolution (B&W) | 203 dpi |
Interface | USB 2.0, serial |
RAM Installed (Max) | 6 MB (32 MB) |
Flash Memory Installed (Max) | 16 MB |
Language Simulation | EPSON ESC/P, ZPL II |
Media Type | Receipt paper, die cut labels |
Fonts | Brussels, Helsinki, Letter Gothic Bold, Gothic |
Features | Black Mark sensor, gap sensor, tear bar |
System Requirements | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Vista / XP / 7 / 8 |
Dimensions (WxDxH) | 11.1 cm x 21.5 cm x 17.2 cm |
Documents
Extended Specifications
General
Printer Type | Label printer – direct thermal – monochrome |
|---|
Printer
Built-in Devices | Tear bar |
|---|
Connectivity Technology | Wired |
|---|
Interface | USB 2.0, serial |
|---|
Max Resolution (B&W) | 203 dpi |
|---|
Language Simulation | EPSON ESC/P, ZPL II |
|---|
Fonts | Brussels, Helsinki, Letter Gothic Bold, Gothic |
|---|
Features | Black Mark sensor, gap sensor, tear bar |
|---|
Fonts Included | 15 x barcode |
|---|
RAM
RAM Installed (Max) | 6 MB / 32 MB (max) |
|---|
Flash Memory
Media Handling
Media Type | Receipt paper, die cut labels |
|---|
Min Media Size (Custom) | 19 mm |
|---|
Max Media Size (Custom) | 63 mm |
|---|
Media Sizes | Roll (6.3 cm) |
|---|
Max Printing Width | 56 mm |
|---|
Max Printing Length | 1 m |
|---|
Media Thickness Range | 0.058 mm – 0.279 mm |
|---|
Roll Maximum Outer Diameter | 127 mm |
|---|
Roll Core Diameter | 25.4 mm |
|---|
Expansion / Connectivity
Connections | 1 x RS-232 – 9 pin D-Sub (DB-9)
1 x USB 2.0 – 4 pin mini-USB Type B |
|---|
Miscellaneous
Cables Included | 1 x USB cable |
|---|
Power
Power Device | Power adapter |
|---|
Frequency Required | 50/60 Hz |
|---|
Software / System Requirements
Software Included | Brother P-touch Editor 5 |
|---|
OS Required | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Vista / XP / 7 / 8 |
|---|
Environmental Parameters
Min Operating Temperature | 5 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 20 – 80% (non-condensing) |
|---|
Dimensions & Weight
Width | 11.1 cm |
|---|
Depth | 21.5 cm |
|---|
Height | 17.2 cm |
|---|
Weight | 1.34 kg |
|---|
