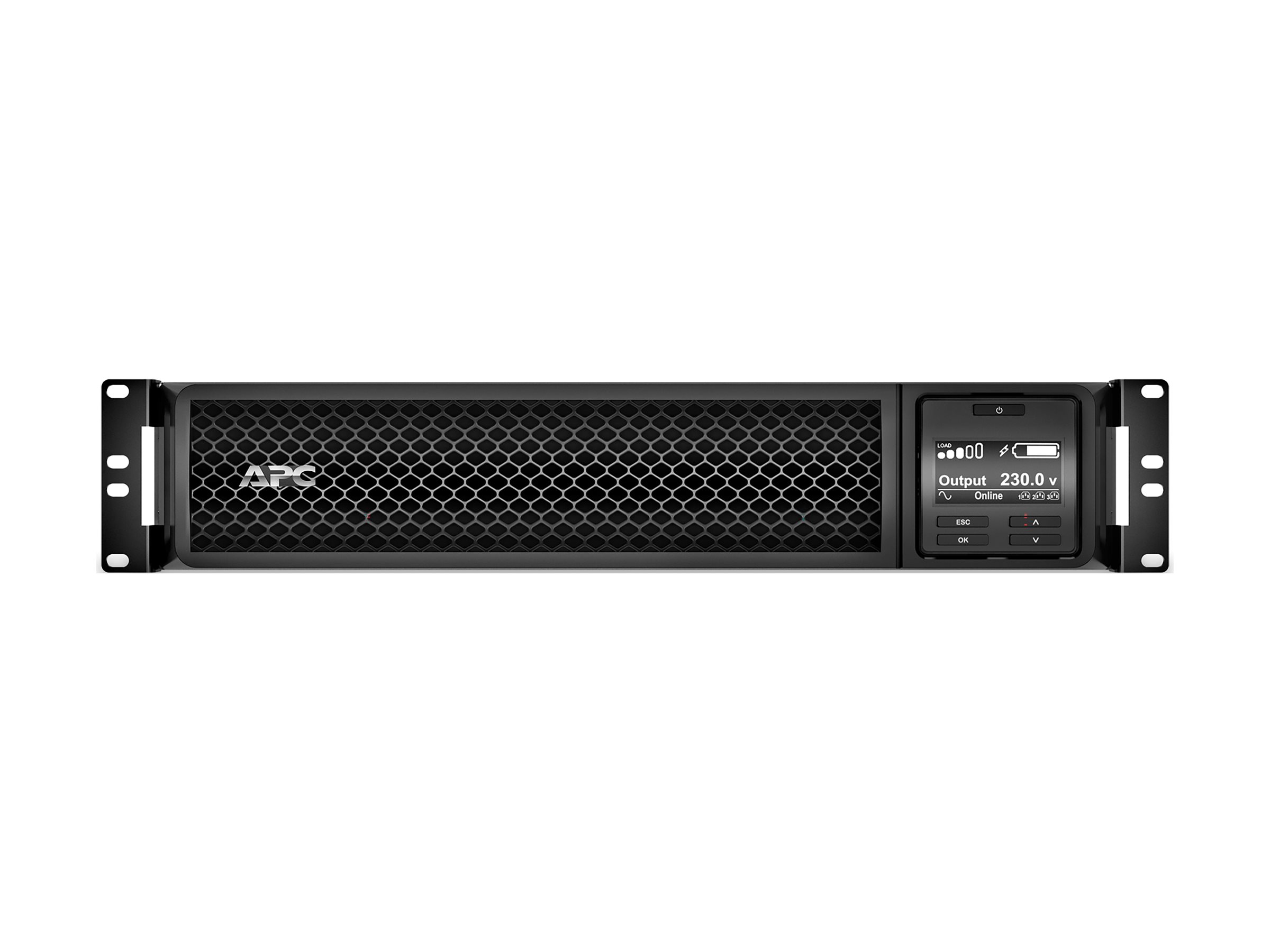

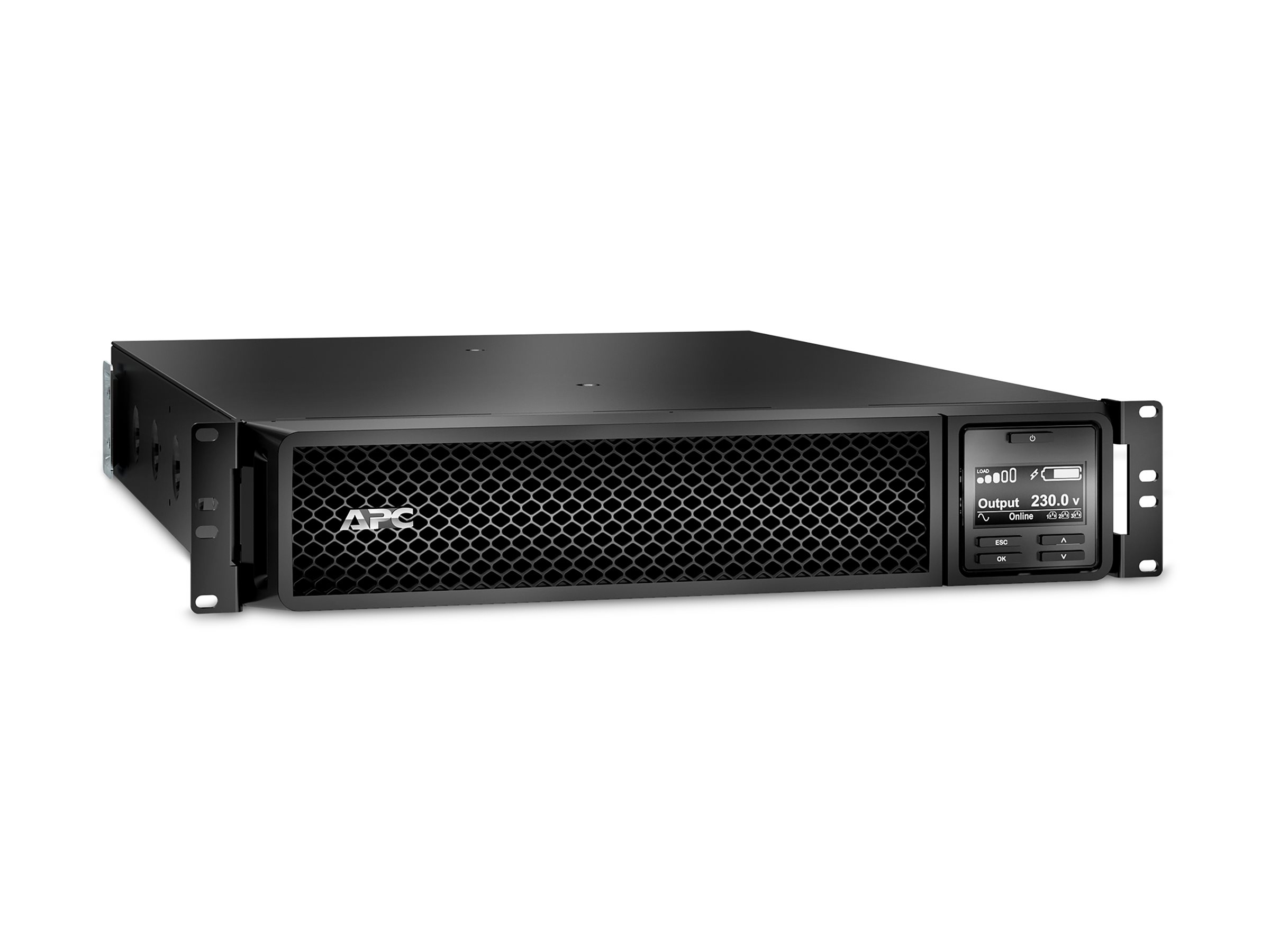

APC Smart-UPS SRT 3000VA RM, UPS (rack-mountable / external), AC 220/230/240 V, 2700 Watt, 3000 VA, Lead Acid, RS-232, USB, output connectors: 10, 2U, black, for P/N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
$6,726.57 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13, 2x IEC 320 C19 outlets, and 2x IEC jumpers. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
- 3kVA/2.7kW double-conversion on-line pure sine wave 2U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit included)
- Delivers clean power with zero transfer time for critical or sensitive devices
- Add up to 10 external battery packs (SRT96RMBP) for extended runtime
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Text and mimic diagrams that display modes of operation, system parameters and alarms.
Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS. - Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
Full color text and mimic diagrams that easily display modes of operation, systems parameters and alarms. - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Provides actual kilowatt hours of usage for energy conscious users. - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Protects the initial investment in the UPS when migrating from tower to rack-mount environment. - Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
What’s in the Box
- CD with software
- documentation CD
- installation guide
- rack mounting brackets
- rack mounting support rails
- USB cable
- warranty card
Main Specifications
Product Description | APC Smart-UPS SRT 3000VA RM – UPS – 2700 watt – 3000 VA – Lead Acid |
Device Type | UPS – rack-mountable / external |
Rack Size | 2U |
Weight | 31.3 kg |
Input Voltage | AC 220/230/240 V |
Output Voltage | AC 220/230/240 V |
Power Capacity | 2700 watt / 3000 VA |
Input Connectors | 1 x power IEC 60320 C20 |
Output connectors | 8 x power IEC 60320 C13 2 x power IEC 60320 C19 |
Battery | Lead Acid Lead Acid |
Run Time (Up To) | 4 min at full load |
Networking | RS-232, USB |
Included Accessories | Vertical stand |
Colour | Black |
Dimensions (WxDxH) | 43.2 cm x 63.5 cm x 8.5 cm |
Environmental Standards | ENERGY STAR |
Designed For | P/N: AR2487G, AR3100W, AR3105SP, AR3105W, AR3140G, AR3140W, AR3150W, AR3155SP, AR3155W, AR3305W, AR3340G, AR3355SP, AR3355W, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, NBWL0356A, SRT96RMBP |
Documents
Extended Specifications
General
Device Type | UPS – rack-mountable / external |
|---|---|
Height (Rack Units) | 2U |
Colour | Black |
Power Device
UPS Technology | On-line |
|---|---|
Input Voltage | AC 220/230/240 V |
Input Voltage Range | AC 160 – 275 V |
Input Voltage Range (Adjustable) | AC 100 – 275 V |
Frequency Provided | 50/60 Hz |
Frequency Required | 40 – 70 Hz |
Input Connectors | 1 x power IEC 60320 C20 |
Power Output Connectors Details | 8 x power IEC 60320 C13 2 x power IEC 60320 C19 |
Output Voltage | AC 220/230/240 V 50/60 Hz |
Power Capacity | 2700 watt / 3000 VA |
Output Waveform | Sinewave |
Surge Suppression | Yes |
Surge Energy Rating | 340 joules |
Efficiency | 92% |
Battery
Technology | Lead Acid Lead Acid |
|---|---|
Run Time (Up To) | 4 min at full load 11.8 min at half load |
Recharge Time | 3 hours |
Features | Maintenance free, sealed, leak-proof |
Networking
Remote Management Interface | RS-232, USB |
|---|
Expansion / Connectivity
Interfaces | 1 x management (RS-232) – 9 pin D-Sub (DB-9) 1 x EPO (emergency power off) 1 x management (USB) – 4 pin USB Type A |
|---|---|
Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
Miscellaneous
Included Accessories | Vertical stand |
|---|---|
Cables Included | 3 x power cable – external USB cable – external Network cable – external Power extension cable – external EPO cable |
Rack Mounting Kit | Included |
Features | Audible alarm, LCD display, internal bypass, Eco-Mode |
Compliant Standards | VDE, IEC 62040-2, RoHS, EN 62040-2, IP20, EAC, RCM, IEC 62040-1, EN 62040-1 |
Software / System Requirements
Software Included | APC PowerChute Business Edition |
|---|
Sustainability Information
ENERGY STAR | Yes |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 0 – 95% (non-condensing) |
Sound Emission | 55 dBA |
Dimensions & Weight
Width | 43.2 cm |
|---|---|
Depth | 63.5 cm |
Height | 8.5 cm |
Weight | 31.3 kg |
Dimensions & Weight (Shipping)
Shipping Width | 59.9 cm |
|---|---|
Shipping Depth | 87.1 cm |
Shipping Height | 24.6 cm |
Shipping Weight | 39.92 kg |
Compatibility Information
Designed For | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A, SRT96RMBP |
|---|
