Description

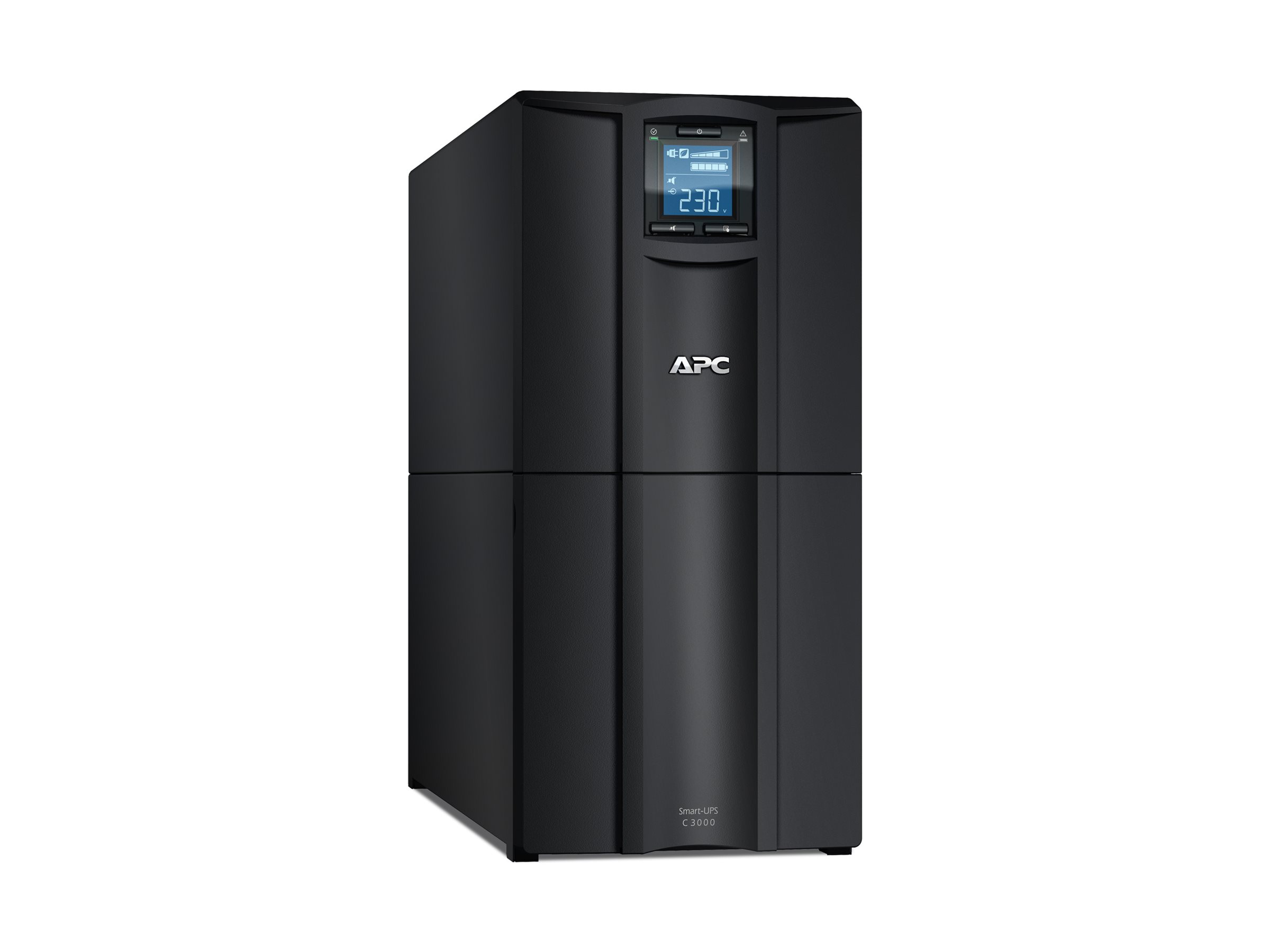

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 3000VA/2100W line-interactive UPS provides pure sinewave power to support critical electronics during power disruptions. The tower mount SMC operates in green mode for high operating efficiency. It comes with IEC 320 C20 input, 8x IEC 320 C13 and 1x IEC 320 C19 outlets. This UPS has built-in lead-acid battery and is covered by a 2-year UPS warranty. Its dimensions are 544mm (depth) x 435mm (height) x 197mm (width) and weighs 43.0kg. Ideal for entry-level servers, networks, business VoIP, retail point-of-sale, edge networks and business desktops. It conforms to CE, C-Tick, GOST, EAC, SABS and VDE.
- High online efficiency
- Green mode
- Pure sine wave output on battery
- LCD status display
- Cold-start capable
- Intelligent battery management
- Power conditioning
- Network manageable
- Audible alarms
- LED status indicators
- High online efficiency
Reduces utility costs, generates less heat. - Green mode
The operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. - Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. - LCD status display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs. - Cold-start capable
Provides temporary battery power when the utility power is out. - Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging. - Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances. - Network manageable
Provides remote power management of the UPS over the network. - Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition. - LED status indicators
Quickly understand unit and power status with visual indicators.
What’s in the Box
- CD with software
- documentation CD
- USB cable
Main Specifications
Product Description | APC Smart-UPS C 3000VA LCD – UPS – 2100 watt – 3000 VA |
Device Type | UPS – external |
Weight | 43 kg |
Input Voltage | AC 230 V |
Output Voltage | AC 230 V ± 5% |
Power Capacity | 2100 watt / 3000 VA |
Input Connectors | 1 x power IEC 60320 C20 |
Output connectors | 6 x power IEC 60320 C13
1 x power IEC 60320 C19 |
Battery | Lead Acid |
Battery Form Factor | Internal |
Batteries Qty | 1 |
Run Time (Up To) | 6 min at full load |
Networking | USB |
Colour | Black |
Dimensions (WxDxH) | 19.7 cm x 54.4 cm x 43.5 cm |
Documents
Extended Specifications
General
Device Type | UPS – external |
|---|
Battery Enclosure Type | Internal |
|---|
Colour | Black |
|---|
Power Device
UPS Technology | Line interactive |
|---|
Input Voltage | AC 230 V |
|---|
Input Voltage Range | AC 180 – 287 V |
|---|
Input Voltage Range (Adjustable) | AC 170 – 300 V |
|---|
Frequency Provided | 50 Hz |
|---|
Frequency Required | 47 – 63 Hz |
|---|
Input Connectors | 1 x power IEC 60320 C20 |
|---|
Power Output Connectors Details | 6 x power IEC 60320 C13
1 x power IEC 60320 C19 |
|---|
Output Voltage | AC 230 V ± 5% – 50 Hz |
|---|
Power Capacity | 2100 watt / 3000 VA |
|---|
Output Waveform | Sinewave |
|---|
Surge Energy Rating | 300 joules |
|---|
Battery
Quantity | 1 |
|---|
Technology | Lead Acid |
|---|
Run Time (Up To) | 17 min at half load
6 min at full load |
|---|
Recharge Time | 3 hours |
|---|
Features | Maintenance free, sealed |
|---|
Networking
Remote Management Interface | USB |
|---|
Expansion / Connectivity
Interfaces | 1 x management (USB) – 4 pin USB Type B |
|---|
Miscellaneous
Cables Included | USB cable – external |
|---|
Features | Audible alarm, LCD display |
|---|
Compliant Standards | C-Tick, GOST, SABS, UL 1449, VDE, RoHS, REACH |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 0 – 95% |
|---|
Sound Emission | 45 dBA |
|---|
Dimensions & Weight
Width | 19.7 cm |
|---|
Depth | 54.4 cm |
|---|
Height | 43.5 cm |
|---|
Weight | 43 kg |
|---|
Dimensions & Weight (Shipping)
Shipping Width | 38.1 cm |
|---|
Shipping Depth | 69.9 cm |
|---|
Shipping Height | 76.2 cm |
|---|
Shipping Weight | 51 kg |
|---|
