Description
The Defender range uses Automatic Voltage Regulation (AVR) to minimize the effects of fluctuations in input voltage protecting your valuable equipment from power line disturbances.
The stylish LCD display, user replaceable batteries and six Australia/NZ sockets makes the Defender the complete package at this level.
The Defender USB communication port is compatible with Synology NAS products.
- Surge protection, best in its class
- Australian/NZ outlets for UPS and surge protection
- Australian/NZ outlets for surge protection only
- Buck and boost AVR for voltage stabilization
- User replaceable batteries
- Silent operation
- Auto restart when AC returns
- Off-mode charging
- Cold start function
- USB communication with sophisticated NetGuard software
Main Specifications

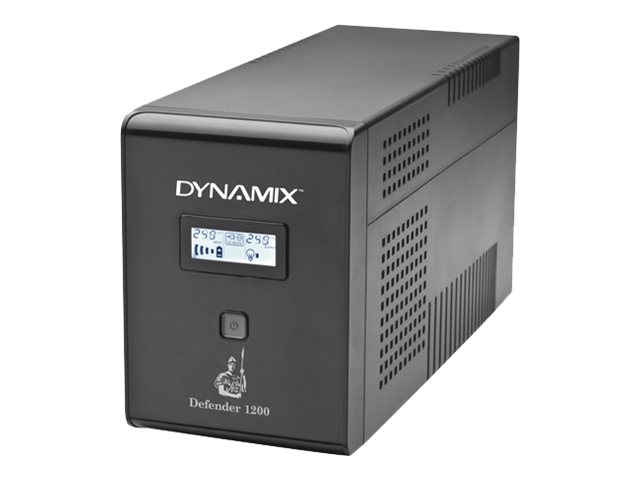

Product Description | Dynamix Defender UPSD1200 – UPS – 720 Watt – 1200 VA |
Device Type | UPS – external |
Weight | 11.1 kg |
Input Voltage | AC 230 V |
Output Voltage | AC 230 V ± 10% |
Power Capacity | 720 Watt / 1200 VA |
Input Connectors | 1 |
Output connectors | 3 x power (UPS and surge)
3 x power (surge) |
Battery | Lead Acid – 7 Ah |
Battery Form Factor | Internal |
Batteries Qty | 2 |
Run Time (Up To) | 15 min at half load |
Networking | USB |
Dimensions (WxDxH) | 14.6 cm x 39.7 cm x 20.5 cm |
Extended Specifications
General
Device Type | UPS – external |
|---|
Battery Enclosure Type | Internal |
|---|
Power Device
UPS Technology | Line interactive |
|---|
Input Voltage | AC 230 V |
|---|
Input Voltage Range | AC 177 – 290 V |
|---|
Frequency Provided | 50/60 Hz |
|---|
Frequency Required | 50/60 Hz |
|---|
Input Connectors | 1 |
|---|
Power Output Connectors Details | 3 x power (UPS and surge)
3 x power (surge) |
|---|
Output Voltage | AC 230 V ± 10% – 50/60 Hz |
|---|
Power Capacity | 720 Watt / 1200 VA |
|---|
Output Waveform | Stepped approximation to a sinewave |
|---|
Surge Suppression | Yes |
|---|
Surge Energy Rating | 936 Joules |
|---|
Max Spike Current | 19500 A |
|---|
Circuit Protection | Circuit breaker |
|---|
Battery
Quantity | 2 |
|---|
Technology | Lead Acid |
|---|
Voltage Provided | 12 V |
|---|
Capacity | 7 Ah |
|---|
Run Time (Up To) | 15 min at half load |
|---|
Transfer Time | 6 ms |
|---|
Networking
Remote Management Interface | USB |
|---|
Expansion / Connectivity
Interfaces | 1 x management (USB) – 4 pin USB Type B |
|---|
Miscellaneous
Features | LCD display, deep discharge protection, short-circuit protection, overload protection, overcharge protection, audible alarm, Automatic Voltage Regulation (AVR), thermal protection, cold-start function |
|---|
Compliant Standards | EN 62040-1-1, IEC 60950-1, EN 62040-2:2006, Directive 2011/65/EU |
|---|
Software / System Requirements
Software Included | Drivers & Utilities |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 0 – 90% (non-condensing) |
|---|
Sound Emission | 5 dB |
|---|
Dimensions & Weight
Width | 14.6 cm |
|---|
Depth | 39.7 cm |
|---|
Height | 20.5 cm |
|---|
Weight | 11.1 kg |
|---|
