Eaton 5SC 1500i, UPS, AC 230 V, 1050 Watt, 1500 VA, RS-232, USB, output connectors: 8, black
$1,281.22 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland
- Allow 1–2 days for delivery to the North Island
- Allow 2–3 days for delivery to the South Island
- Add 1–2 days if you are rural
- Collection can be arranged
We are currently experiencing 1-2 day shipping delays from this supplier warehouse
Description
Eaton 5SC 1500VA UPS provides line-interactive, affordable and reliable protection for small business servers. It includes a LCD interface for real time status and measurement.
This unit also possesses the Advanced Battery Management (ABM) technology that increases battery lifetime. It is line interactive with Automatic Voltage Regulation (AVR). With its 8 IEC outputs and compact design the 5SC fits anywhere easily.
- LCD interface clearly shows key information
- Sinewave output for compatibility with today’s small business servers
- Compact design for easy integration even with space constraints and up to eight outlets for better flexibility
- Reliable, long-lasting UPS with patented ABM technology that increases battery service life by up to 50%
- Serial and USB ports are HID compliant for automatic integration into major OS
- Eaton Intelligent Power software delivered as standard is compatible with all major operating systems
- Efficient management
Equipped with both USB and RS-232 interfaces, the Eaton 5SC UPS allows for seamless management and monitoring, ensuring your power backup system is always optimized for performance. - Reliable power protection
Featuring line interactive UPS technology, the Eaton 5SC provides reliable power protection and battery backup, safeguarding your equipment from power disturbances.

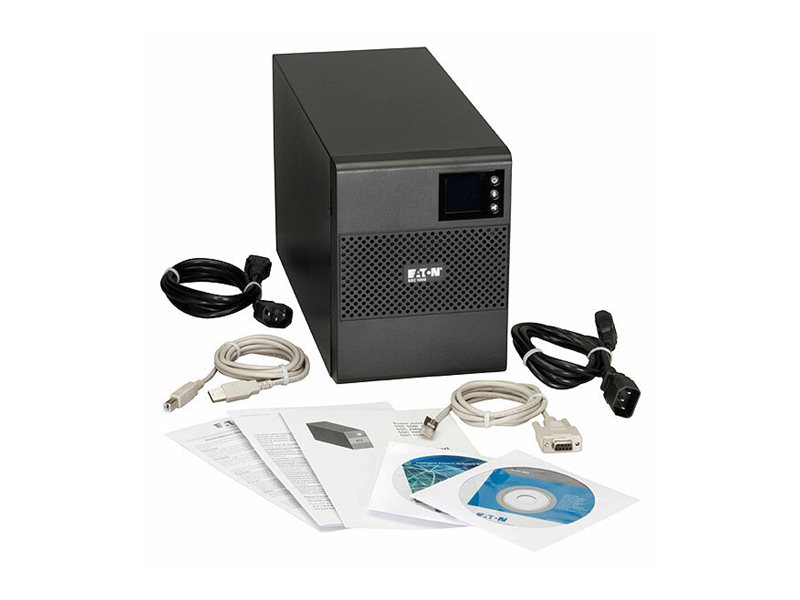

What’s in the Box
- USB cable
- Serial cable
- (2) IEC-IEC cables
- Quickstart guide
- Safety instructions
Main Specifications
Product Description | Eaton 5SC 1500i – UPS – 1050 watt – 1500 VA |
Device Type | UPS – external |
Weight | 15.2 kg |
Input Voltage | AC 230 V |
Output Voltage | AC 230 V + 6% / – 10% |
Power Capacity | 1050 watt / 1500 VA |
Input Connectors | 1 x power IEC 60320 C14 |
Output connectors | 8 x power IEC 60320 C13 |
Run Time (Up To) | 5 min at full load |
Networking | RS-232, USB |
Colour | Black |
Dimensions (WxDxH) | 15 cm x 41 cm x 21 cm |
Documents
Extended Specifications
General
Device Type | UPS – external |
|---|---|
Colour | Black |
Power Device
UPS Technology | Line interactive |
|---|---|
Input Voltage | AC 230 V |
Input Voltage Range | AC 184 – 276 V |
Frequency Provided | 50/60 Hz |
Frequency Required | 50/60 Hz |
Input Connectors | 1 x power IEC 60320 C14 |
Power Output Connectors Details | 8 x power IEC 60320 C13 |
Output Voltage | AC 230 V + 6% / – 10% – 50/60 Hz |
Power Capacity | 1050 watt / 1500 VA |
Output Waveform | Sinewave |
Battery
Run Time (Up To) | 5 min at full load 13 min at half load 9 min at 70% load |
|---|
Networking
Remote Management Interface | RS-232, USB |
|---|
Expansion / Connectivity
Interfaces | 1 x management (USB) – 4 pin USB Type B 1 x management (RS-232) – 9 pin D-Sub (DB-9) |
|---|
Miscellaneous
Features | Advance Battery Management (ABM), LCD display, deep discharge protection |
|---|---|
Compliant Standards | UL 1778, CB, IEC 62040-1-1, IEC 62040-2, EN 62040-1-1, EN 62040-2 |
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 35 °C |
Sound Emission | 40 dB |
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 41 cm |
Height | 21 cm |
Weight | 15.2 kg |
