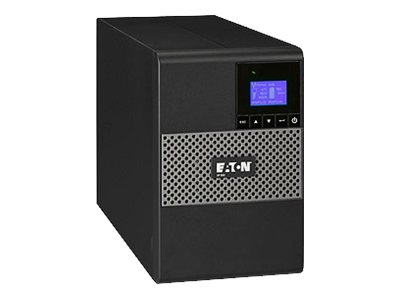

Eaton 5P 1550 VA AU Tower, UPS, 1100 Watt, 1550 VA, RS-232, USB, output connectors: 5
$1,544.40 inc GST
✕ Backorder - Email us for a lead time or ETA
✓ Free NZ Delivery
Available on back-order
Ships from: Auckland or Christchurch
- Allow 1–2 days for delivery
- Add 1–2 days if you are rural
- No collections
Description
Eaton 5P is an energy efficient line-interactive UPS with advanced LCD and energy metering features. The graphical LCD display provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are also available with easy-to-use navigation keys.
- Manageability
- Performance and efficiency
- Pure sinewave output
- Adjustable tolerance and sensitivity
- Stronger, longer battery life
- Flexibility
- Manageability
The graphical LCD display provides clear information on the UPS’s status and measurements on a single screen (in seven languages). Enhanced configuration capabilities are also available with easy-to-use navigation keys. Load segment control enables prioritized shutdowns of nonessential equipment during outages in order to maximize battery runtime for critical devices. Load segment control can also be used to remotely reboot locked-up network equipment or to manage scheduled shutdowns and sequential start-ups. - Performance and efficiency
Energy efficient UPS: with an optimized electrical design, the 5P provides up to 98% efficiency, reducing cooling and utility costs. - Pure sinewave output
When operating in battery mode, the 5P provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers. - Adjustable tolerance and sensitivity
Users can maximize useful battery life by widening the input voltage window or adjustable input waveform sensitivity (via the LCD or software) to adapt the UPS to a specific environment (like Genset). - Stronger, longer battery life
Eaton ABM battery management technology uses an innovative three-stage charging technique that extends batteries by up to 50%.
Main Specifications
Product Description | Eaton 5P 1550 VA AU Tower – UPS – 1100 Watt – 1550 VA |
Device Type | UPS – external |
Weight | 15.6 kg |
Output Voltage | 230 V + 6% / – 10% |
Power Capacity | 1100 Watt / 1550 VA |
Input Connectors | 1 x power Australian 3-pin |
Output connectors | 3 x power IEC 60320 C13 2 x power Australian 3-pin |
Run Time (Up To) | 4 min at full load |
Networking | RS-232, USB |
Dimensions (WxDxH) | 15 cm x 44.5 cm x 23 cm |
Extended Specifications
General
Device Type | UPS – external |
|---|
Power Device
UPS Technology | Line interactive |
|---|---|
Input Voltage Range | AC 160 – 294 V |
Input Voltage Range (Adjustable) | AC 150 – 294 V |
Frequency Provided | 50/60 Hz |
Frequency Required | 40 – 70 Hz |
Input Connectors | 1 x power Australian 3-pin |
Power Output Connectors Details | 3 x power IEC 60320 C13 2 x power Australian 3-pin |
Output Voltage | 230 V + 6% / – 10% – 50/60 Hz |
Power Capacity | 1100 Watt / 1550 VA |
Networking
Remote Management Interface | RS-232, USB |
|---|
Expansion / Connectivity
Interfaces | 1 x management (RS-232) 1 x management (USB) |
|---|---|
Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
Miscellaneous
Cables Included | USB cable – external Serial cable – external |
|---|---|
Features | Advance Battery Management (ABM), LCD display, cold-start function |
Compliant Standards | C-Tick, ISO 9001, ISO 14001, CB, IEC 62040-3, IEC 62040-2 |
Software / System Requirements
Software Included | Eaton Intelligent Power Software Suite |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|---|
Max Operating Temperature | 35 °C |
Sound Emission | 40 dBA |
Dimensions & Weight
Width | 15 cm |
|---|---|
Depth | 44.5 cm |
Height | 23 cm |
Weight | 15.6 kg |
