Description
These converters convert 10/100Mbps 10BASE-T/ 100BASE-TX Fast Ethernet twisted-pair signals to 100BASE-FX Fast Ethernet fiber signals.
The media converters come with their own solid metal case housing, LED status indicators and AC to DC power adapters. They can be used as stand-alone converters, or installed in a DMC-1000 chassis. In case you install them in the chassis, you will remove their metal cases and slide in their PC boards into the chassis slots. The chassis’s power supply will be used instead of the media converters’ own AC to DC power adapters. All media converters are hot-swappable when used with the chassis.
- One-channel media conversion between 10BASE-T/100BASE-TX and 100BASE-FX
- Fiber SC connector
- Auto negotiation of speeds and duplex modes on twisted-pair port
- Auto MDI/MDIX
- One slide switch for configuring fixed half/full duplex modes
- Store-and-forward mechanism
- Back-pressure and IEEE 802.3x flow control compliant
- Full wire-speed forwarding rate
- Front panel status LEDs
- Can be used as a stand-alone device or with chassis
- Hot-swappable when used with chassis
Main Specifications

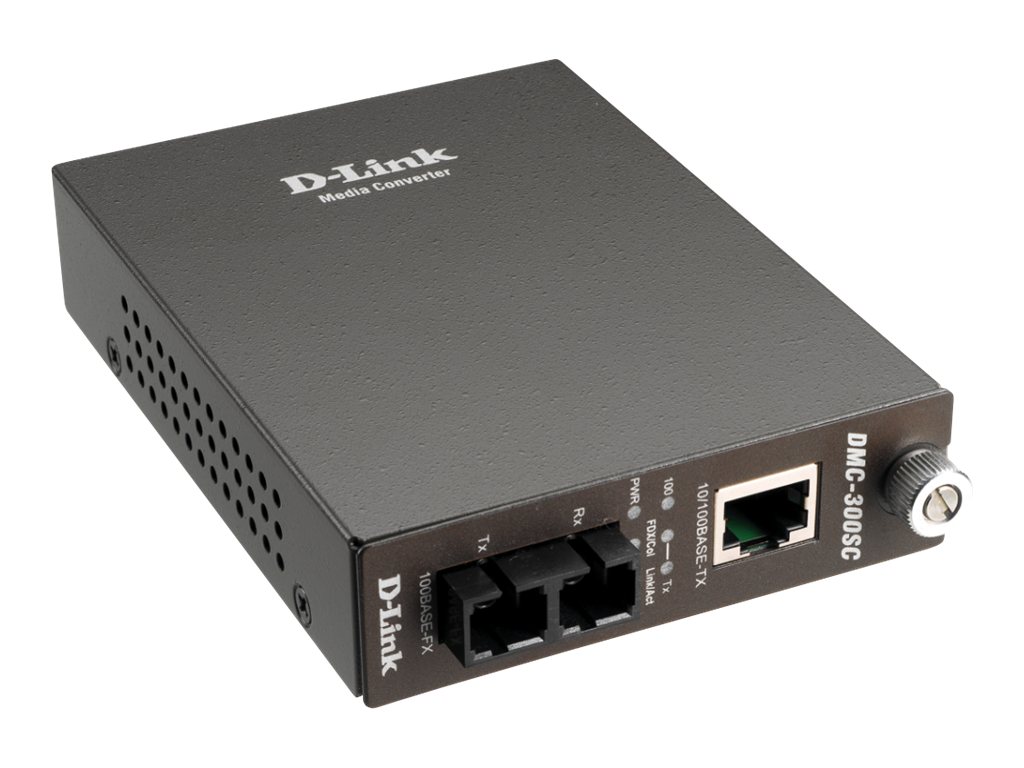

Product Description | D-Link DMC 300SC – fibre media converter – 10Mb LAN, 100Mb LAN |
Device Type | Fibre media converter – RJ-45 / SC multi-mode |
Form Factor | External |
Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
Data Transfer Rate | 100 Mbps |
Data Link Protocol | 10Mb LAN, 100Mb LAN |
Max Transfer Distance | 2 km |
Dimensions (WxDxH) | 12 cm x 8.8 cm x 2.5 cm |
Designed For | DMC 1000 |
Extended Specifications
General
Device Type | Fibre media converter |
|---|
Form Factor | External |
|---|
Built-in Devices | Led panel |
|---|
Networking
Connectivity Technology | Wired |
|---|
Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
|---|
Data Link Protocol | 10Mb LAN, 100Mb LAN |
|---|
Data Transfer Rate | 100 Mbps |
|---|
Max Transfer Distance | 2 km |
|---|
Status Indicators | Port status, port duplex mode, power, 100M device connected, link/activity |
|---|
Features | Flow control, full duplex capability, MDI/MDI-X switch, auto-negotiation |
|---|
Compliant Standards | IEEE 802.3x |
|---|
Expansion / Connectivity
Interfaces | 1 x Ethernet 10Base-T/100Base-TX – RJ-45 female – 1
1 x Ethernet 100Base-FX – SC multi-mode female x 2 – 2 |
|---|
Miscellaneous
Compliant Standards | FCC Class B certified, C-Tick |
|---|
Dimensions & Weight
Width | 12 cm |
|---|
Depth | 8.8 cm |
|---|
Height | 2.5 cm |
|---|
Environmental Parameters
Min Operating Temperature | 0 °C |
|---|
Max Operating Temperature | 40 °C |
|---|
Humidity Range Operating | 10 – 90% |
|---|
Compatibility Information
Designed For | D-Link DMC 1000 |
|---|
