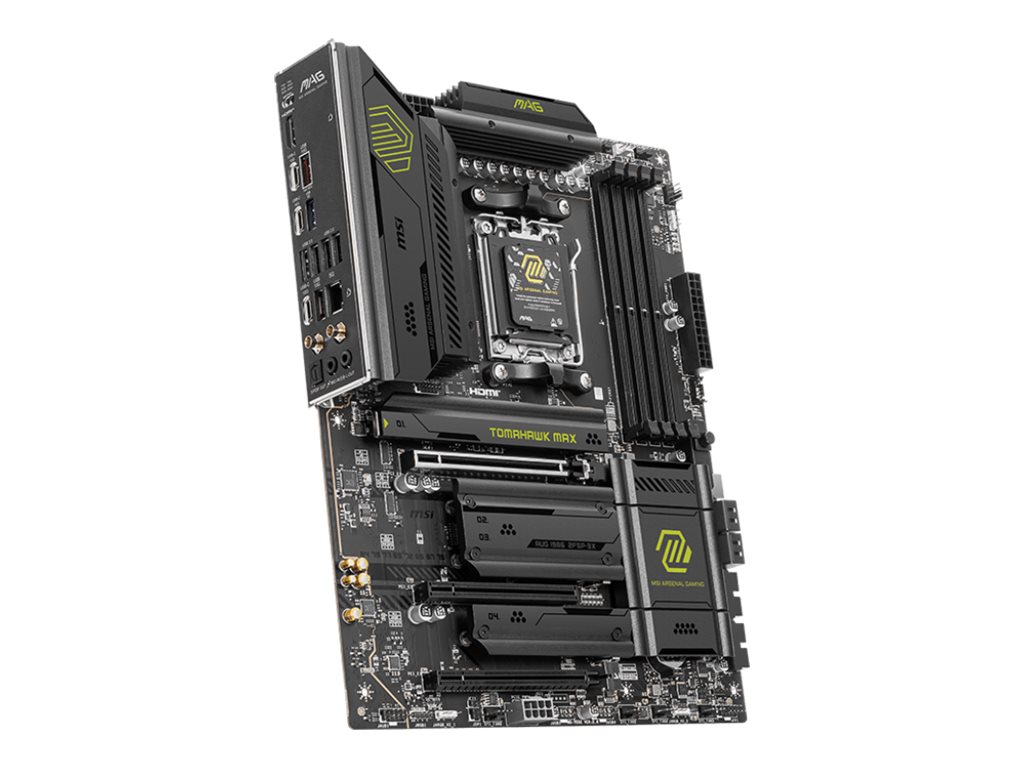

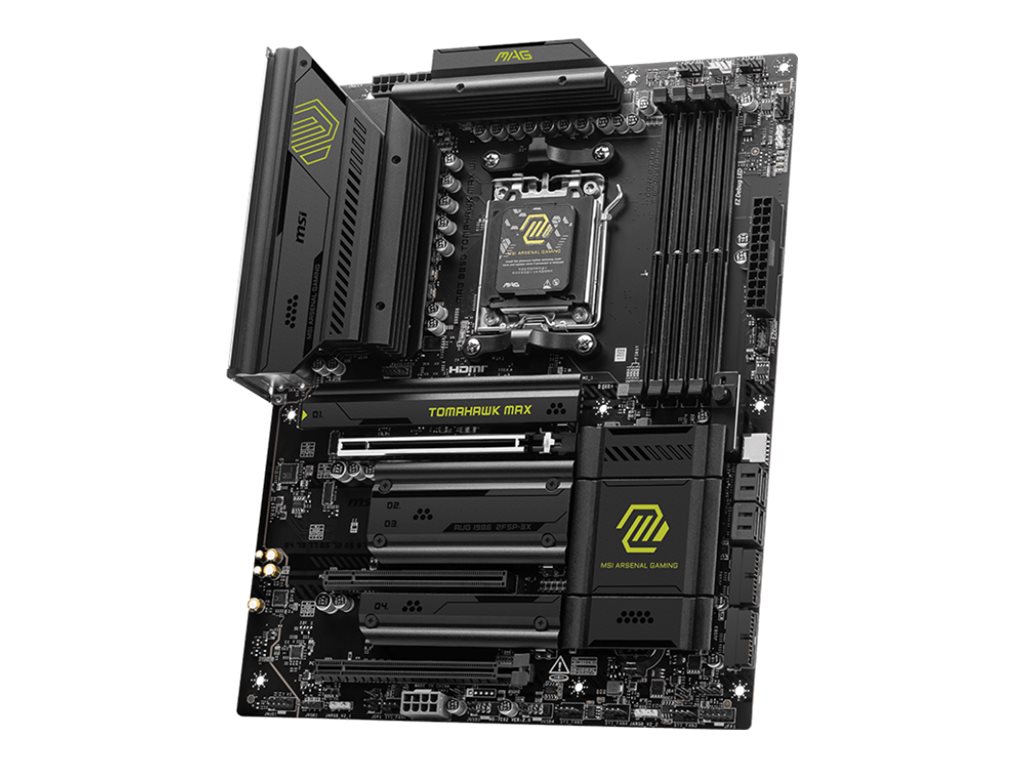

MSI MAG B850 TOMAHAWK MAX WIFI, Motherboard, ATX, Socket AM5, AMD B850 Chipset, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth, onboard graphics (CPU required), HD Audio (8-channel)
$479.30 inc GST
50 in stock
Ships from Auckland
- Allow 1-2 days for delivery to the North Island
- Allow 2-3 days for delivery to the South Island
- add 1-2 days if you are rural
- Collection can be arranged
We are currently experiencing shipping delays from this supplier warehouse
Description
The MSI MAG B850 TOMAHAWK MAX WIFI motherboard is designed for high-performance computing and gaming. Equipped with advanced features including the AMD B850 chipset, it supports Ryzen 7000, 8000, and 9000 Series processors, enabling exceptional processing capabilities. Its 4 DIMM slots support DDR5 SDRAM with speeds up to 8400 MHz when overclocked, ensuring smooth multitasking and performance during demanding applications.
Connectivity is a key highlight, featuring multiple USB ports including USB 3.2 Gen 2 and USB-C 3.2 Gen 2×2, enabling rapid data transfer. Additionally, the integrated 5 Gigabit Ethernet and Wi-Fi 7 capability provide seamless Internet connectivity for online gaming and heavy downloading. The board is enhanced with MSI’s Audio Boost technology, an extended heatsink design, and pre-mounted I/O shield for convenience and durability during installation.
- Supports AMD Ryzen 7000/8000/9000 Series processors
- Up to 8400 MHz RAM speed with DDR5 compatibility
- Multiple USB ports for extensive connectivity options
- Integrated 5 Gigabit Ethernet and Wi-Fi 7 support
- Features MSI Audio Boost and enhanced cooling design
- Powerful processing support
The motherboard is compatible with AMD Ryzen processors from the 7000 to 9000 Series, providing flexibility for performance enhancements. - High-speed memory capability
Equipped with 4 DIMM slots, it supports DDR5 RAM with speeds reaching up to 8400 MHz (overclocking), facilitating improved system responsiveness. - Extensive connectivity options
Includes various USB ports, such as USB 3.2 Gen 2, USB-C 3.2 Gen 2×2, and multiple audio outputs to ensure versatile options for peripherals and devices. - Robust networking features
Offers 5 Gigabit Ethernet and Wi-Fi 7 to ensure a stable and fast Internet connection for both gaming and streaming needs. - Exceptional audio experience
Designed with MSI Audio Boost technology, it delivers high-definition audio for an immersive sound experience in games and media.

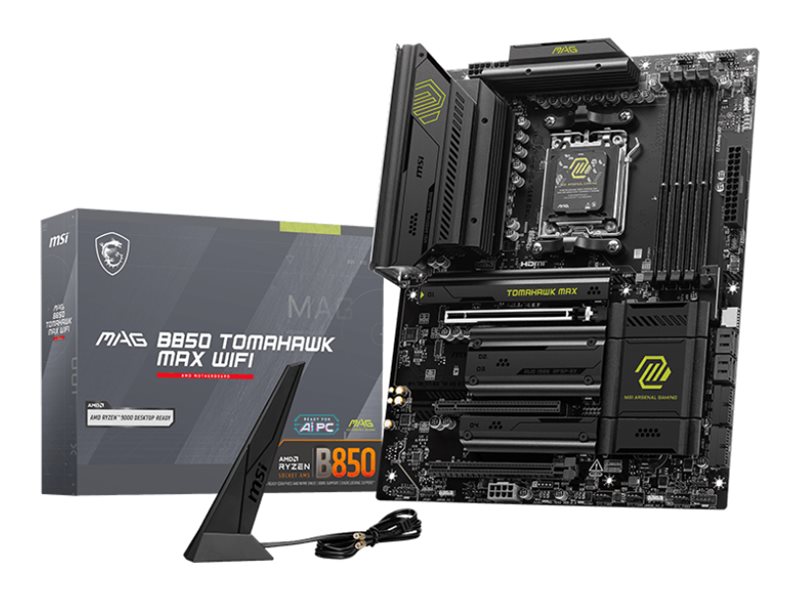

What’s in the Box
- MSI MAG B850 TOMAHAWK MAX WIFI
- Serial ATA cable
- EZ front panel cable, cable sticker, 1 to 3 EZ Conn-Cable, EZ Wi-Fi antenna, EZ M.2 clip II remover, 3 x EZ M.2 clip II
- Software
Main Specifications
Product Description | MSI MAG B850 TOMAHAWK MAX WIFI – motherboard – ATX – Socket AM5 – AMD B850 |
Product Type | Motherboard – ATX |
Chipset Type | AMD B850 / Nuvoton NCT6687-R |
Processor Socket | 1 x Socket AM5 |
Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
Max RAM Size | 256 GB |
RAM Supported | 4 DIMM slots – DDR5, non-ECC, unbuffered |
Storage Ports | 4 x SATA-600 (RAID), 4 x M.2 |
USB / FireWire Ports | 3 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2×2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
Audio | HD Audio (8-channel) |
LAN | 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
Extended Specifications
General
Product Type | Motherboard – ATX |
|---|---|
Chipset Type | AMD B850 / Nuvoton NCT6687-R |
Processor Socket | Socket AM5 |
Max Processors Qty | 1 |
Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
Supported RAM
Max Size | 256 GB |
|---|---|
Technology | DDR5 |
Bus Clock | 8400 MHz (O.C.), 6400 MHz (O.C.), 5600 MHz (O.C.), 4800 MHz |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, AMD EXPO technology |
Audio
Type | HD Audio (8-channel) |
|---|---|
Audio Codec | Realtek ALC4080 |
Compliant Standards | High Definition Audio |
LAN
Network Interfaces | 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
|---|
Expansion / Connectivity
Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 1 x M.2 socket (2280/22110) 3 x M.2 socket (2260/2280) |
|---|---|
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 2 x M.2 PCIe 5.0 -connectors: 2 x M.2 |

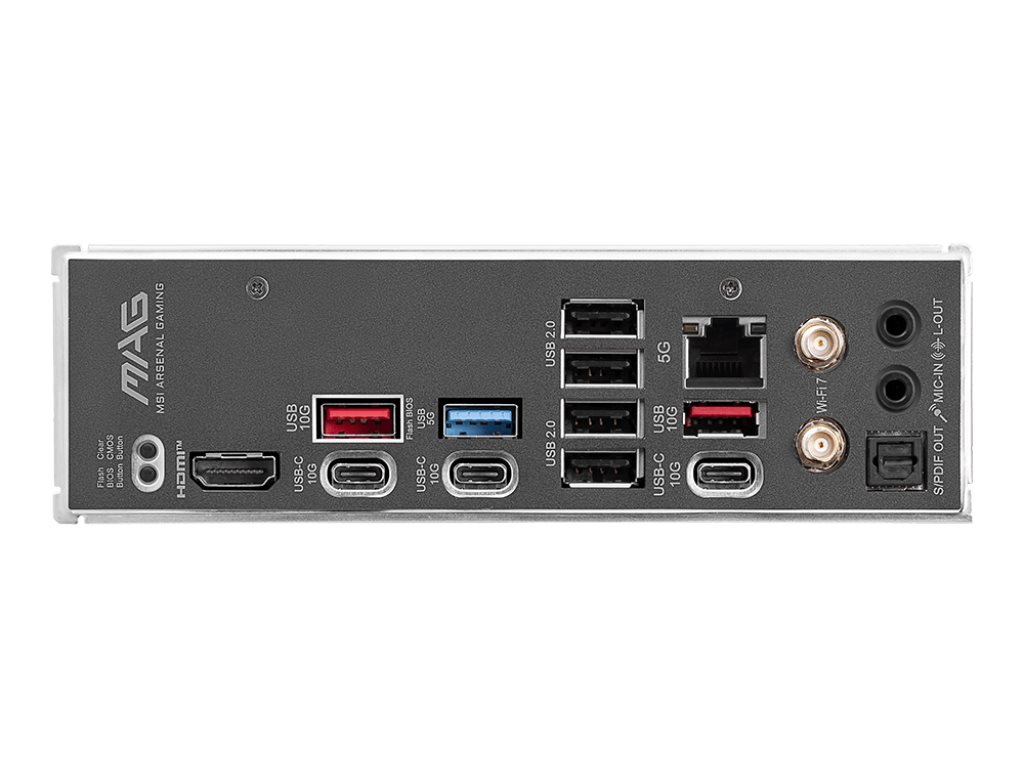

Interfaces | 1 x HDMI 3 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 2 1 x USB 3.2 Gen 1 4 x USB 2.0 1 x LAN (5Gigabit Ethernet) 2 x aerial 1 x audio line-out – mini-jack 1 x microphone – mini-jack 1 x SPDIF out |
Internal Interfaces | 1 x USB-C 3.2 Gen 2×2 – header 4 x USB 3.2 Gen 1 – header 4 x USB-C 3.2 Gen 2 – header 1 x audio – header 1 x SPI – header |
Power Connectors | 24-pin main power connector, 2 x 8-pin PCI Express power connector, 8-pin PCI Express power connector |
Features
Hardware Features | 14+2+1 Phase Power Design, pre-mounted I/O shield, EZ M.2 Sheild FROZR II, EZ PCIe Release, MSI Steel Armor II, EZ Conn-Design, Extended Heatsink Design, 2oz Copper PCB, 6 Layer PCB, MSI Memory Boost, MSI AI Engine, DIY Friendly Design, EZ Debug LED, overvoltage protection, load-line calibration (LLC), Surface Mount Technology (SMT), transient voltage suppressors, MSI Audio Boost, MSI Mystic Light |
|---|
Miscellaneous
Included Accessories | 1 to 3 EZ Conn-Cable, EZ front panel cable, EZ Wi-Fi antenna, cable sticker, 3 x EZ M.2 clip II, EZ M.2 clip II remover |
|---|---|
Cables Included | 1 x Serial ATA cable |
Software Included | AIDA64 Extreme – MSI Edition, Adobe Acrobat Reader, MSI Center, Dropbox, MSI App Player, Norton 360 |
Width | 30.48 cm |
Depth | 24.348 cm |
