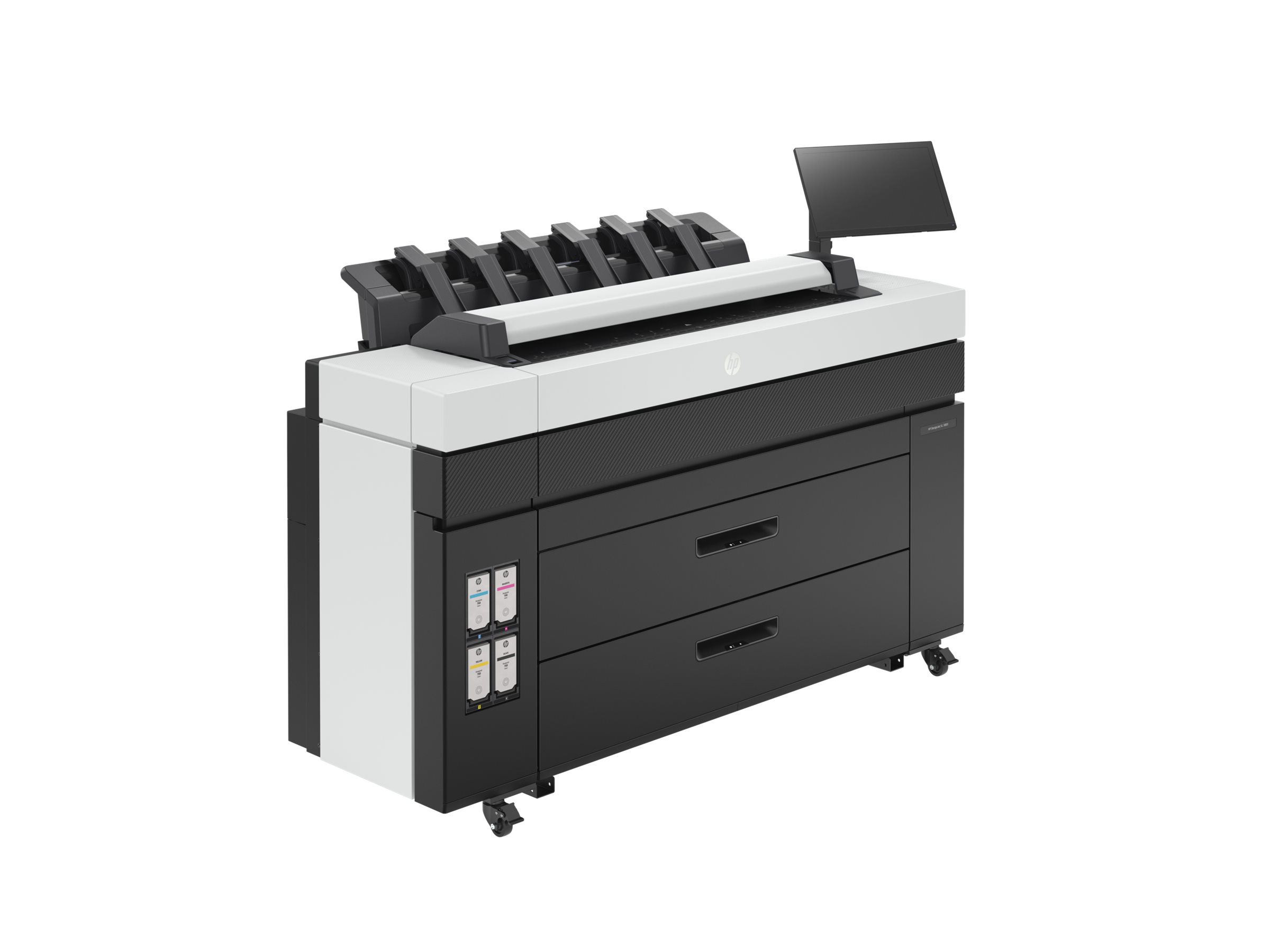

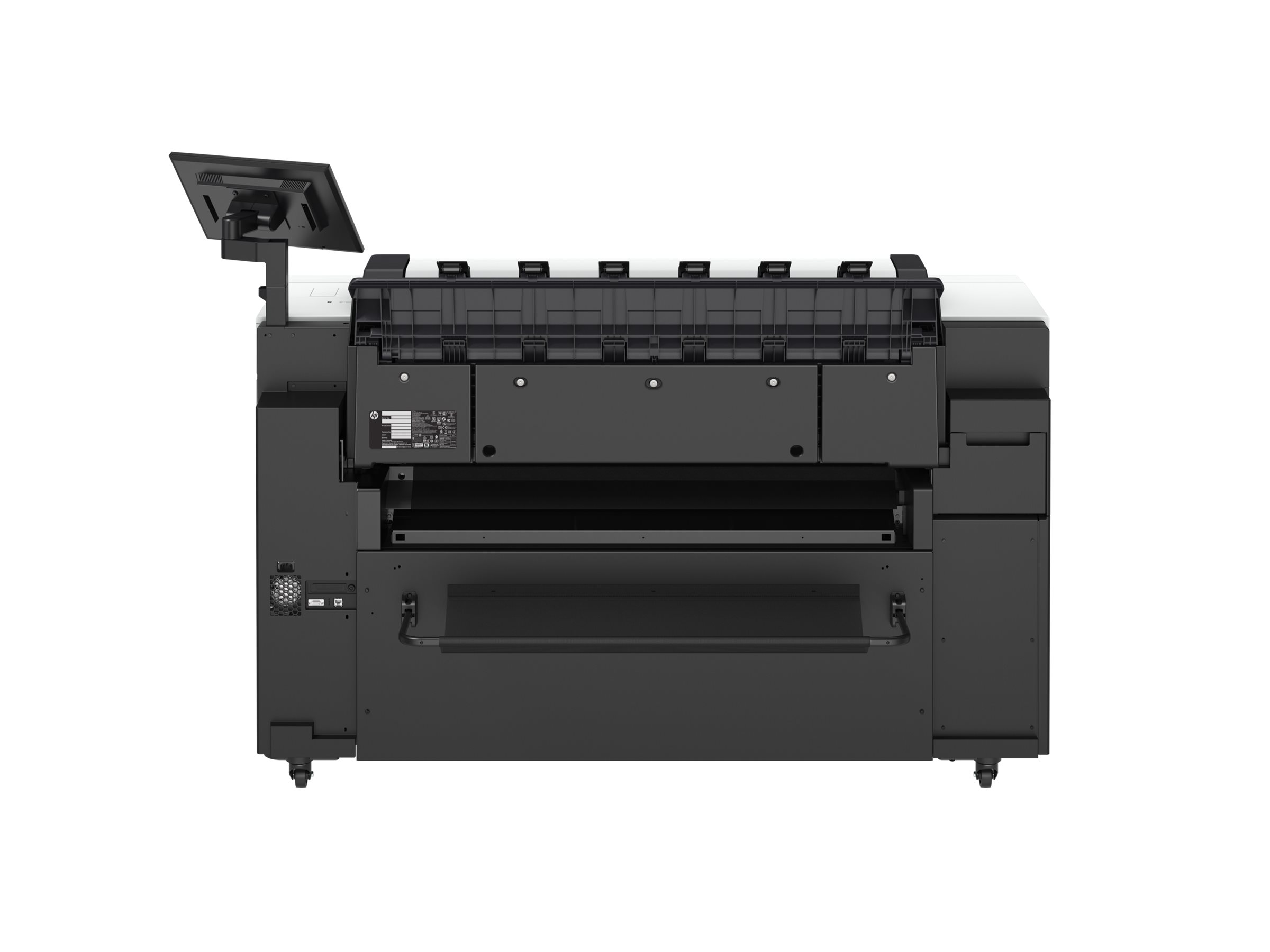

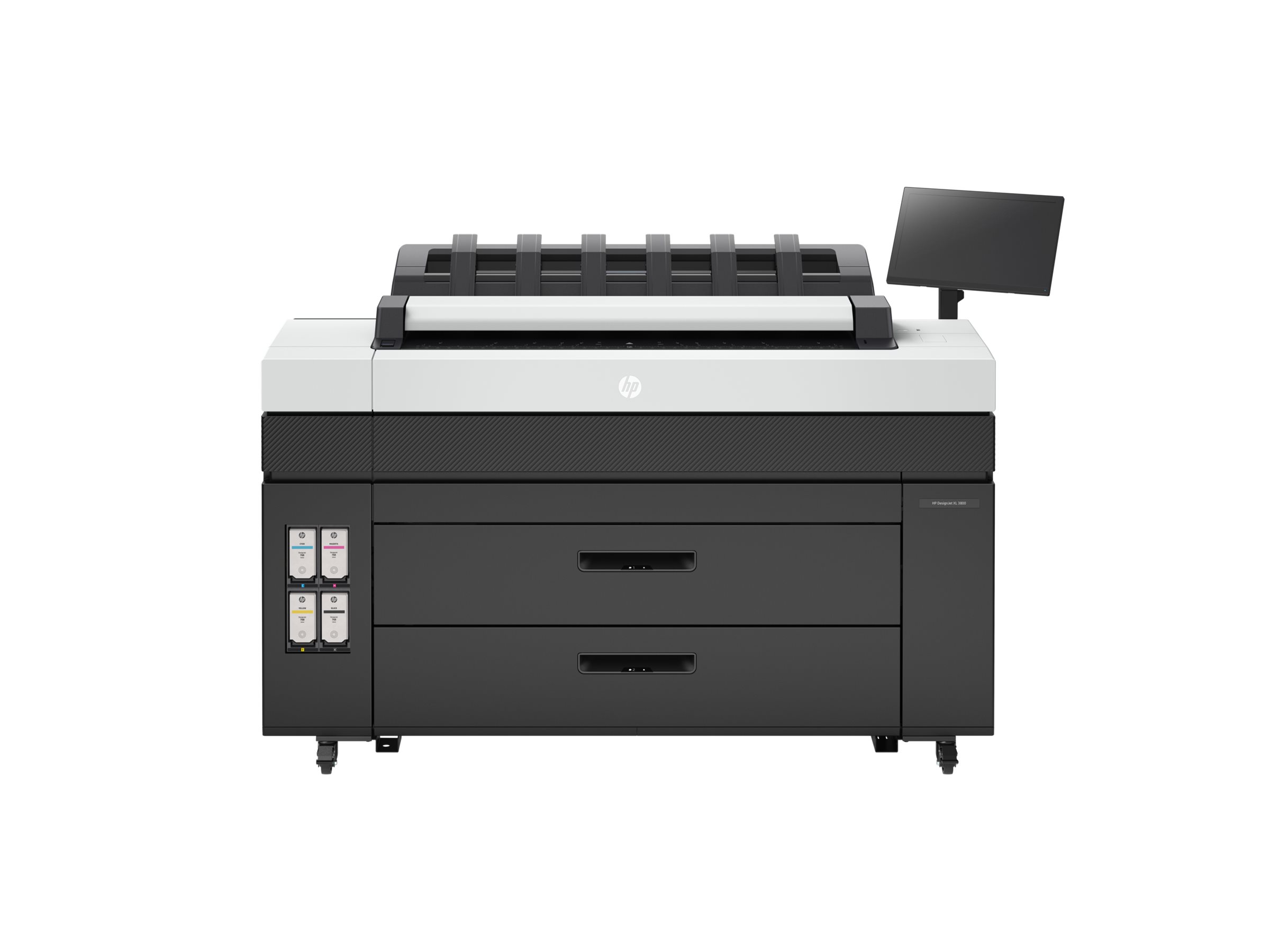

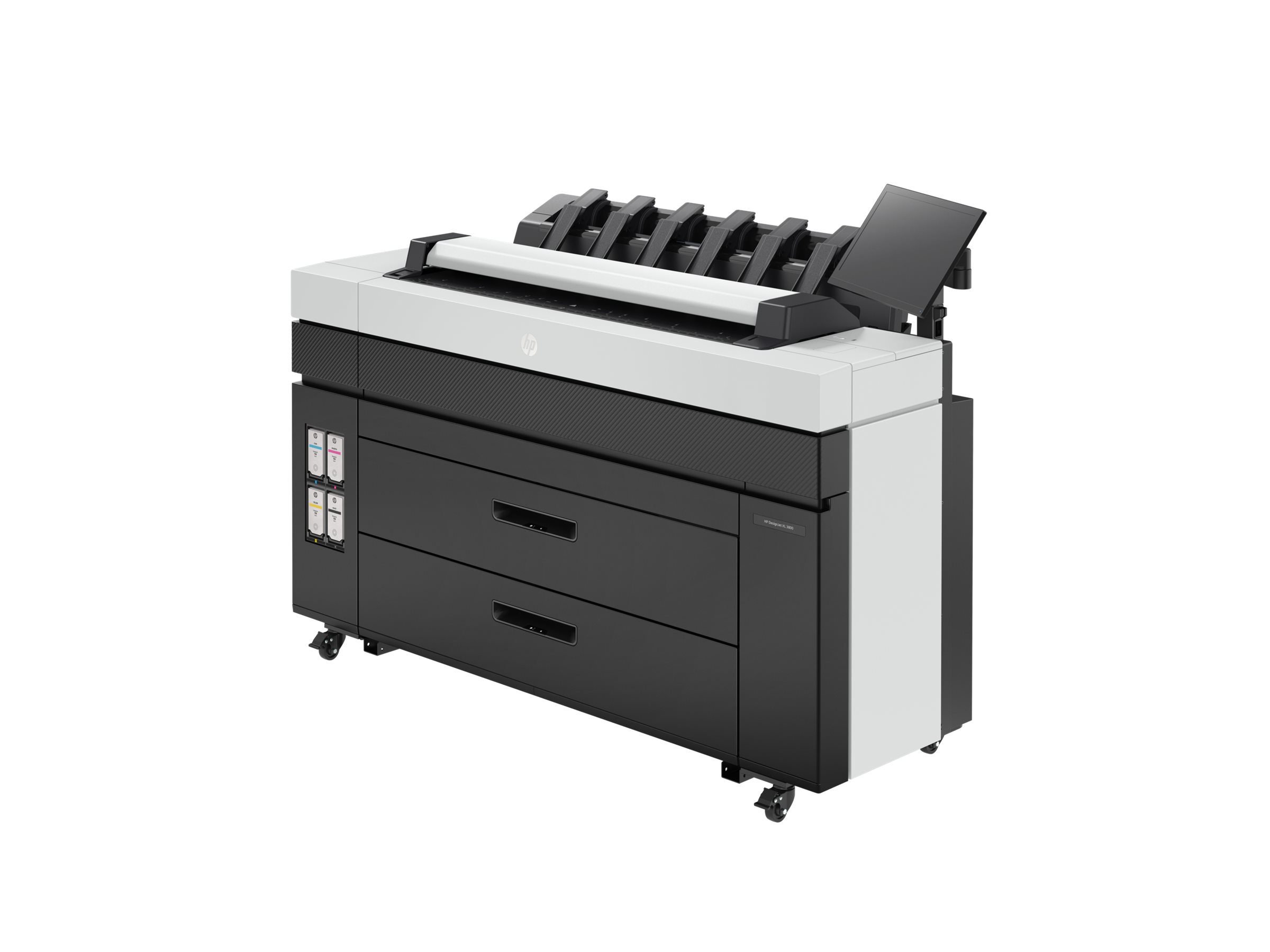

HP DesignJet XL 3800 – 36″ multifunction printer – colour – ink-jet – 914 x 8000 mm (original) – Roll (91.4 cm x 200 m) (media) – up to 0.167 min/page (printing) – 2 rolls – Gigabit LAN

Manufacturer:HP
Part Number:7QR88B
Warranty:12 Months
PPID:AB33244

$28,930.76 inc GST

Free Delivery

Available on back-order

Out of Stock! Contact us for a lead time or ETA

Ships from Auckland

Ships from Auckland

  • Allow 1-2 days for delivery to the North Island
  • Allow 2-3 days for delivery to the South Island
  • add 1-2 days if you are rural
  • Collection can be arranged

Description

Main Specifications

Product DescriptionHP DesignJet XL 3800 – multifunction printer – colour
Device Type36″ multifunction printer
Printing TechnologyInk-jet (colour)
Inkjet TechnologyHP Thermal Inkjet – 4-ink
Max Printing SpeedUp to 0.167 min/page (mono) / up to 0.167 min/page (colour)
Max Printing ResolutionUp to 2400 x 1200 dpi (mono) / up to 2400 x 1200 dpi (colour)
Scanning600 x 600 dpi
Original Size210 x 297 mm (min) – 914 x 8000 mm (max)
Media SizeRoll (91.4 cm x 200 m) (max)
Media TypeCoated paper, satin photo paper, heavy-weight coated paper, matte film, polypropylene paper
Standard Media Capacity2 rolls
StackerIncluded
Connection AvailabilityYes
InterfaceGigabit LAN
AirPrint EnabledYes
Office Machine FeaturesPrint from USB flash drive, Hard Disk Drive Encryption, save to network folder, automatic cutter, Trusted Platform Module (TPM), print from e-mail, IPP printing, 15 kg max roll weight
PowerAC 120/230 V (50/60Hz)
Dimensions (WxDxH)160.3 cm x 61.4 cm x 122.5 cm
Weight182 kg
Environmental StandardsENERGY STAR Qualified

Extended Specifications

Document & Media Handling

Max Media SizeOther
Min Media Weight60 g/m²
Max Media Weight328 g/m²
Media Thickness RangeUp to 0.8 mm
Supported Media TypeCoated paper, satin photo paper, heavy-weight coated paper, matte film, polypropylene paper
Supported Media SizesRoll (91.4 cm x 200 m)
Standard Media Capacity2 rolls
Document & Media Handling DetailsInput tray – 2 rolls
Stacker – 100 sheets
Speed DetailsPrinting: 10 sec (A1)
Copying: up to 360 inch/min – colour
Copying: up to 600 inch/min – B/W
Copying: up to 152.4 mm/sec – colour
Copying: up to 254 mm/sec – B/W
Scanning: up to 180 inch/min – colour
Scanning: up to 600 inch/min – B/W
Scanning: up to 76.2 mm/sec – colour
Scanning: up to 254 mm/sec – B/W

Finishing Equipment

StackerIncluded

Connections

Interfaces1 x Gigabit LAN – RJ-45
Security Protocols & FeaturesKerberos, LDAP, SSL, Apple Bonjour, LEAP, SMB authentication, TLS, IPsec, 802.1x, AES-256, EAP-TLS, PEAP, SNMP 3, SNMP 1, SNMP 2
Software IncludedHP Web Jetadmin, HP Click, HP Security Manager, HP Easy Start, HP Print Scan Doctor, HP Wolf Security, HP Command Center

Power

Voltage RequiredAC 120/230 V (50/60Hz)
Power Consumption Operational220 Watt
Power Consumption Standby50 Watt
Power Consumption Sleep2.2 Watt

Miscellaneous

Included AccessoriesScanner calibration sheet, basket, control panel, monitor arm
Consumables Included1 x ink cartridge (black) – HP 768
1 x ink cartridge (cyan) – HP 768
1 x ink cartridge (magenta) – HP 768
1 x ink cartridge (yellow) – HP 768
1 x printhead – HP 769
1 x maintenance cartridge
6 x printhead
Compliant StandardsFCC Class A certified, CSA, CCC, PSB, IRAM, RoHS, WEEE, REACH, ICES Class A, KCC Class A, ERP, EMC Class A, VCCI Class A, CCC Class A, BIS, ACMA, UA, EN 62368-1, RSM, EU Low Voltage Directive, EAC (Belarus, Kazakhstan, Russia), NYCE, UL ECOLOGO certified inks

Environmental Standards

ENERGY STAR CertifiedYes

Manufacturer Warranty

Service & SupportLimited warranty – 3 years

Dimensions & Weight

Width160.3 cm
Depth61.4 cm
Height122.5 cm
Weight182 kg

Dimensions & Weight (Shipping)

Shipping Width170.5 cm
Shipping Depth76.6 cm
Shipping Height126.5 cm
Shipping Weight230 kg

Environmental Parameters

Sound Emission30 dBA (idle) / 50 dBA (operating)
Min Operating Temperature5 °C
Max Operating Temperature40 °C
Humidity Range Operating20 – 80% RH

General

Device Type36″ multifunction printer
Printing TechnologyInk-jet – colour
Connection AvailabilityYes
InterfaceGigabit LAN
AirPrint EnabledYes
Office Machine FeaturesPrint from USB flash drive, Hard Disk Drive Encryption, save to network folder, automatic cutter, Trusted Platform Module (TPM), print from e-mail, IPP printing, 15 kg max roll weight

Memory

Standard Memory128 GB
Hard Disk Drive256 GB

Copying

Max Document Enlargement400%
Max Document Reduction25%

Printing

Inkjet TechnologyHP Thermal Inkjet
Max Printing ResolutionUp to 2400 x 1200 dpi (mono) / up to 2400 x 1200 dpi (colour)
Max Printing SpeedUp to 0.167 min/page (mono) / up to 0.167 min/page (colour)
Ink Cartridge Configuration4 cartridges (1 each: pigment cyan, pigment magenta, pigment yellow, pigment black)
Ink Palette Supported (Colours)Pigment cyan, pigment magenta, pigment yellow, pigment black
Colour4-ink
Printer Drivers / EmulationsPDF 1.7, TIFF, HPGL/2, HP-RTL, CALS G4, JPEG
First Print Out Time B/W20 sec
First Print Out Time Colour20 sec

Scanning

Scan ElementCIS
Optical Resolution600 x 600 dpi

Document & Media Handling

Min Original Size210 x 297 mm
Max Original Size914 x 8000 mm

Additional information

Manufacturer
