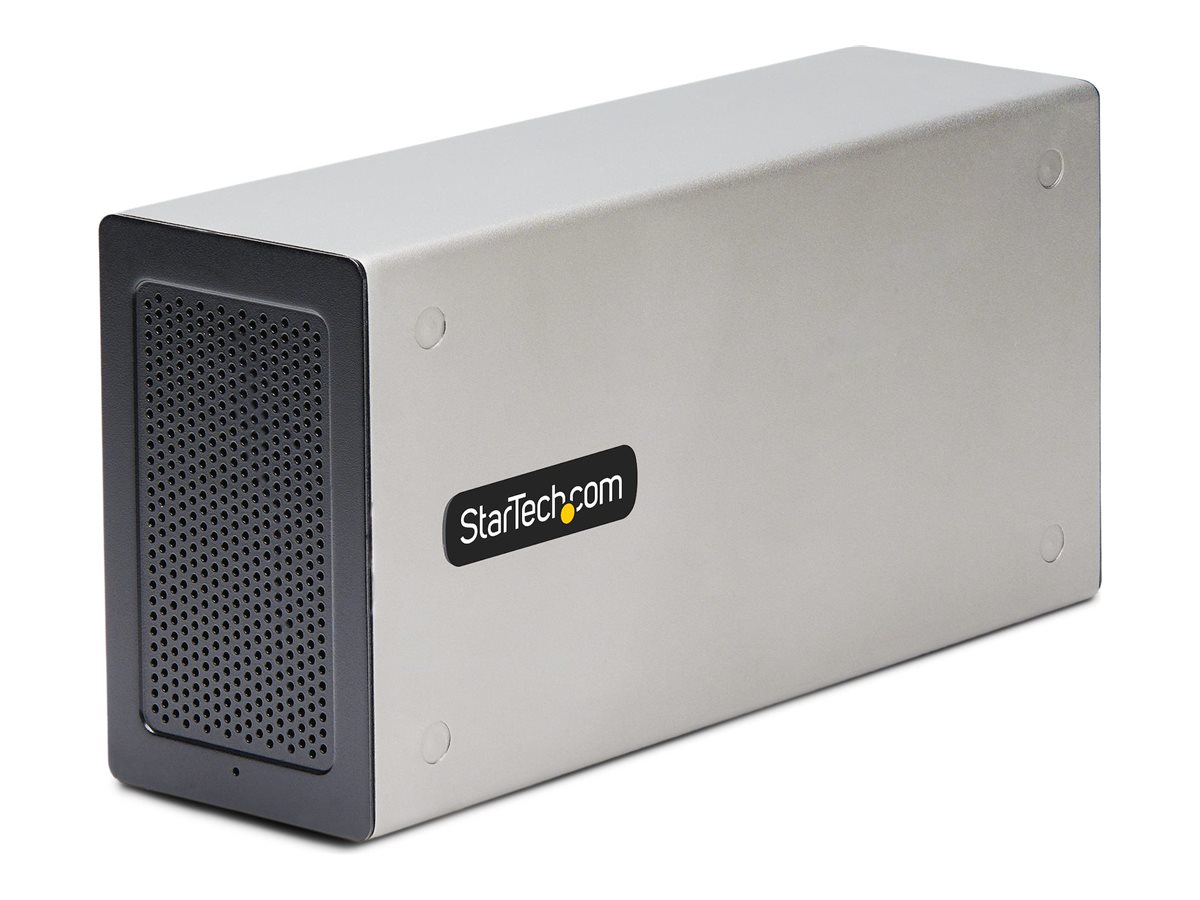

StarTech.com Thunderbolt 3 PCIe Expansion Chassis, Enclosure Box W/Dual PCI-E Slots, External PCIe Slots for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 Ports – For PCI Express Cards (2TBT3-PCIE-ENCLOSURE) – System bus extender – DP – 120 Watt – TAA Compliant

Manufacturer:StarTech.com
Part Number:2TBT3-PCIE-ENCLOSURE
Warranty:2 Years
PPID:AB31946

$1,197.76 inc GST

Free Delivery

Available on back-order

Out of Stock! Contact us for a lead time or ETA

Ships from Auckland

Ships from Auckland

  • Allow 1-2 days for delivery to the North Island
  • Allow 2-3 days for delivery to the South Island
  • add 1-2 days if you are rural
  • Collection can be arranged

Description

Main Specifications

Product DescriptionStarTech.com Thunderbolt 3 PCIe Expansion Chassis, Enclosure Box W/Dual PCI-E Slots, External PCIe Slots for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 Ports – For PCI Express Cards (2TBT3-PCIE-ENCLOSURE) – system bus extender – DP – TAA Compliant
Product TypeSystem bus extender
Video InterfacesDP
Dimensions (WxDxH)28.1 cm x 8.4 cm x 14.2 cm
Weight1.6 kg
ColourBlack
PowerPower adapter AC 100-240 V 120 Watt Power Provided
TAA CompliantYes

Extended Specifications

General

Product TypeSystem bus extender
Width28.1 cm
Depth8.4 cm
Height14.2 cm
Weight1.6 kg
Enclosure ColourBlack

Expansion / Connectivity

Expansion Slots2 (total) / 2 (free) x PCI Express 3.0 x16
2 (total) / 2 (free) x 15-pin SATA power plug
Interfaces2 x Thunderbolt 3 – 24 pin USB-C
1 x display / video – DisplayPort – 20 pin DisplayPort

Miscellaneous

Cables Included1 x Thunderbolt cable – external – 1 m
Included AccessoriesPower adapter, Thunderbolt cable (1m), foot-pad set
FeaturesLED indicator, 60 mm cooling fan, 40 Gbps Thunderbolt bandwidth, Titan Ridge DSL7440 chipset, Ti TPS65983B chipset
Compliant StandardsRoHS, WEEE, DisplayPort 1.4, Thunderbolt 3
TAA CompliantYes

Power

Power DevicePower adapter
Voltage RequiredAC 100-240 V
Power Provided120 Watt

System Requirements

OS RequiredApple MacOS, Linux, Microsoft Windows

Dimensions & Weight (Shipping)

Shipping Width35.3 cm
Shipping Depth28.5 cm
Shipping Height14.3 cm
Shipping Weight3.4 kg

Environmental Parameters

Min Operating Temperature5 °C
Max Operating Temperature65 °C
